Tractor · 1957Unverified

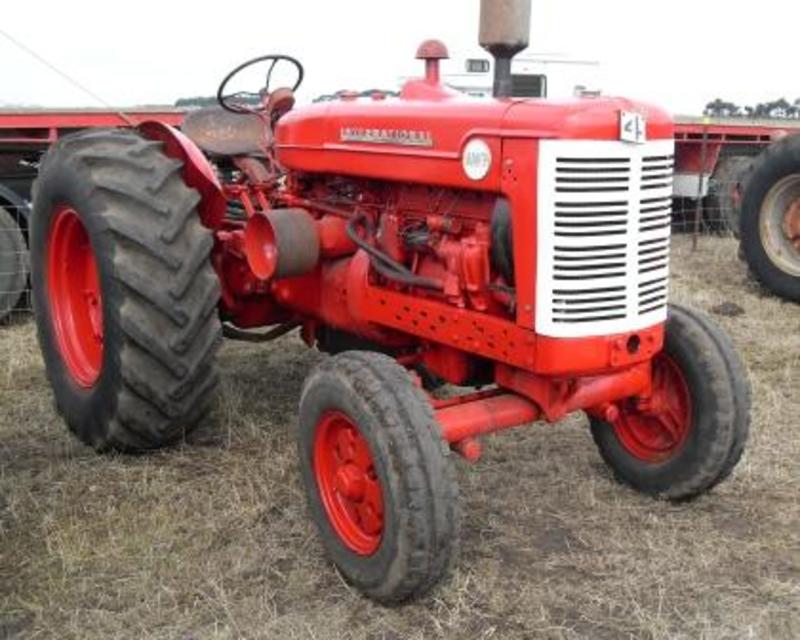

Farmall AM-7
Farmall AM-7 — Row-Crop tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3084 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Two-wheel driveReference
Open operator station.Reference
Variants
AW-7standard-treadReference
Engine
International Harvester 4.3L 4-cyl keroseneReference
International Harvester 4.3L 4-cyl dieselReference
Kerosene Drawbar (claimed)27.4 kWReference
Diesel Drawbar (claimed)33.3 kWReference
Kerosene Belt (claimed)30.6 kWReference
Diesel Belt (claimed)36.4 kWReference
International HarvesterReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Compression5.07:1Reference
Rated RPM1450Reference
Starter volts6Reference
dieselReference
Compression16.5:1Reference
Starter volts12Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Pressure55.2 barReference
Pump flow26.5 lpmReference
Rear TypeIIReference
Rear PTO Type540Reference
Dimensions
Wheelbase224 cmReference
Weight3084 kgReference
Front tire6.00x16Reference
Rear tire12x38Reference
Ag front6.00x16Reference
Ag rear12x38Reference
Length337 cmReference
Width256 cmReference
Ground clearance67 cmReference
Rear tread132 to 254 cmReference
AM-7 Serial Numbers
1957972 (kerosene)Reference
19581673 (kerosene)Reference
19593035 (kerosene)Reference
Final4168 (kerosene)Reference
19571067 (diesel)Reference
19581675 (diesel)Reference
19592901 (diesel)Reference
Final4939 (diesel)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
