Tractor · 1939Unverified

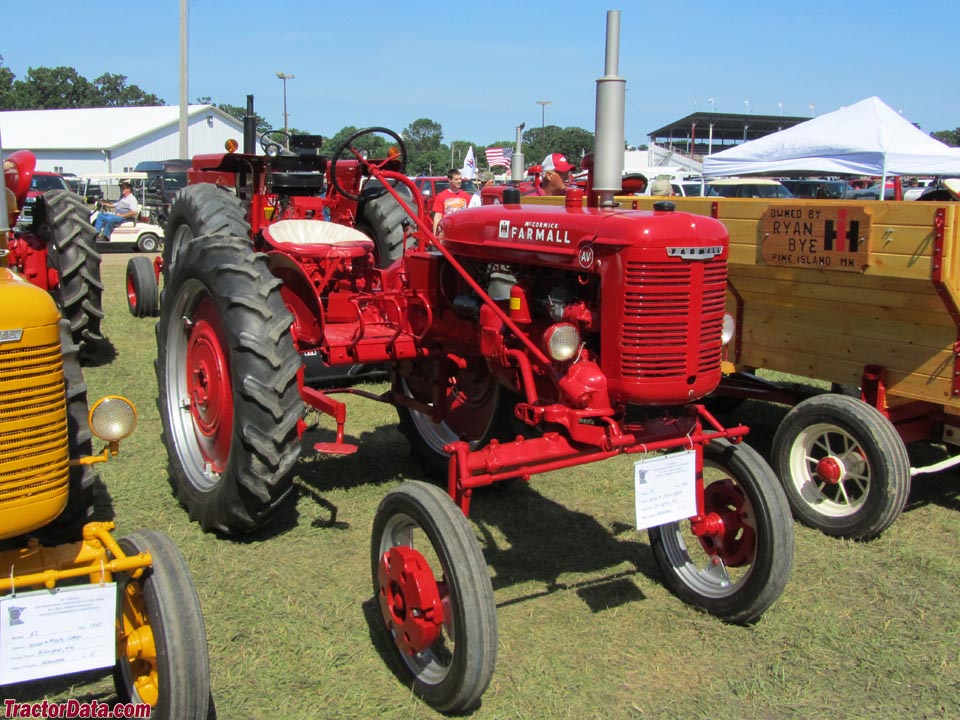

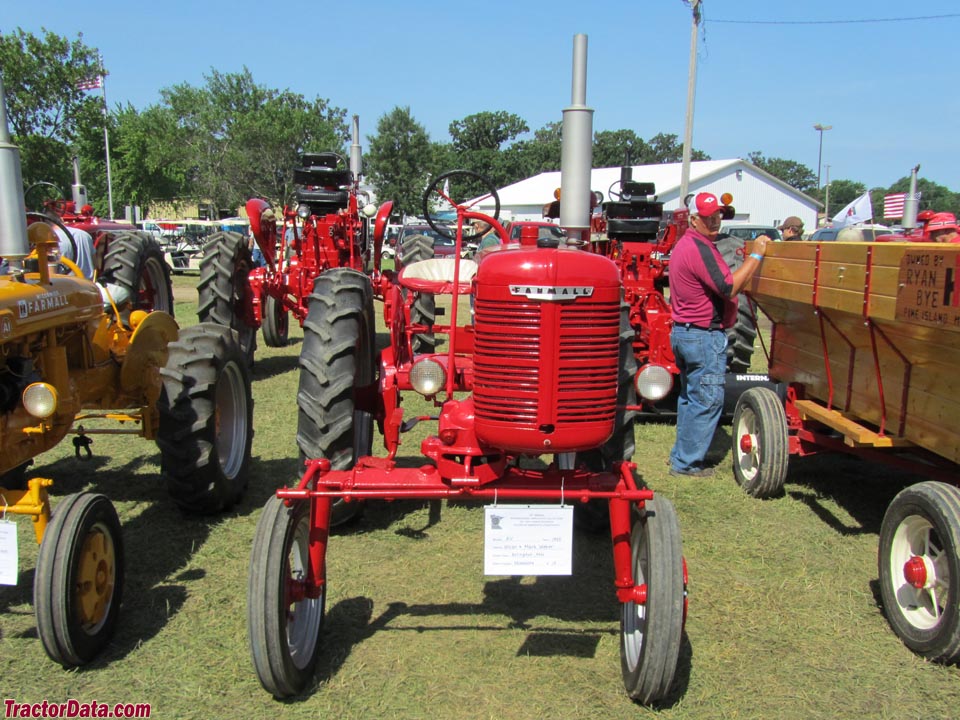

Farmall AV
Farmall AV — High-Clearance tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1088 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
FactoriesChicago, Illinois, USAReference
FactoriesLouisville, Kentucky, USAReference
Two-wheel driveReference
Manual steeringReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
Arow-cropReference
AIInternational industrialReference
Engine
International Harvester 1.9L 4-cyl gasolineReference
International Harvester 1.9L 4-cyl keroseneReference
Fuel tank37.9 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)12.7 kWReference
Belt (claimed)14.2 kWReference
Plows1Reference
International Harvester C113Reference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.9 LReference
Bore/Stroke76 x 102 mmReference
Compression6.0:1Reference
Rated RPM1400Reference
Idle RPM900-1400Reference
Firing order1-3-4-2Reference
StartermanualReference
StarterelectricReference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity12.3 LReference
International HarvesterReference
keroseneReference
liquid-cooledReference
Transmission
4-speed gearReference
ManufacturerInternational HarvesterReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch9-inch dry discReference
Oil capacity3.8 LReference
Oil capacity4.7 LReference
PTO & Hydraulics
TypeIH Pneumatic Lift-AllReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.125)Reference
Dimensions
Weight1088 kgReference
Front tire4.00-19Reference
Rear tire8-36Reference
Ag front4.00-19Reference
Ag rear8-36Reference
Ag front9-36Reference
Length292 cmReference
Width153 cmReference
Height (steering wheel)179 cmReference
Height (exhaust)224 cmReference
Clearance (front axle)68 cmReference
Clearance (rear axle)69 cmReference
Front tread111 to 172 cmReference
Rear tread121 to 172 cmReference
AV Serial Number Location

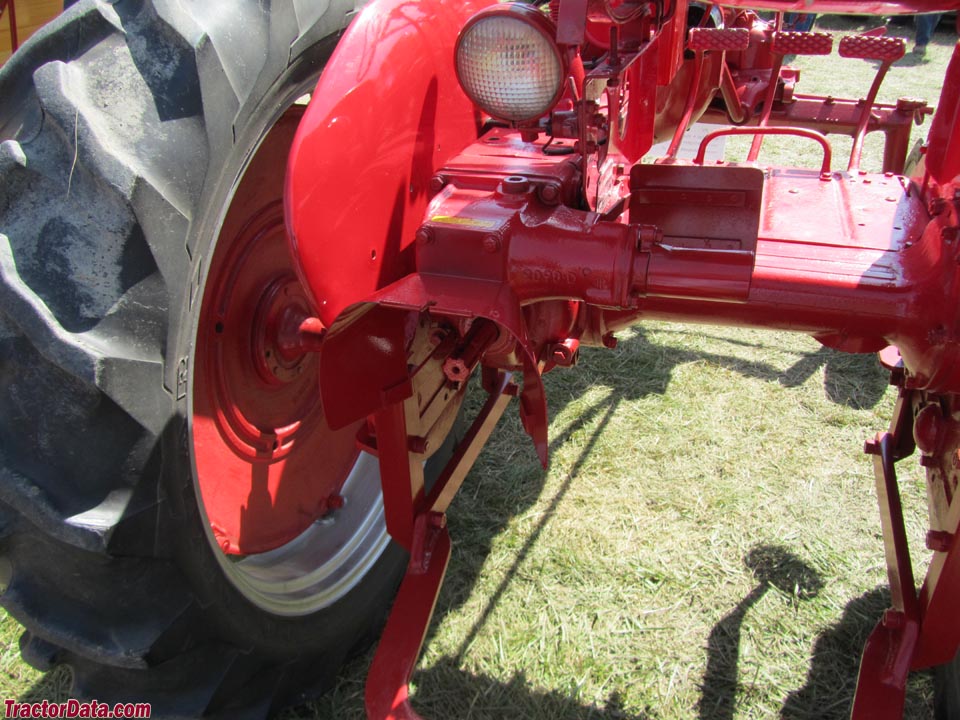

Serial number plate on the Farmall AV seat support bracket.Reference
AV Serial Numbers
1939501Reference
19406744Reference
194141500Reference
194280739Reference
194496390Reference
1945113218Reference
1946146700Reference
1947182964 (Chicago)Reference
End198298 (Chicago)Reference
1947200001 (Louisville)Reference
End220829 (Louisville)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter21 cmReference
Width15 cmReference
RPM1157Reference
Speed784.56 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
Speeds
With 9-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
