Tractor · 1959Unverified

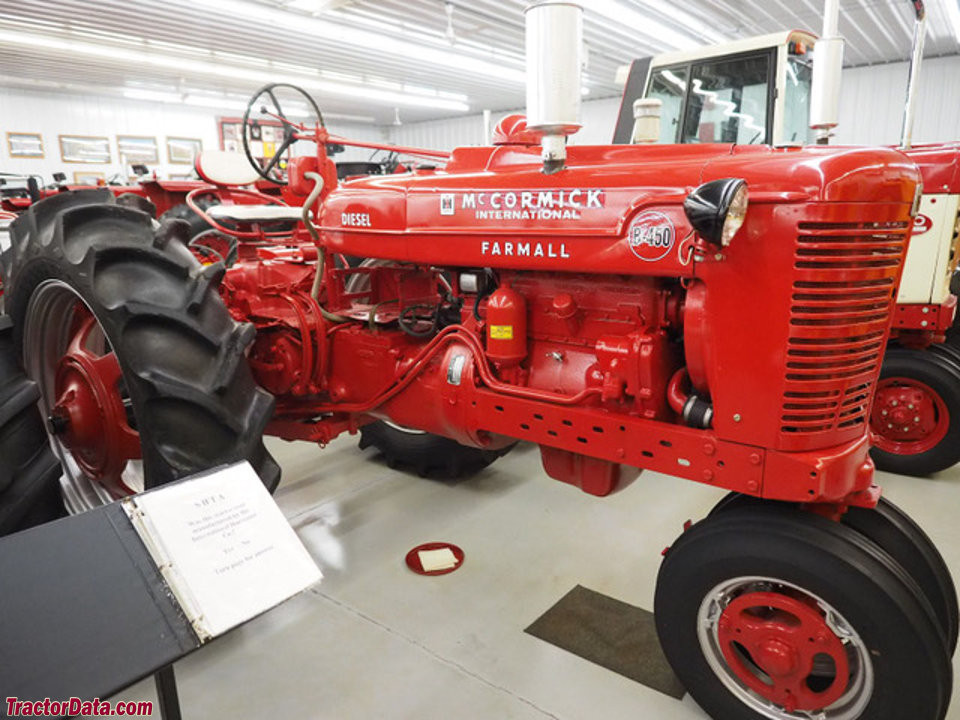

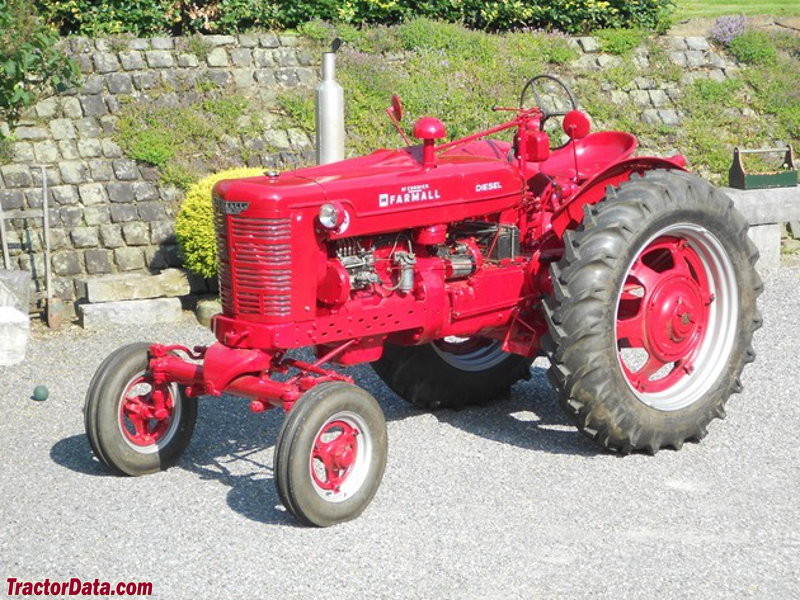

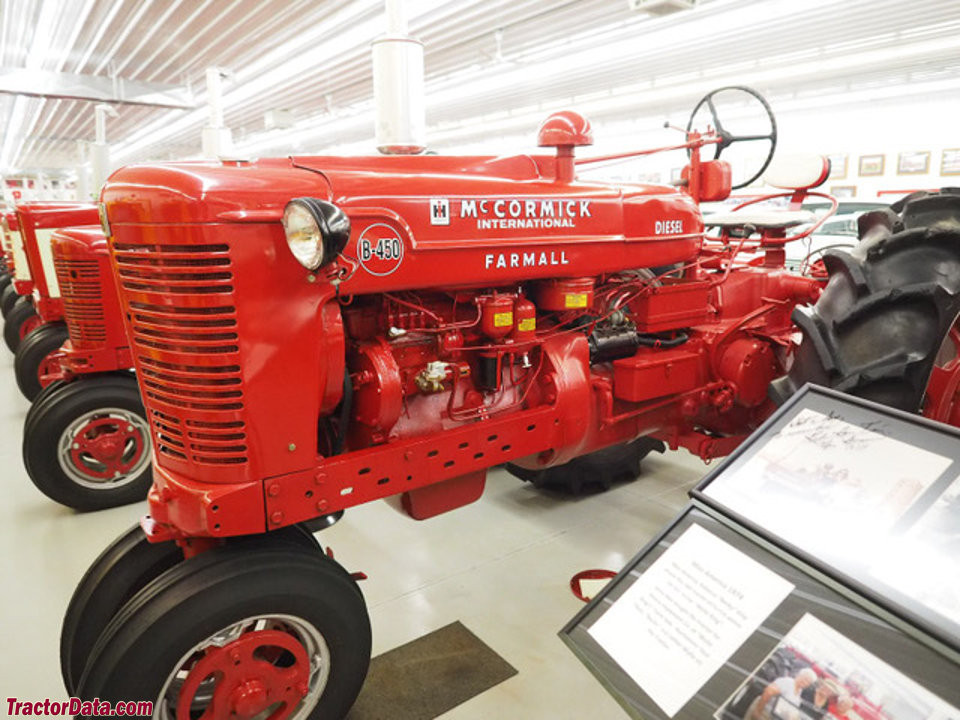

Farmall B-450

Name: Farmall B-450
Brand: Farmall

Farmall B-450 — Row-Crop tractor · 55 hp. Reference specifications; pending source verification.

The Farmall B-450 is a compact tractor model, rated at 55 hp, produced from 1959 to 1970. It features a 4-cylinder diesel liquid-cooled engine, which powers two-wheel drive via a 5-speed gearbox. The listed weight of the Farmall B-450 is 2689 kg, making it suitable for tasks such as working on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

2689 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

55 hp

Recorded weight

2689 kg

Transmissions

5-speed gear

Production years

1959-1970

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFarmall (a part of International Harvester)Reference

Row-Crop tractorReference

Built in Doncaster, EnglandReference

Total built11,011Reference

Two-wheel driveReference

Differential lockmechanical rearReference

Manual steeringReference

Open operator station.Reference

Variants

McCormick B-450standardReference

Farmall B-450row-cropReference

Engine

International Harvester 4.3L 4-cyl dieselReference

Engine41.0 kWReference

International Harvester BD-264Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.3 LReference

Bore/Stroke102 x 133 mmReference

Power41.0 kWReference

Rated RPM1500Reference

Torque271.2 NmReference

Torque RPM1100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.1 LReference

Coolant capacity25.0 LReference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Clutch305mm dry discReference

Oil capacity50.0 LReference

Capacities

Fuel79.1 LReference

Diameter27 cmReference

RPM929.6Reference

Speed815.95 meters/minReference

PTO & Hydraulics

Hydraulic system13.6 LReference

Typeopen centerReference

Capacity13.6 LReference

Pressure137.9 barReference

Rear TypeIIReference

Rear lift2830 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM555@1500Reference

Dimensions

Wheelbase201 cmReference

Weight2689 kgReference

Front tire6.00x16Reference

Rear tire13.00x30Reference

Ag front6.00x16Reference

Ag rear13.00x30Reference

Ag rear14.00x30Reference

Ag rear12.00x38Reference

Length354 cmReference

Length367 cmReference

Height (steering wheel)197 cmReference

Operating weight2689 kgReference

Clearance (front axle)49 cmReference

Front tread20/29/34/42 cmReference

Front tread129 to 205 cmReference

Rear tread162 to 213 cmReference

Rear tread214 to 257 cmReference

Rear tread245 to 287 cmReference

B-450 Serial Numbers

1959501Reference

1960657Reference

19611980Reference

19623047Reference

19635638Reference

19646919Reference

19658042Reference

19669696Reference

196710380Reference

196810764Reference

196911027Reference

197011162Reference

FAQ: How to read a serial number table.Reference

Speeds

With 13.00x30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
