Tractor · 1932Unverified

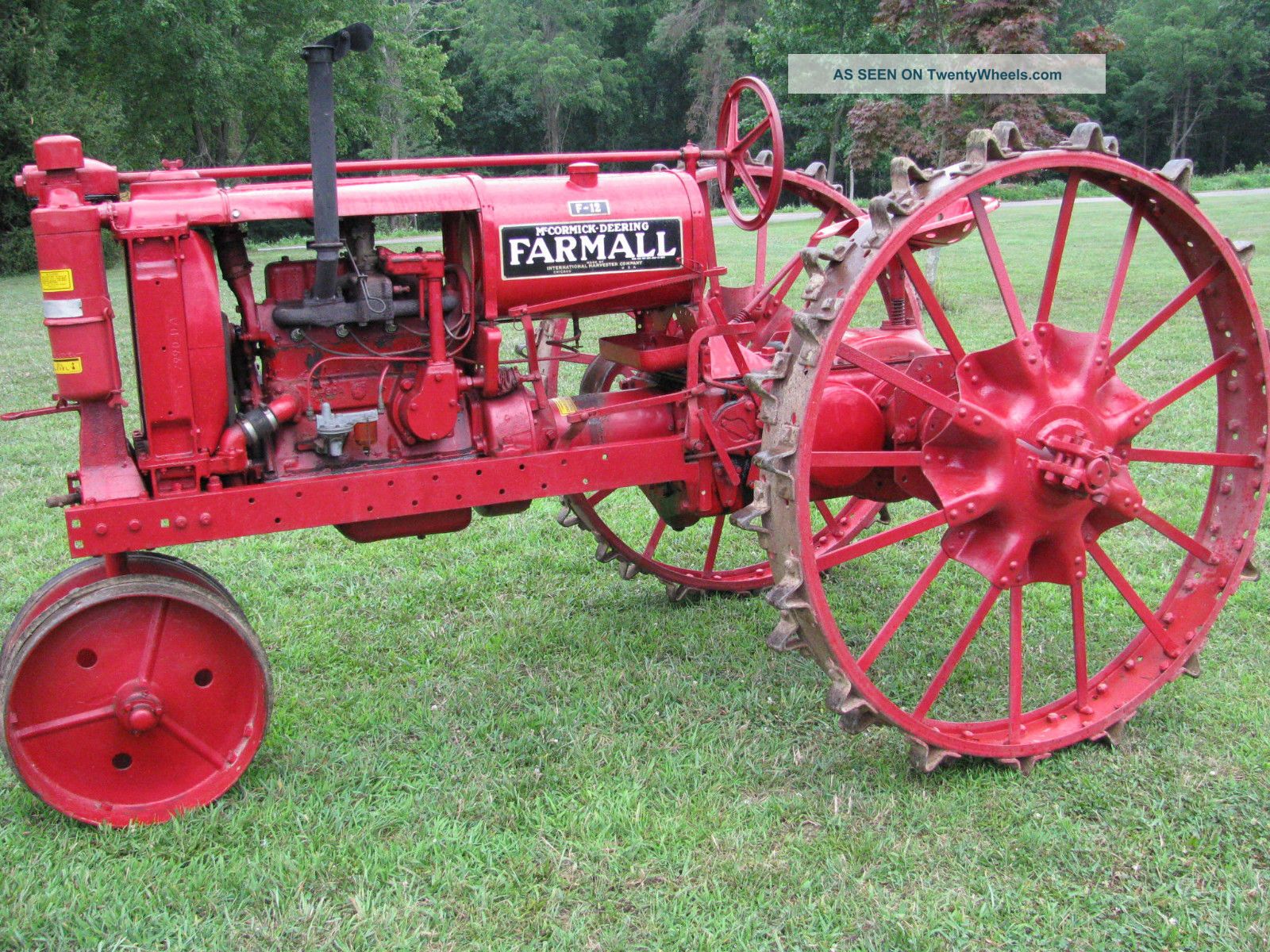

Farmall F-12
Farmall F-12 · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Max power
9.2 kW
Weight
1224 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
FactoriesChicago, Illinois, USAReference
FactoriesNeuss, GermanyReference
Total built123,442 USAReference
Total built2,848 GermanyReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
F-12-GGerman-builtReference
F-12-G4German-built, four-speedReference
W-12McCormick standard-frontReference
Engine
International Harvester 1.9L 4-cyl gasolineReference
Waukesha 1.9L 4-cyl gasolineReference
Fuel tank49.2 LReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)9.7 kWReference
Plows1Reference
Drawbar (tested)9.2 kWReference
Belt (tested)12.1 kWReference
International HarvesterReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement1.9 LReference
Bore/Stroke76 x 102 mmReference
Air cleaneroil bathReference
Rated RPM1400Reference
Firing order1-3-4-2Reference
Coolant capacity13.2 LReference
WaukeshaReference
liquid-cooledReference
Original engine, used on early modelsReference
Displacement1.9 LReference
Belt power (max)12.1 kWReference
Max power9.2 kWReference
Belt power (max)10.9 kWReference
Max power8.8 kWReference
Transmission
3-speed unsynchronized gearReference
4-speedReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.125)Reference
Dimensions
Wheelbase193 cmReference
Weight1224 kgReference
Front tire23x6Reference
Rear tire54x6Reference
Ag front23x6 (steel)Reference
Ag rear54x6 (steel)Reference
Length318 cmReference
Width188 cmReference
Height158 cmReference
Shipping weight1224 kgReference
Rear tread111 to 200 cmReference
F-12 Serial Numbers
Location:Serial number plate ahead of the gear shift, below the steering column.Reference
1932501 (Chicago)Reference
1933526 (Chicago)Reference
19344881 (Chicago)Reference
193517411 (Chicago)Reference
193648660 (Chicago)Reference
193781837 (Chicago)Reference
1938117518 (Chicago)Reference
Final123942 (Chicago)Reference
1938NT101 (Neuss)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter31 cmReference
Width15 cmReference
RPM800Reference
Speed789.74 meters/minReference
Test results
NTTL 212: gasoline 3-speed 2WDReference
NTTL 220: kerosene 3-speed 2WDReference
Gasoline 3-speed 2WDMay 1 - 10, 1933Link: Nebraska Tractor Test 212 fileReference
Belt fuel use (max)6.4 l/hourReference
Drawbar performanceReference
Max pull848 kgReference
Kerosene 3-speed 2WDNovember 1 - 16, 1933Link: Nebraska Tractor Test 220 fileReference
Belt fuel use (max)5.7 l/hourReference
Max pull822 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
