Tractor · 1938Unverified

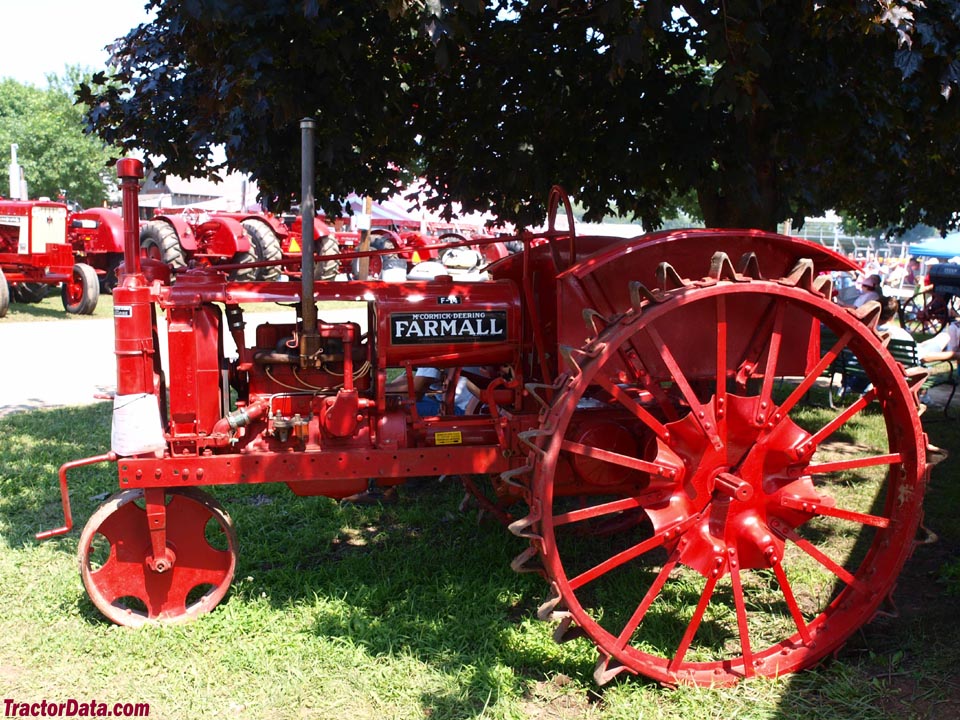

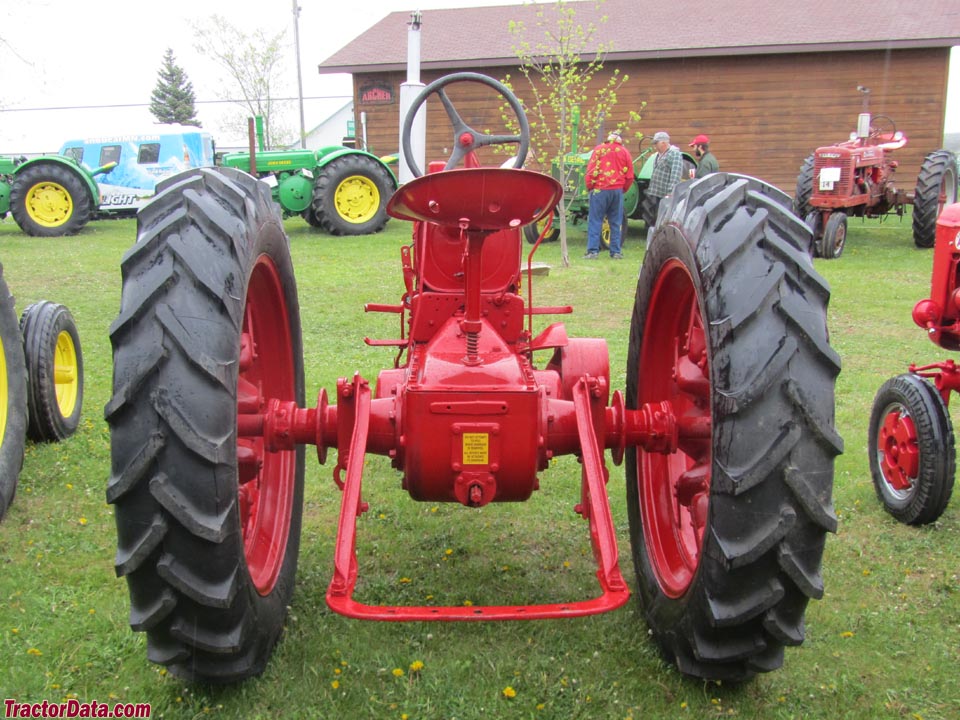

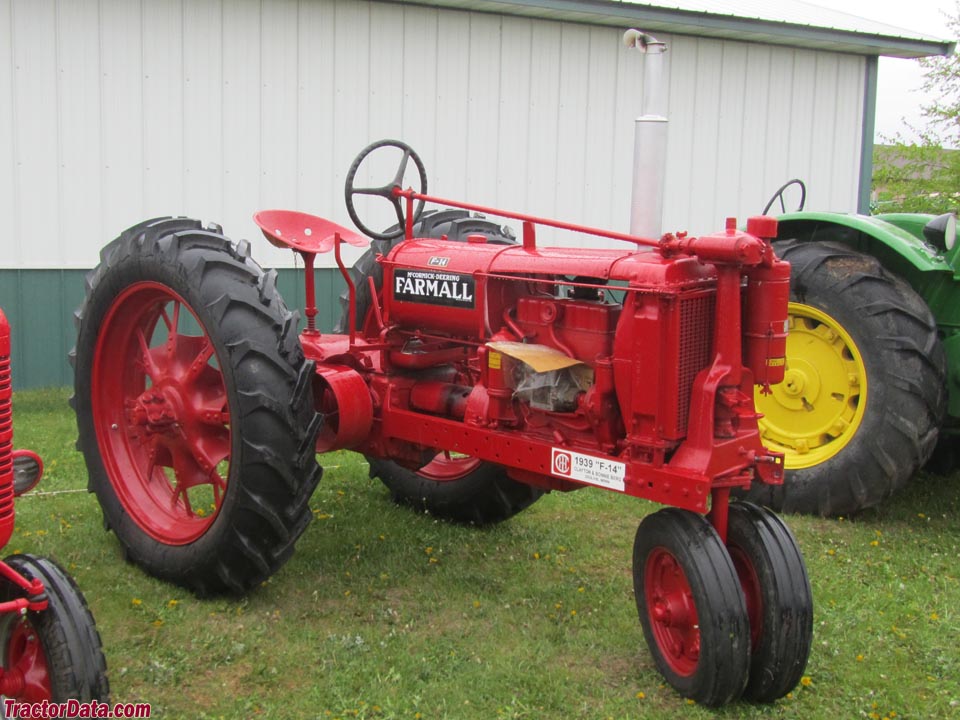

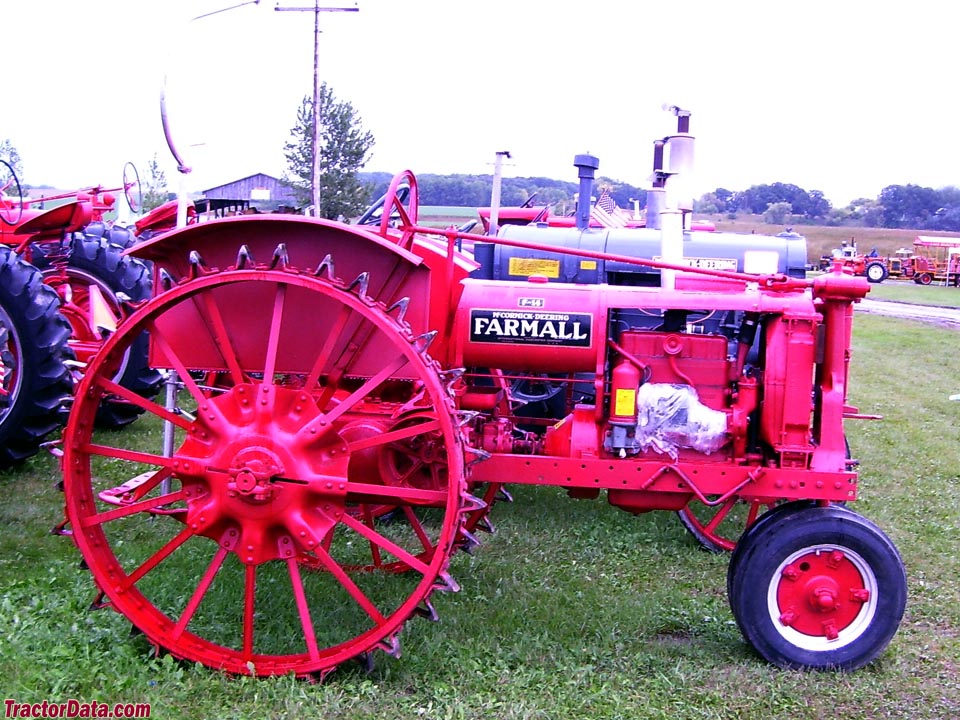

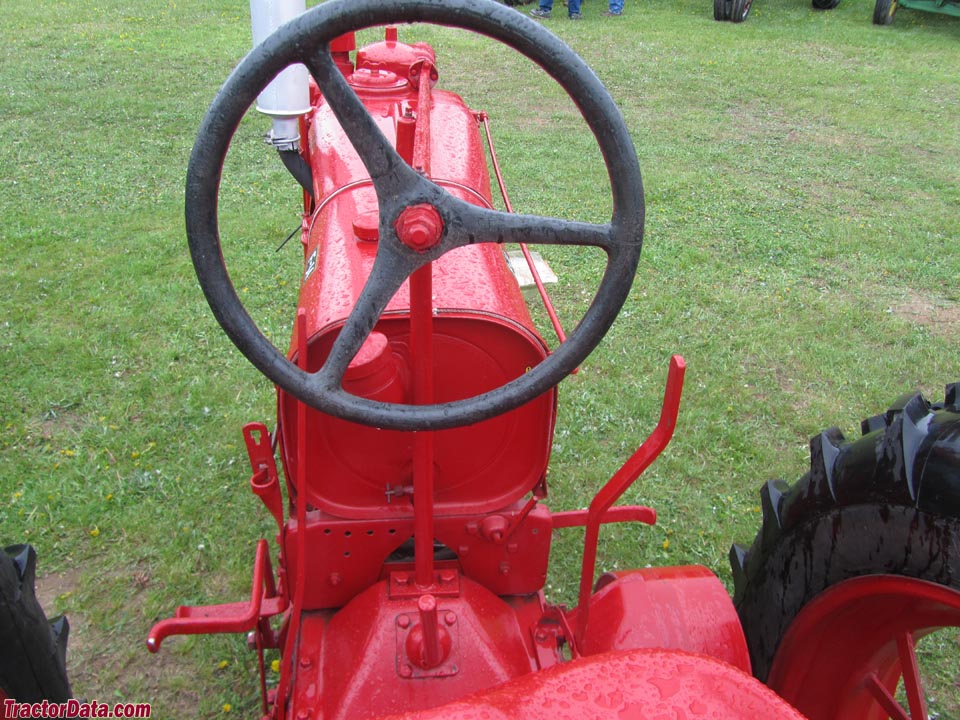

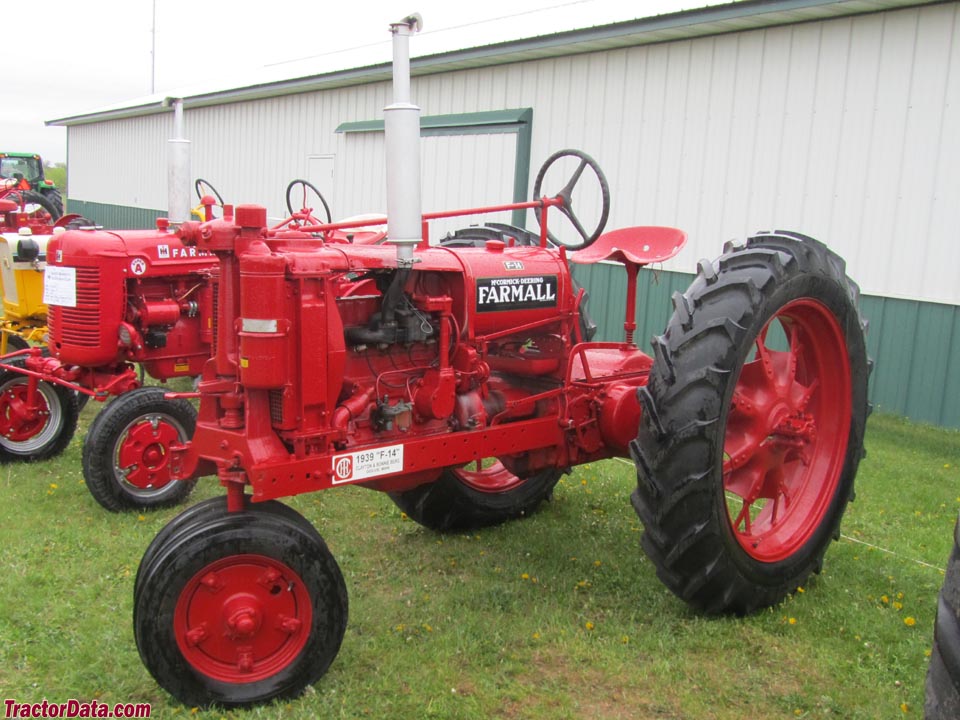

Farmall F-14
Farmall F-14 — Row-Crop tractor · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Max power
11.1 kW
Weight
1224 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
FactoriesChicago, Illinois, USAReference
FactoriesRock Island, Illinois, USAReference
Total built27,401Reference
Two-wheel driveReference
Open operator station.Reference
Variants
W-14McCormick standard-tread versionReference
Engine
International Harvester 1.9L 4-cyl gasolineReference
Fuel tank49.2 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)11.2 kWReference
Plows1Reference
Drawbar (tested)11.1 kWReference
Belt (tested)13.0 kWReference
International HarvesterReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement1.9 LReference
Bore/Stroke76 x 102 mmReference
Rated RPM1650Reference
Firing order1-3-4-2Reference
Starter typehand-crankReference
Coolant capacity13.2 LReference
Belt power (max)13.0 kWReference
Max power11.1 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight1224 kgReference
Front tire22.50x4Reference
Rear tire54x6Reference
Ag front22.50x4 (steel)Reference
Ag rear54x6 (steel)Reference
Ag front5.00x15Reference
Ag rear9.00x40Reference
Length316 cmReference
Width111 cmReference
Height177 cmReference
F-14 Serial Number Location
Below front end of fuel tank, above clutch housing.Reference
F-14 Serial Numbers
1938FS124000Reference
1939FS139607Reference
FinalFS155902Reference
FAQ: How to read a serial number table.Reference
Test results
Distillate 3-speed 2WDApril 19 - 27, 1938Link: Nebraska Tractor Test 297 fileReference
Belt fuel use (max)6.4 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull1074 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
