Tractor · 1942Unverified

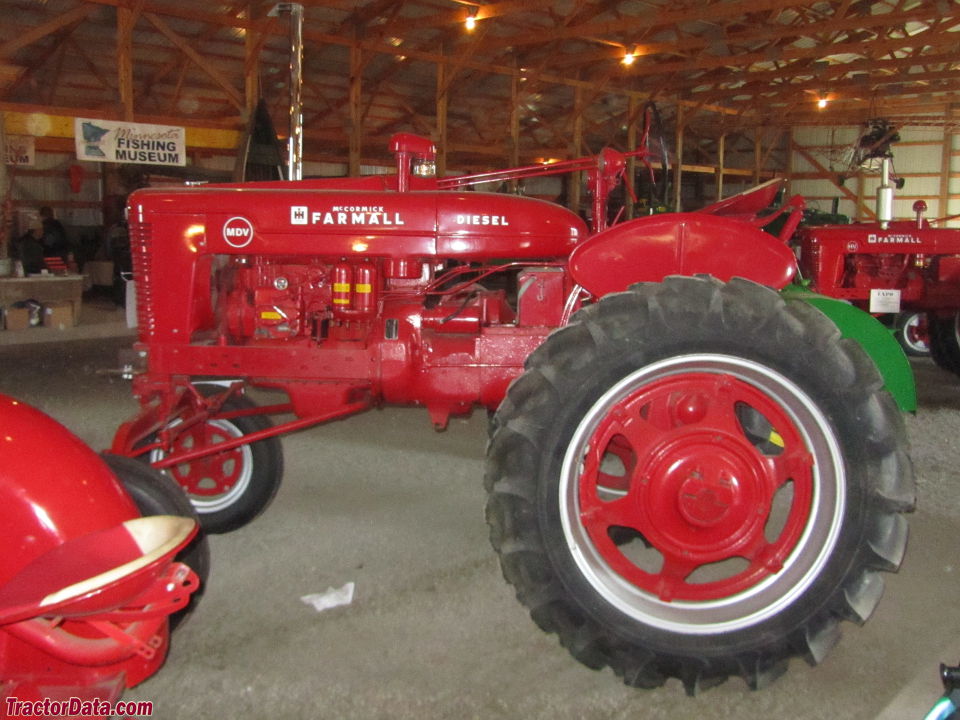

Farmall MDV
Farmall MDV — High-Clearance tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Built in Rock Island, Illinois, USAReference
The MDV was the "vegetable", or high-clearance version of the Farmall MD.Reference
Two-wheel driveReference
Manual steeringReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
MDrow-cropReference
MVgasoline engineReference
Engine
International Harvester 4.1L 4-cyl dieselReference
Plows3 (14-inch)Reference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.1 LReference
Bore/Stroke98 x 133 mmReference
Compression16.8:1Reference
Rated RPM1450Reference
Firing order1-3-4-2Reference
Coolant capacity28.4 LReference
Transmission
5-speedReference
Transmissionsliding gearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
Rear PTO Type540Reference
Dimensions
Wheelbase237 cmReference
Front tire6.00-20Reference
Rear tire10.00-36Reference
Ag front6.00-20Reference
Ag rear10.00-36Reference
Length375 cmReference
Ground clearance74 cmReference
MDV Serial Number Location
Data plate on the left side of clutch housingReference
MDV Serial Numbers
194125371Reference
194250988Reference
194360011Reference
194467424Reference
194588085Reference
1946105564Reference
1947122823Reference
1948151708Reference
1949180514Reference
1950213579Reference
1951247518Reference
1952290923Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
