Tractor · 1942Unverified

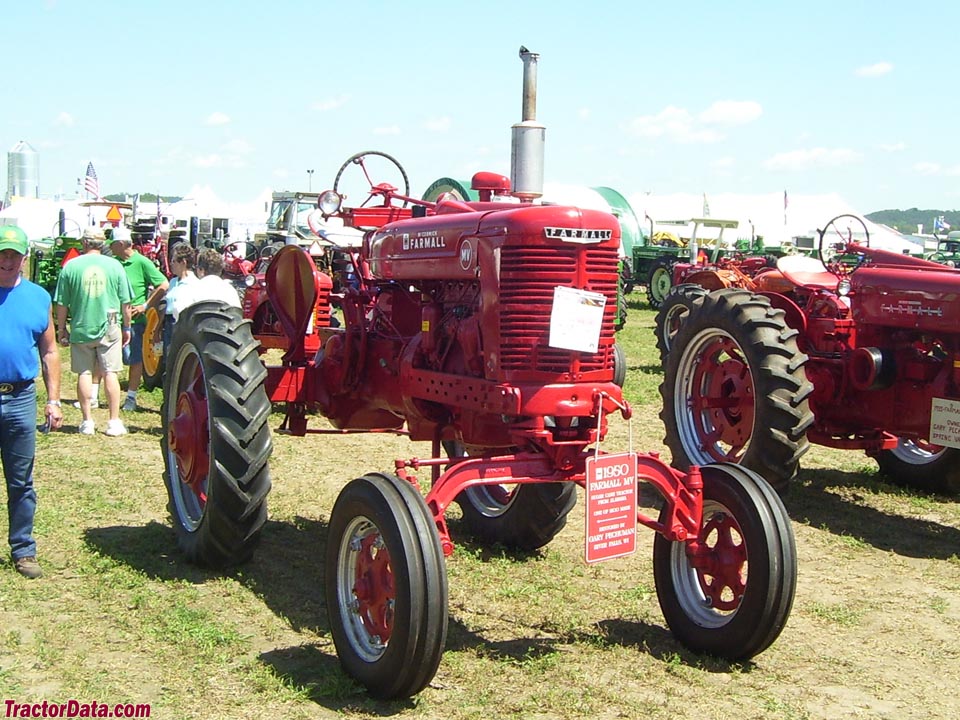

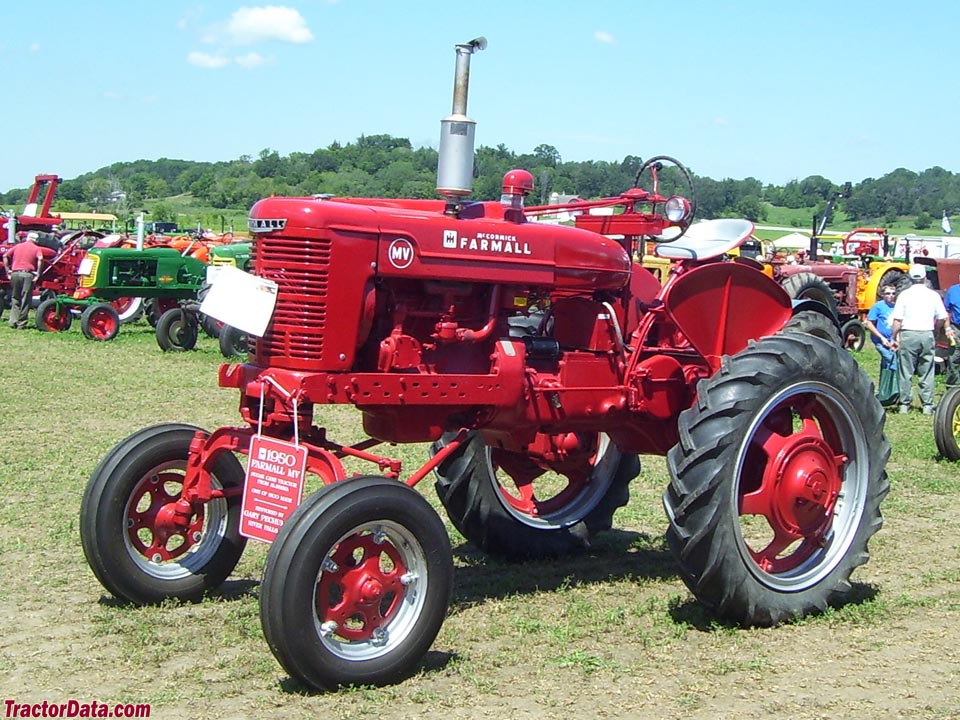

Farmall MV
Farmall MV — High-Clearance tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2203 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
Built in Rock Island, Illinois, USAReference
Total built1,674Reference
Original price was $2,400 in 1952Reference
The MV was the "vegetable", or high-clearance version of the Farmall M.Reference
Two-wheel driveReference
SteeringmanualReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
Mrow-cropReference
MDVdiesel high-cropReference
Engine
International Harvester 4.1L 4-cyl distillateReference
International Harvester 4.1L 4-cyl gasolineReference
Fuel tank79.5 LReference
Aux. fuel3.8 LReference
Drawbar (claimed)18.6 kWReference
Belt (claimed)23.1 kWReference
Plows3 (14-inch)Reference
International HarvesterReference
distillateReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.1 LReference
Bore/Stroke98 x 133 mmReference
Compression4.75:1Reference
Compression4.5:1Reference
Rated RPM1,450Reference
Firing order1-3-4-2Reference
Coolant capacity22.7 LReference
Sparkplug gap0.635 mmReference
Point gap0.330 mmReference
Intake valve clearance0.432 mmReference
Exhaust valve clearance0.432 mmReference
International Harvester C248Reference
gasolineReference
Compression5.65:1Reference
Rated RPM1450Reference
Transmission
5-speedReference
Transmissionsliding gearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
TypeLift-AllReference
Rear PTO Type540Reference
Dimensions
Wheelbase231 cmReference
Weight2203 kgReference
Front tire6.00-20Reference
Rear tire10.00-36Reference
Ag front6.00-20Reference
Ag rear10.00-36Reference
Length370 cmReference
Width218 cmReference
Height229 cmReference
Shipping weight2203 kgReference
Ballasted weight3070 kgReference
Front tread152 to 167 cmReference
Rear tread175 cmReference
MV Serial Number Location
Data plate on the left side of the engine area.Reference
MV Serial Numbers
194250988Reference
194360011Reference
194467424Reference
194588085Reference
1946105564Reference
1947122823Reference
1948151708Reference
1949180514Reference
1950213579Reference
1951247518Reference
1952290923Reference
Final298218Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
