Tractor · 1953Unverified

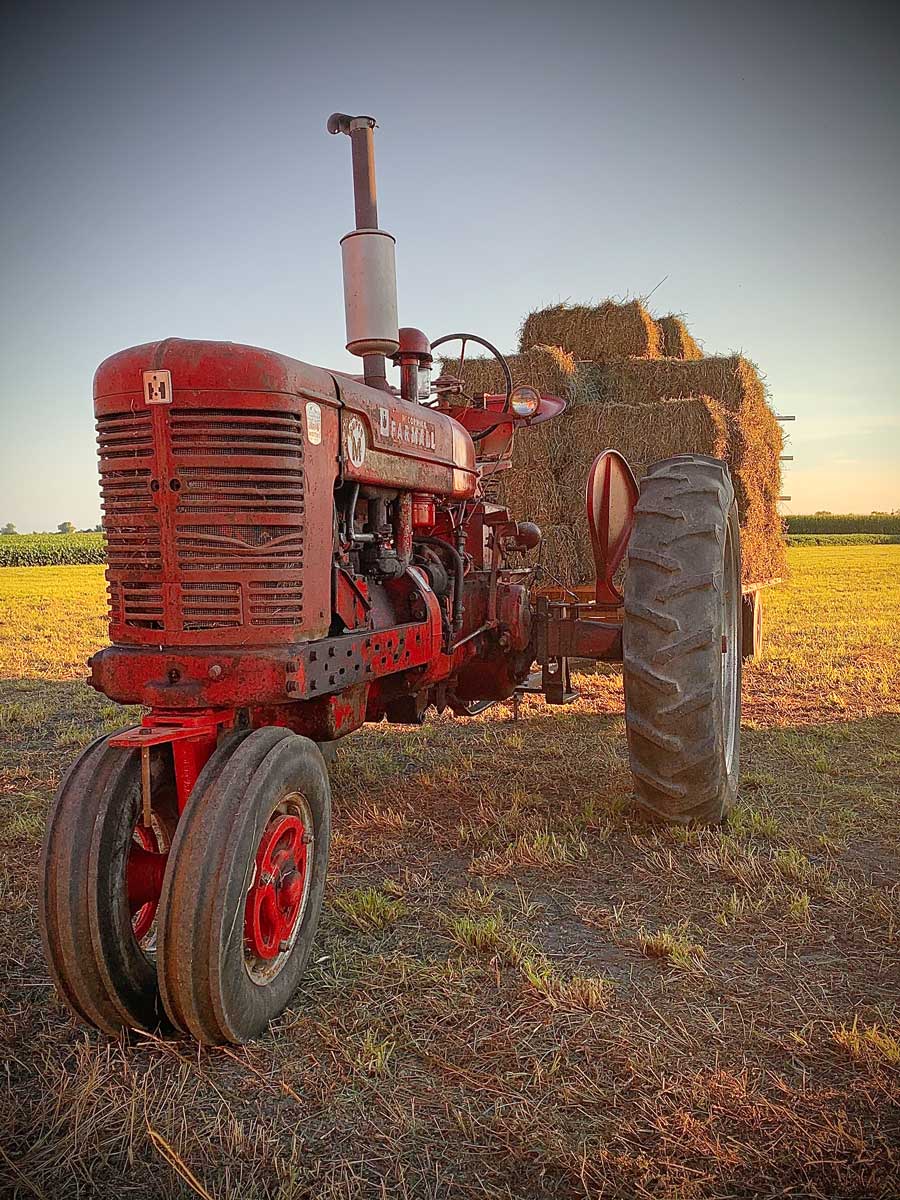

Farmall Super AM
Farmall Super AM — Row-Crop tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
5293 to 6669 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Two-wheel driveReference
Differential mechanical drum brakesReference
Open operator station.Reference
Variants
Super AW-6kerosense engine, standard frontReference
Super AWD-6diesel engine, standard frontReference
Super AMkerosene engine, row-crop frontReference
Super AMDdiesel engine, row-crop frontReference
Engine
International Harvester 4.3L 4-cyl keroseneReference
Fuel tank79.5 LReference
Aux. fuel3.4 LReference
International HarvesterReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Air cleaneroil bathReference
Rated RPM1450Reference
Firing order1-3-4-2Reference
Coolant capacity22.7 LReference
Sparkplug gap0.813 mmReference
Intake valve clearance0.432 mmReference
Exhaust valve clearance0.432 mmReference
Oil capacity7.3 LReference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Oil capacity47.3 LReference
PTO & Hydraulics
Rear PTO Type540Reference
Engine RPM540@1450Reference
Dimensions
Wheelbase224 cmReference
Weight5293 to 6669 poundsReference
Front tire6.00x16Reference
Rear tire12x38Reference
Ag front6.00x16Reference
Ag rear12x38Reference
Length337 cmReference
Width214 cmReference
Width245 cmReference
Height (steering wheel)196 cmReference
Height (hood)163 cmReference
Shipping weight2400 kgReference
Operating weight3025 kgReference
Ground clearance44 cmReference
Clearance (rear axle)66 cmReference
Front tread21 cmReference
Rear tread132 to 223 cmReference
Rear tread132 to 254 cmReference
Super AM Serial Numbers
Location:Tractor's clutch housing on the right side.Reference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Speed788.82 meters/minReference
Electrical
Charging systemgeneratorReference
Speeds
With 12x38 rear tires.Reference
