Tractor · 1947Unverified
Farmall Super AV

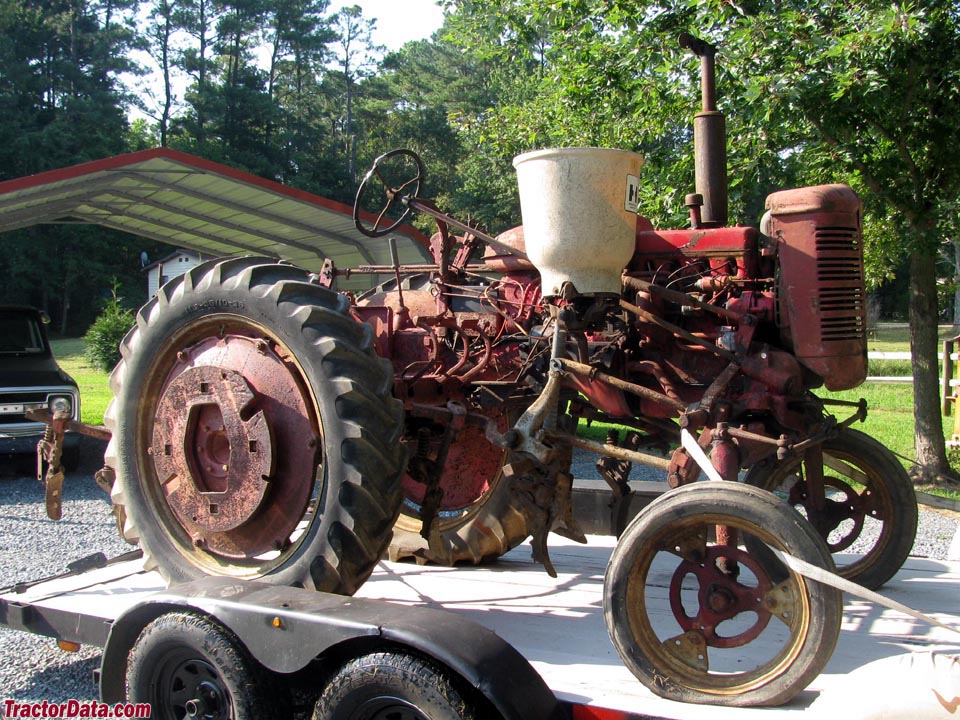

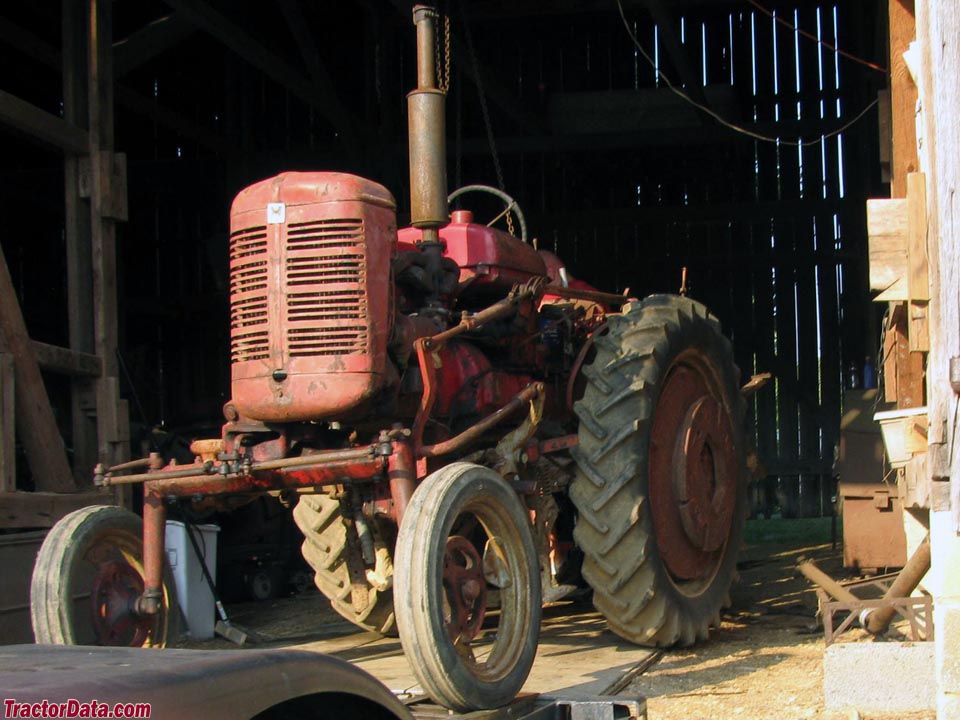

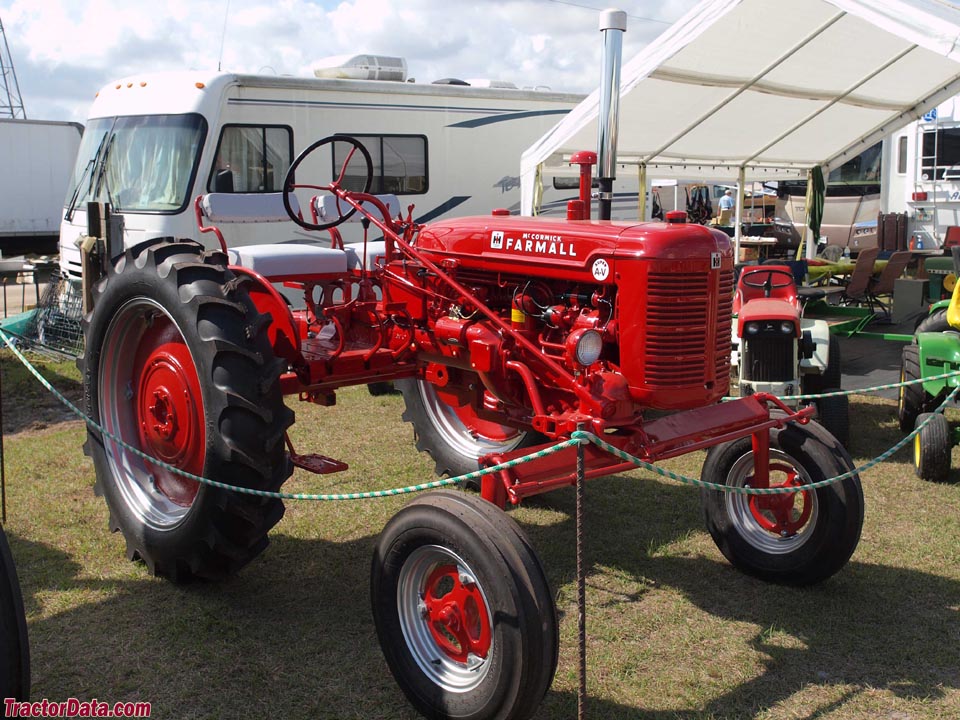

Farmall Super AV — High-Clearance tractor · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1088 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
FactoriesChicago, Illinois, USAReference
FactoriesLouisville, Kentucky, USAReference
The Farmall Super AV was the "vegetable" (high-crop) version of the Farmall Super AV.Reference
Two-wheel driveReference
SteeringmanualReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
Super Arow-cropReference
Engine
International Harvester 1.9L 4-cyl gasolineReference
International Harvester 1.9L 4-cyl keroseneReference
Drawbar (claimed)9.7 kWReference
Plows1 (16 inch)Reference
International Harvester C113Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke76 x 102 mmReference
Compression6.0:1Reference
Rated RPM1400Reference
Idle RPM500-1540Reference
Firing order1-3-4-2Reference
StartermanualReference
Starterelectric optionalReference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity12.3 LReference
Sparkplug gap0.584 mmReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.356 mmReference
International HarvesterReference
keroseneReference
Transmission
4-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Clutch9-inch dry discReference
Oil capacity3.8 LReference
Oil capacity4.7 LReference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
Hydraulic system7.9 LReference
TypeIH Touch-ControlReference
Capacity7.9 LReference
Valves1Reference
Typemid-mount Touch Control rockshaftReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Engine RPM541@1400Reference
Capacities
Fuel41.6 LReference
Aux. fuel3.4 LReference
Rear hubs1.4 LReference
Diameter21 cmReference
Width15 cmReference
RPM1157Reference
Speed784.56 meters/minReference
Dimensions
Wheelbase181 cmReference
Weight1088 kgReference
Front tire4.00-19Reference
Rear tire9-36Reference
Ag front4.00-19Reference
Ag rear9-36Reference
Length292 cmReference
Width153 cmReference
Height (steering wheel)179 cmReference
Height (exhaust)224 cmReference
Clearance (front axle)68 cmReference
Clearance (rear axle)69 cmReference
Front tread111 to 172 cmReference
Rear tread121 to 172 cmReference
Super AV Serial Numbers

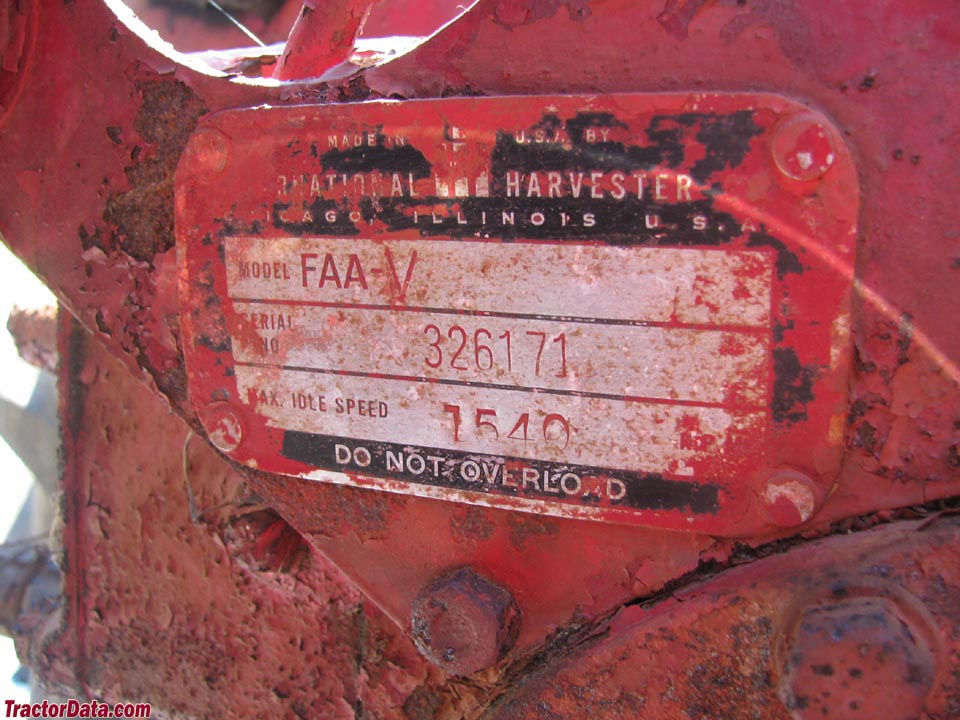

Location:On the right side of the seat supportReference
1947250001Reference
1948250082Reference
1949268196Reference
1950281269Reference
1951300126Reference
1952324470Reference
1953336880Reference
1954353348Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Battery volts6Reference
Speeds
With 9-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
