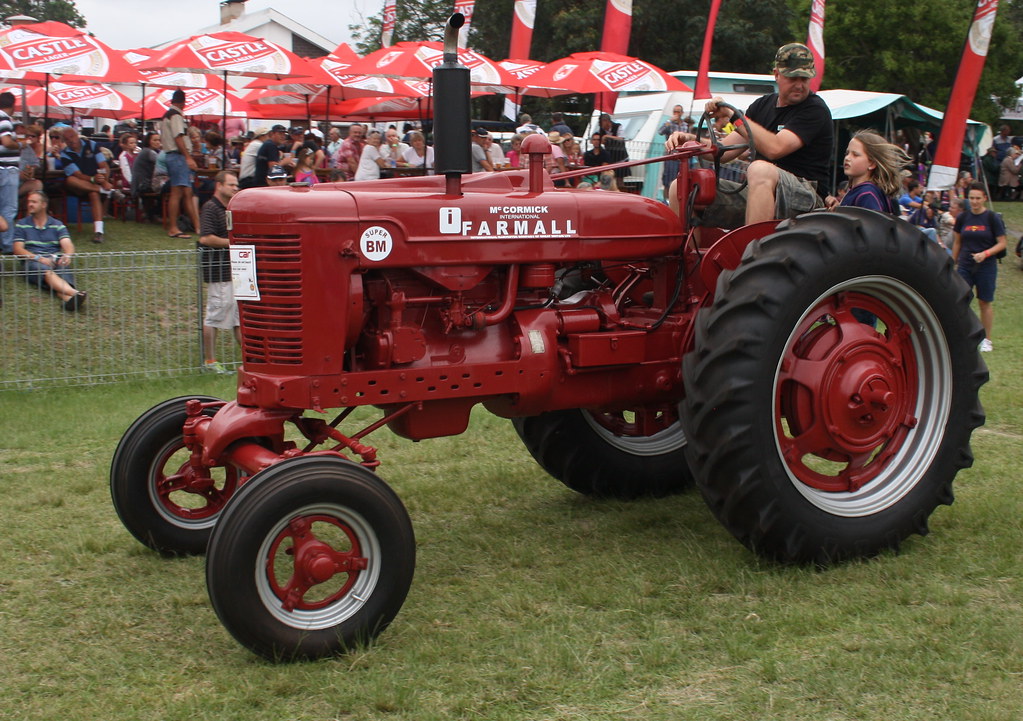

The Farmall Super BM is a tractor model with a rated output of 43 hp — making it one of the more compact options in its class. This model was produced from 1954 to 1958. It is powered by a 4-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 5-speed gearbox. Listed weight is 2404 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
2404 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
43 hp
Recorded weight
2404 kg
Transmissions
5-speed gear
Production years
1954-1958
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Total built1,998Reference
Two-wheel driveReference
Open operator station.Reference
Variants
Super BMDdiesel engineReference
Engine
International Harvester 4.3L 4-cyl tvoReference
Belt (claimed)31.7 kWReference
International HarvesterReference
tvoReference
4-cylinderReference
liquid-cooled OHVReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
TypeliveReference
Rear TypeoptionalReference
Dimensions
Weight2404 kgReference
Front tire6.00x16.00Reference
Rear tire11.00x38.00Reference
Ag front6.00x16.00Reference
Ag front9.00x10.00 (single)Reference
Ag rear11.00x38.00Reference
Ag rear12.00x38.00Reference
Super BM Serial Numbers
195411001Reference
195511220Reference
195611949Reference
195712038Reference
195812688Reference
Final12733Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
