Tractor · 1953Unverified

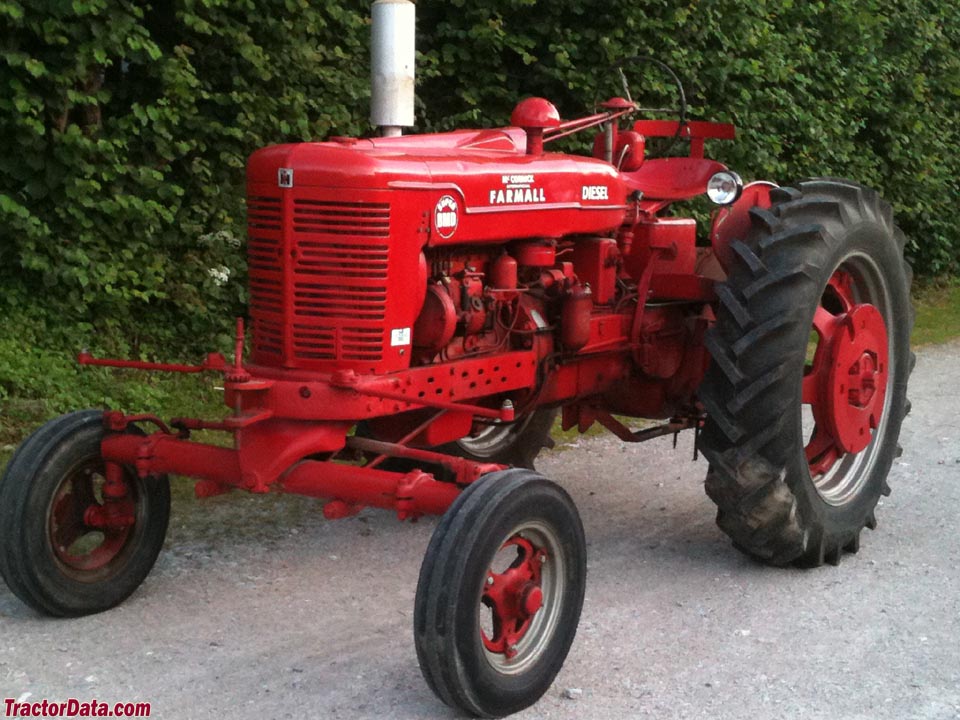

Farmall Super BMD
Farmall Super BMD — Row-Crop tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2474 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Total built7,811Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
International Harvester 4.3L 4-cyl dieselReference
Fuel tank79.5 LReference
Drawbar (claimed)31.3 kWReference
Belt (claimed)35.0 kWReference
International Harvester BD-265Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Rated RPM1450Reference
Starter typeelectricReference
Oil capacity9.0 LReference
Coolant capacity25.4 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase239 cmReference
Weight2474 kgReference
Length288 cmReference
Width243 cmReference
Height (steering wheel)197 cmReference
Front tread145 to 205 cmReference
Rear tread132 to 223 cmReference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
