Tractor · 1953Unverified

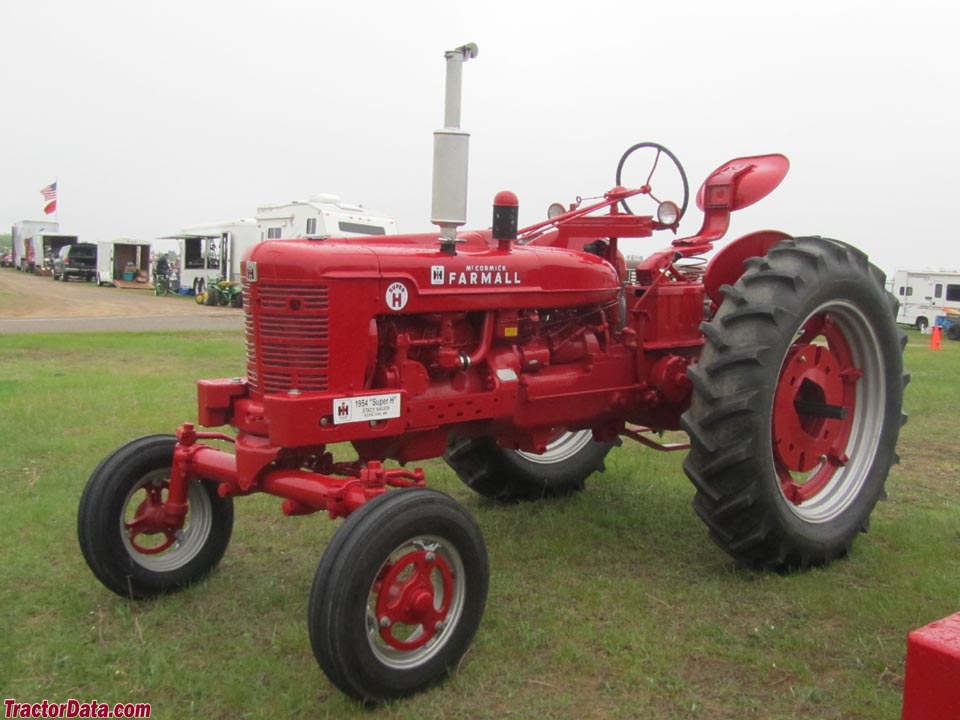

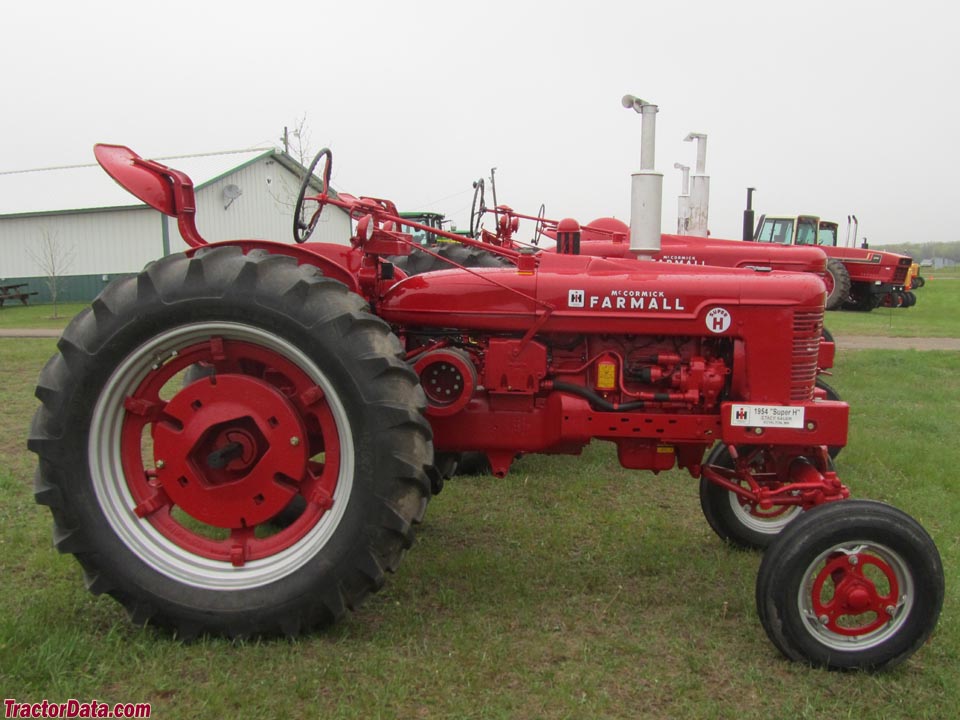

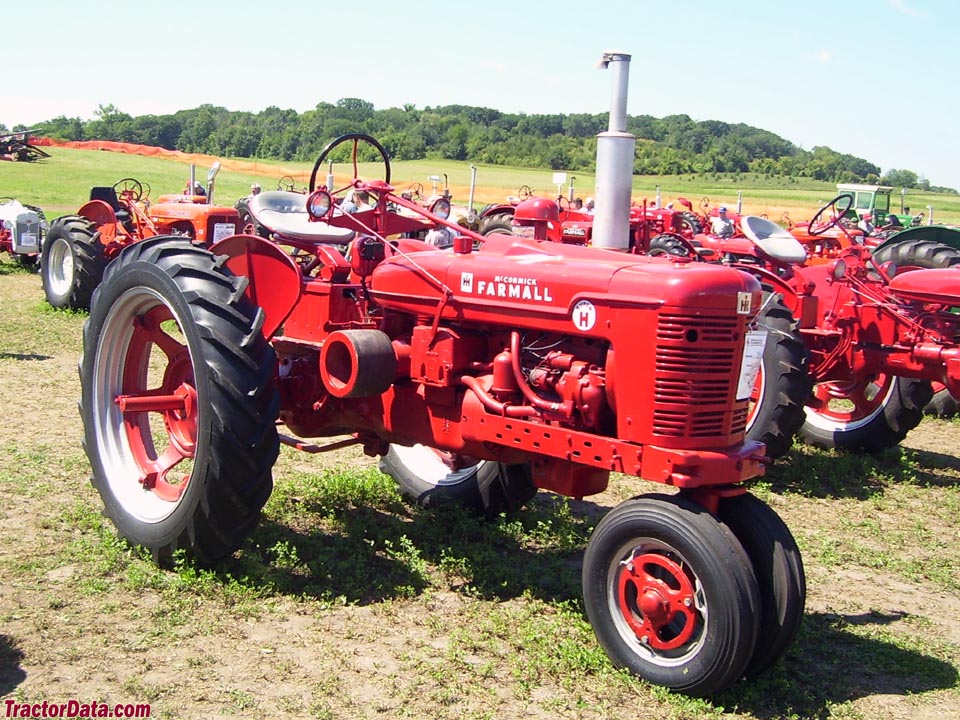

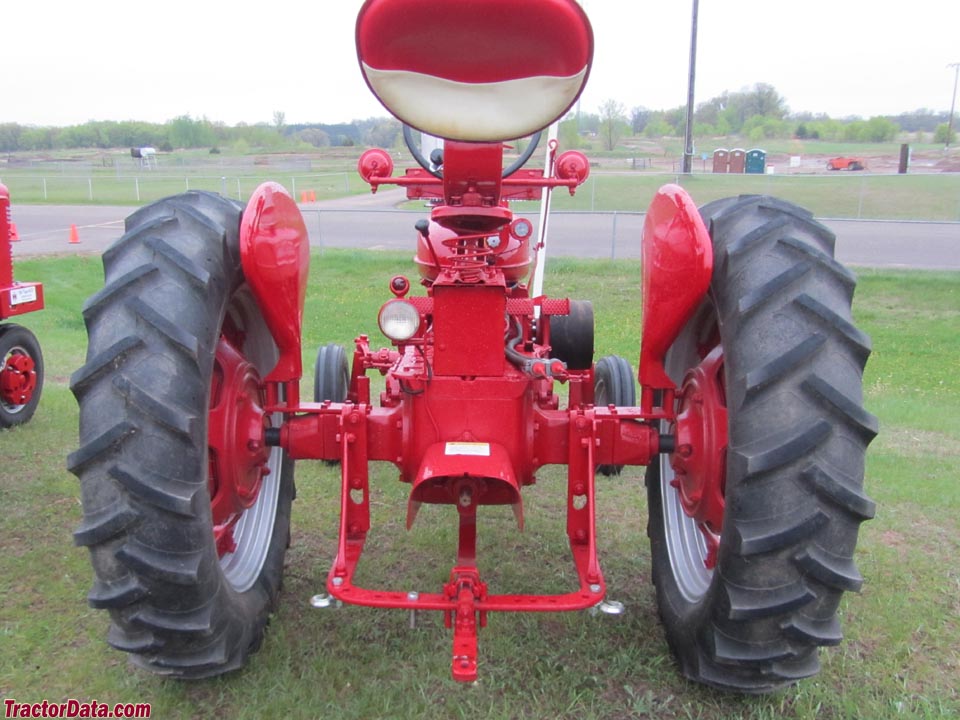

Farmall Super H
Farmall Super H — Row-Crop tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Max power
22.9 kW
Weight
1757 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built28,784Reference
Original price was $2,100 in 1954Reference
Two-wheel driveReference
Manual steeringReference
Mechanical disc brakesReference
Open operator stationReference
Engine
International Harvester 2.7L 4-cyl gasolineReference
Fuel tank64.3 LReference
Drawbar (claimed)16.4 kWReference
Drawbar (tested)22.9 kWReference
Belt (tested)24.9 kWReference
International Harvester C164Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 108 mmReference
Compression6.1:1Reference
Rated RPM1650Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts6Reference
Coolant capacity15.6 LReference
Sparkplug gap0.635 mmReference
Point gap0.508 mmReference
Intake valve clearance0.432 mmReference
Exhaust valve clearance0.432 mmReference
Belt power (max)24.9 kWReference
Max power22.9 kWReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)21.6 kWReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase226 cmReference
Weight1757 kgReference
Front tire5.50-16Reference
Rear tire11-38Reference
Ag front5.50-16Reference
Ag rear11-38Reference
Length337 cmReference
Width191 cmReference
Width254 cmReference
Height215 cmReference
Ballasted weight3039 kgReference
Front tread20 to 0 cmReference
Rear tread121 to 223 cmReference
Super H Serial Number Location
Serial number plate on the left side of the clutch housing.Reference
Super H Serial Numbers
1953501Reference
195422202Reference
FAQ: How to read a serial number table.Reference
Links
Farmall-H.com: detailed information on the HReference
Capacities
Diameter24 cmReference
Width19 cmReference
RPM1019Reference
Speed792.78 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
Test results
Gasoline 5-speed 2WDApril 27 - May 13, 1953Link: Nebraska Tractor Test 492 fileReference
Belt fuel use (max)11.4 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1895 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
