Tractor · 1954Unverified
Farmall Super M-TA

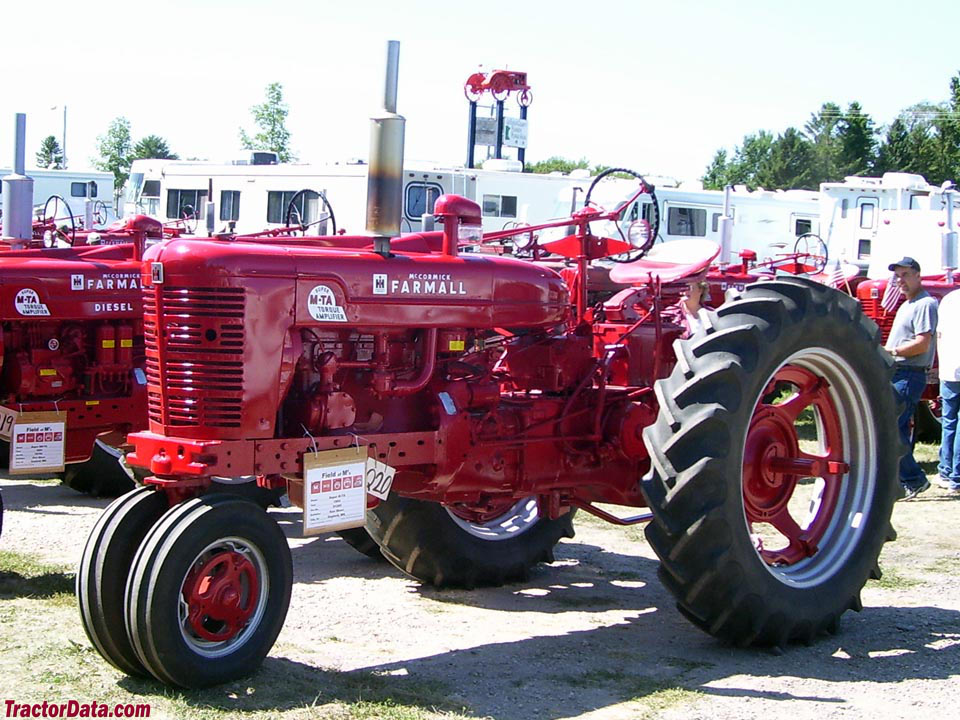

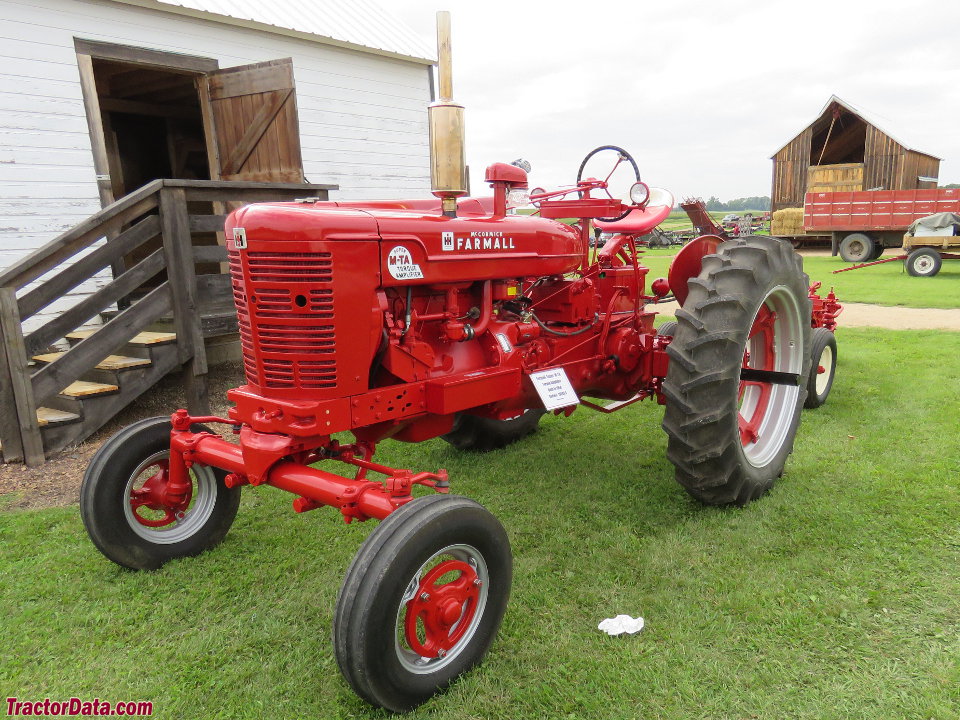

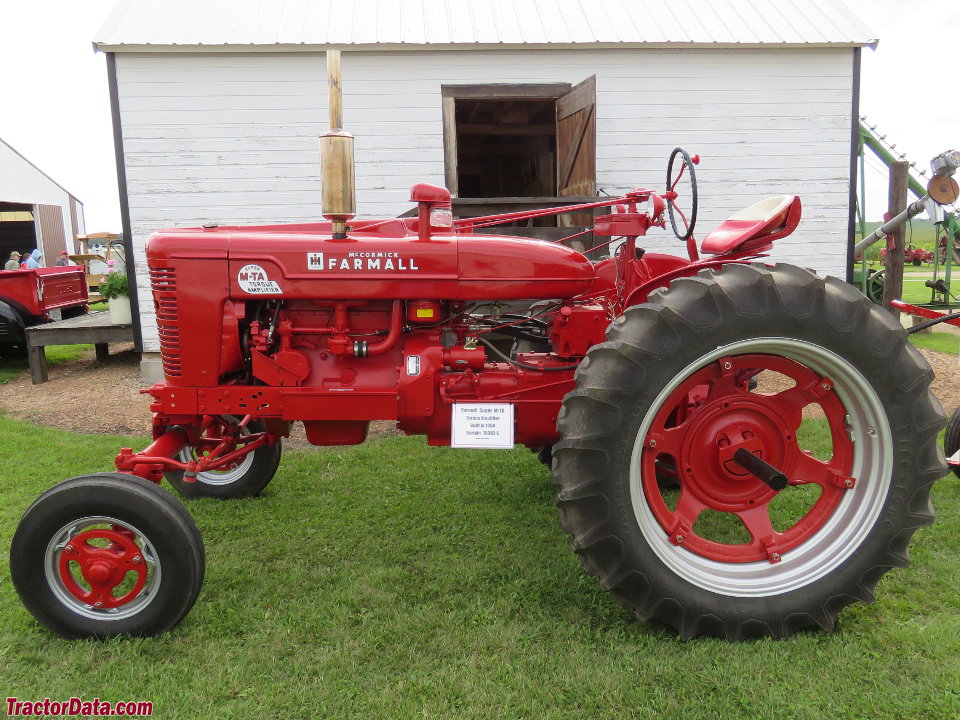

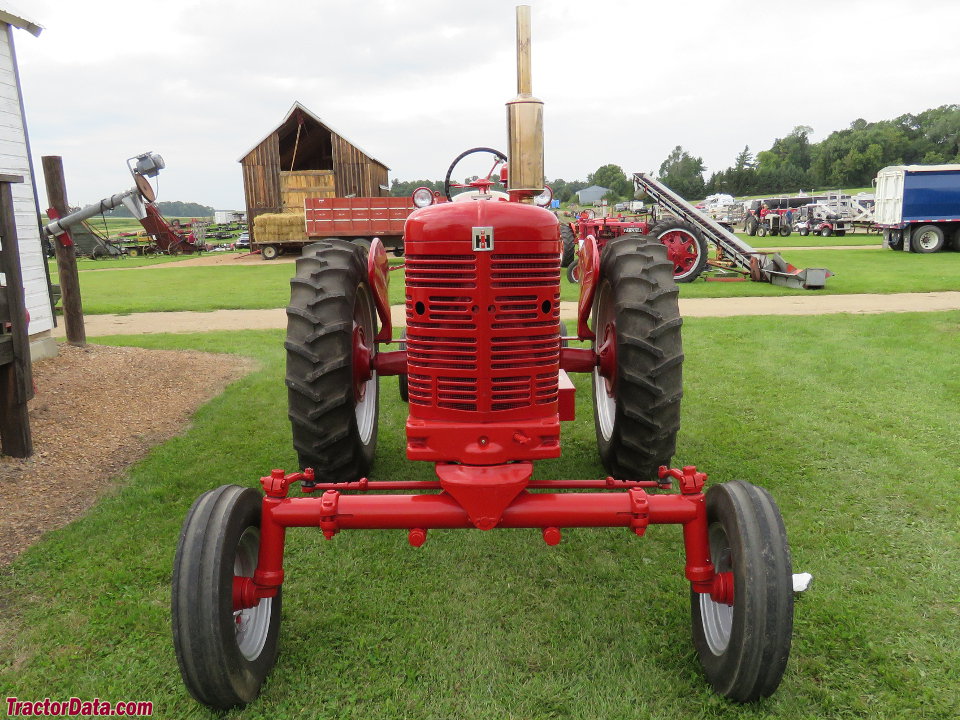

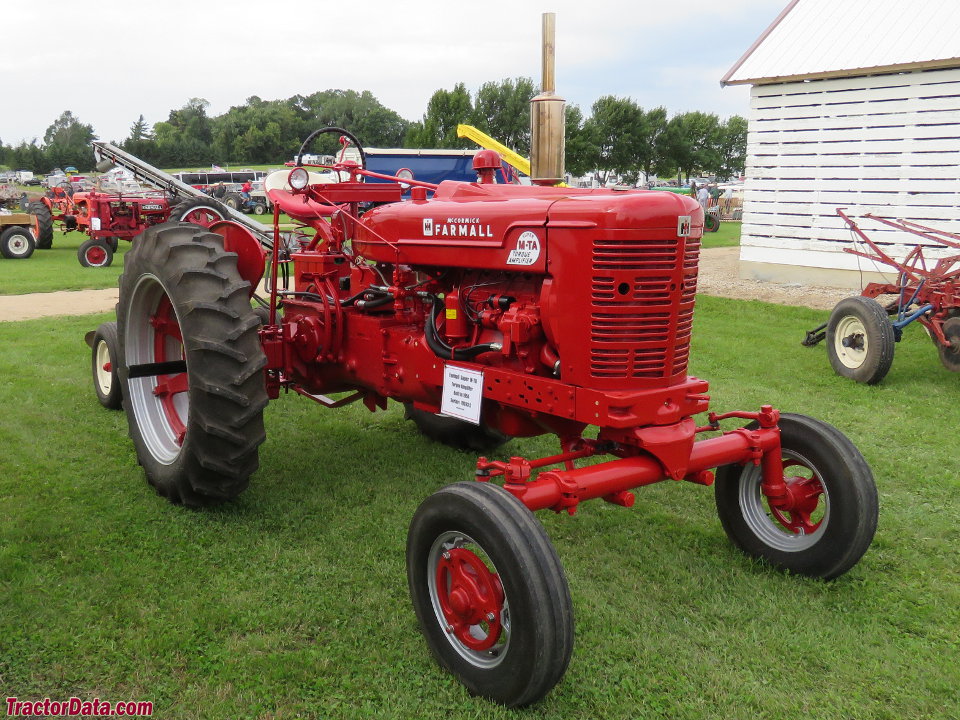

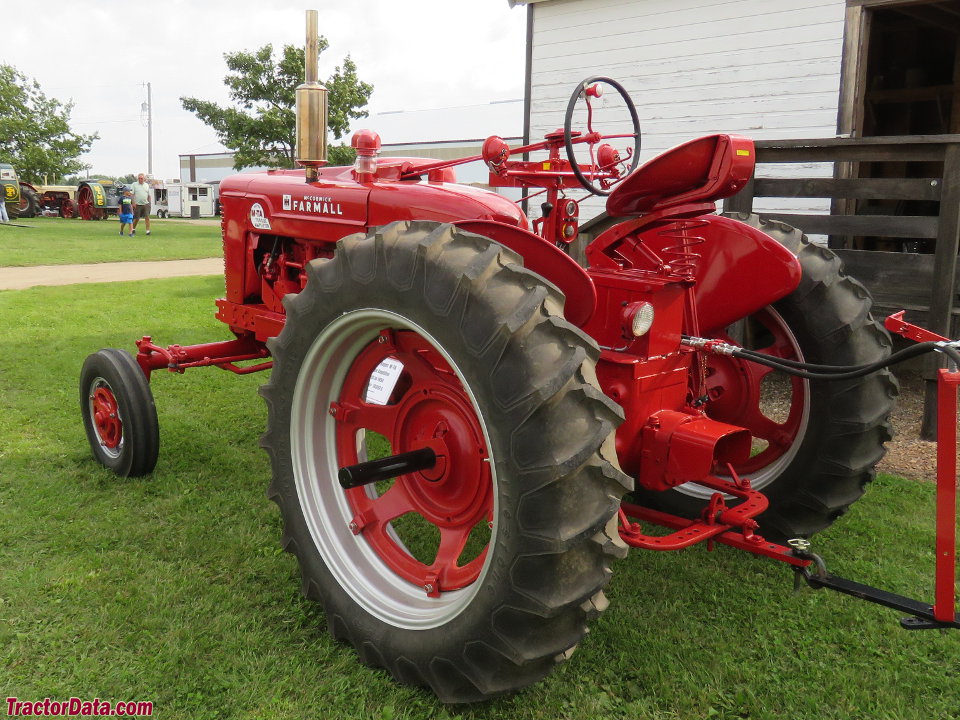

Farmall Super M-TA — Row-Crop tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
5445 to 5603 pounds
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Two-wheel driveReference

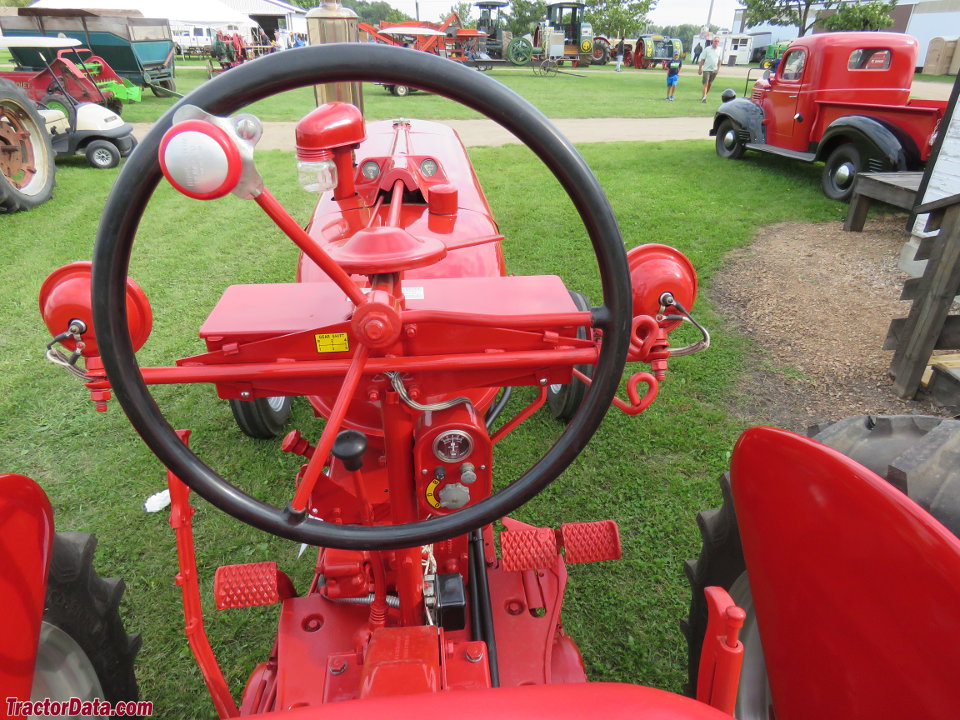

Manual steeringReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
Super Mgear with spark engineReference
Super M-TATA with spark engineReference
Super MDgear with diesel engineReference
Super MD-TATA with diesel engineReference

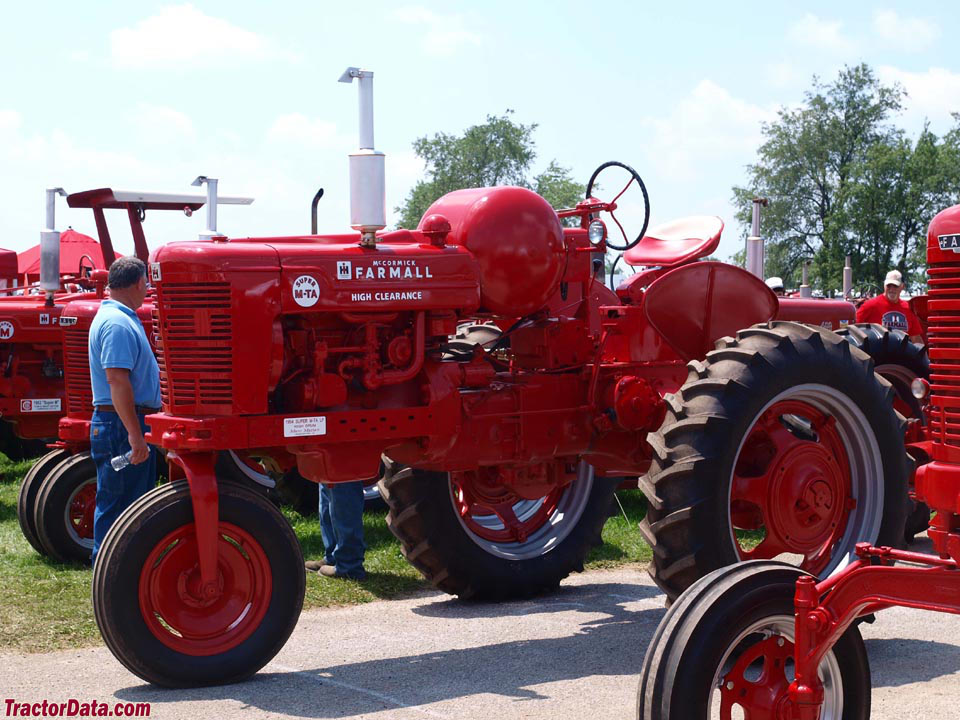

Super MVhigh-cropReference
Engine
International Harvester 4.3L 4-cyl gasolineReference
International Harvester 4.3L 4-cyl LP gasReference
International Harvester C264Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Fuel use13.8 l/hourReference
Air cleaneroil bathReference
Compression5.9:1Reference
Rated RPM1450Reference
Idle RPM400-1600Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Coolant capacity24.6 LReference
Sparkplug gap0.584 mmReference
Intake valve clearance0.432 mmReference
Exhaust valve clearance0.432 mmReference
Oil capacity7.6 LReference
International HarvesterReference
LP gasReference
Fuel use19.7 l/hourReference
Compression6.75:1Reference
Transmission
10-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Capacities
Fuel79.5 LReference
Aux. fuel3.4 LReference
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Speed788.82 meters/minReference
PTO & Hydraulics
Hydraulic system7.2 LReference
TypeIH Lift-AllReference
Capacity7.2 LReference
TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM534@1450Reference
Dimensions
Wheelbase243 cmReference
Wheelbase253 cmReference
Weight5445 to 5603 poundsReference
Front tire6.00-16Reference
Rear tire12-38Reference
Ag front6.00-16Reference
Ag rear12-38Reference
Ag front6.50-16Reference
Ag front7.50-20Reference
Ag front9.00-10Reference
Ag rear11-38Reference
Ag rear13-38Reference
Length358 cmReference
Length368 cmReference
Width214 cmReference
Height (steering wheel)200 cmReference
Shipping weight2469 kgReference
Operating weight2541 kgReference
Ground clearance46 cmReference
Clearance (rear axle)66 cmReference
Front tread144 to 205 cmReference
Rear tread132 to 223 cmReference
Rear tread132 to 254 cmReference
Super M-TA Serial Number Location
Serial number plate on the left side of the Farmall Super M-TA clutch housing.Reference
Super M-TA Serial Numbers
1954SM-TA60001Reference
FinalSM-TA83523Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
