Tractor · 1952Unverified
Farmall Super MV

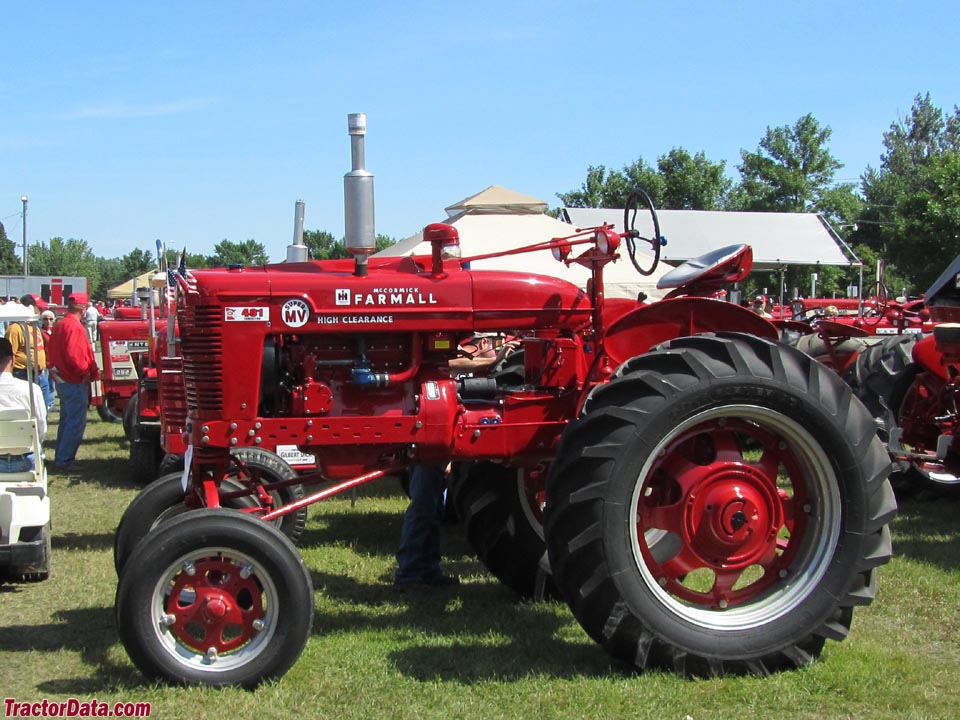

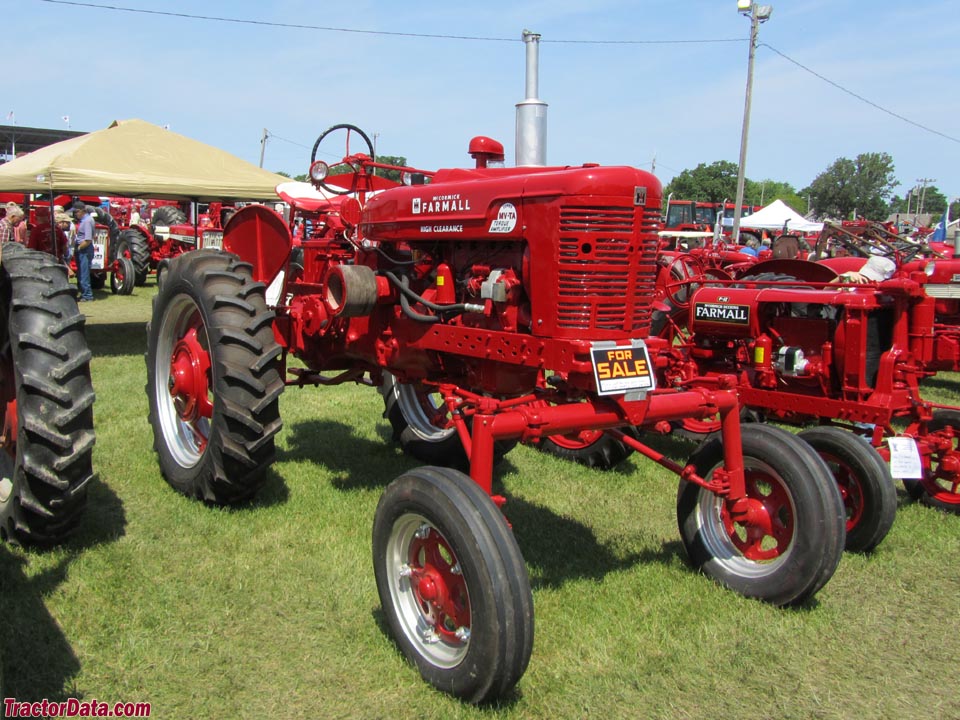

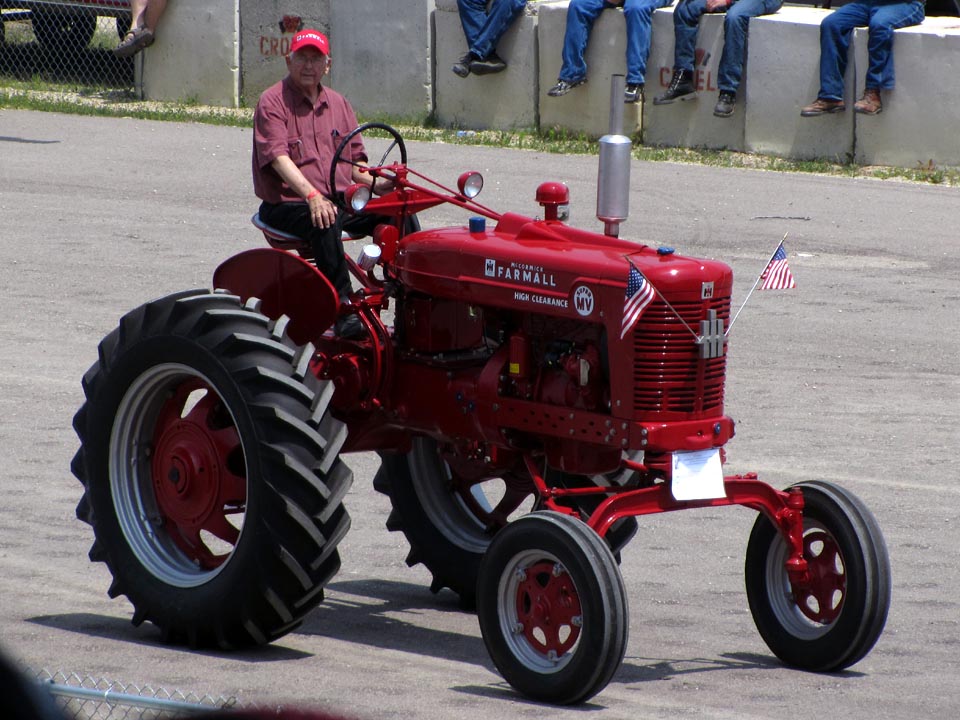

Farmall Super MV — High-Clearance tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
2541 kg
Hover a source tag to verify
Overview
ManufacturerFarmall (a part of International Harvester)Reference
High-Clearance tractorReference
FactoriesRock Island, Illinois, USAReference
FactoriesLouisville, Kentucky, USAReference
Total built245Reference
Two-wheel driveReference
SteeringmanualReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
Super Mrow-cropReference
Super MV-TATorque AmplifierReference
Engine
International Harvester 4.3L 4-cyl gasolineReference
International Harvester 4.3L 4-cyl LP gasReference
Fuel tank79.5 LReference
Aux. fuel3.4 LReference
Drawbar (claimed)30.6 kWReference
International Harvester C264Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Fuel use13.8 l/hourReference
Air cleaneroil bathReference
Compression5.9:1Reference
Rated RPM1450Reference
Idle RPM400-1600Reference
Firing order1-3-4-2Reference
Starter volts6Reference
Coolant capacity24.6 LReference
Sparkplug gap0.584 mmReference
Intake valve clearance0.432 mmReference
Exhaust valve clearance0.432 mmReference
Oil capacity7.6 LReference
International HarvesterReference
LP gasReference
Fuel use19.7 l/hourReference
Compression6.75:1Reference
Transmission
5-speed sliding gearReference
10-speed partial power shiftReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
Clutch12-inch dry discReference
Oil capacity49.2 LReference
TransmissionTorque AmplifierReference
Typepartial power shiftReference
Gears10 forward and 2 reverseReference
The Torque Amplifier became available in 1954, the final year of production.Reference
PTO & Hydraulics
PTO (claimed)35.4 kWReference
TypeIH Lift-AllReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Wheelbase232 cmReference
Weight2541 kgReference
Front tire6.00-20Reference
Rear tire13-36Reference
Ag front6.00-20Reference
Ag rear13-36Reference
Length372 cmReference
Width218 cmReference
Height (steering wheel)228 cmReference
Clearance (front axle)76 cmReference
Clearance (rear axle)74 cmReference
Front tread152/160/167 cmReference
Rear tread175 cmReference
Rear tread152/167/182 cmReference
Super MV Serial Number Location
Serial number plate on the left side of the Farmall Super MV, on the clutch housing.Reference
Super MV Serial Numbers
1952501 (Farmall Rock Island plant)Reference
195312516 (Farmall Rock Island plant)Reference
195451977Reference
Final52627 (Farmall Rock Island plant)Reference
1952500001 (Louisville plant)Reference
1953501906 (Louisville plant)Reference
1954512541 (Louisville plant)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Speed788.82 meters/minReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Battery volts6Reference
Speeds
With 13-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
