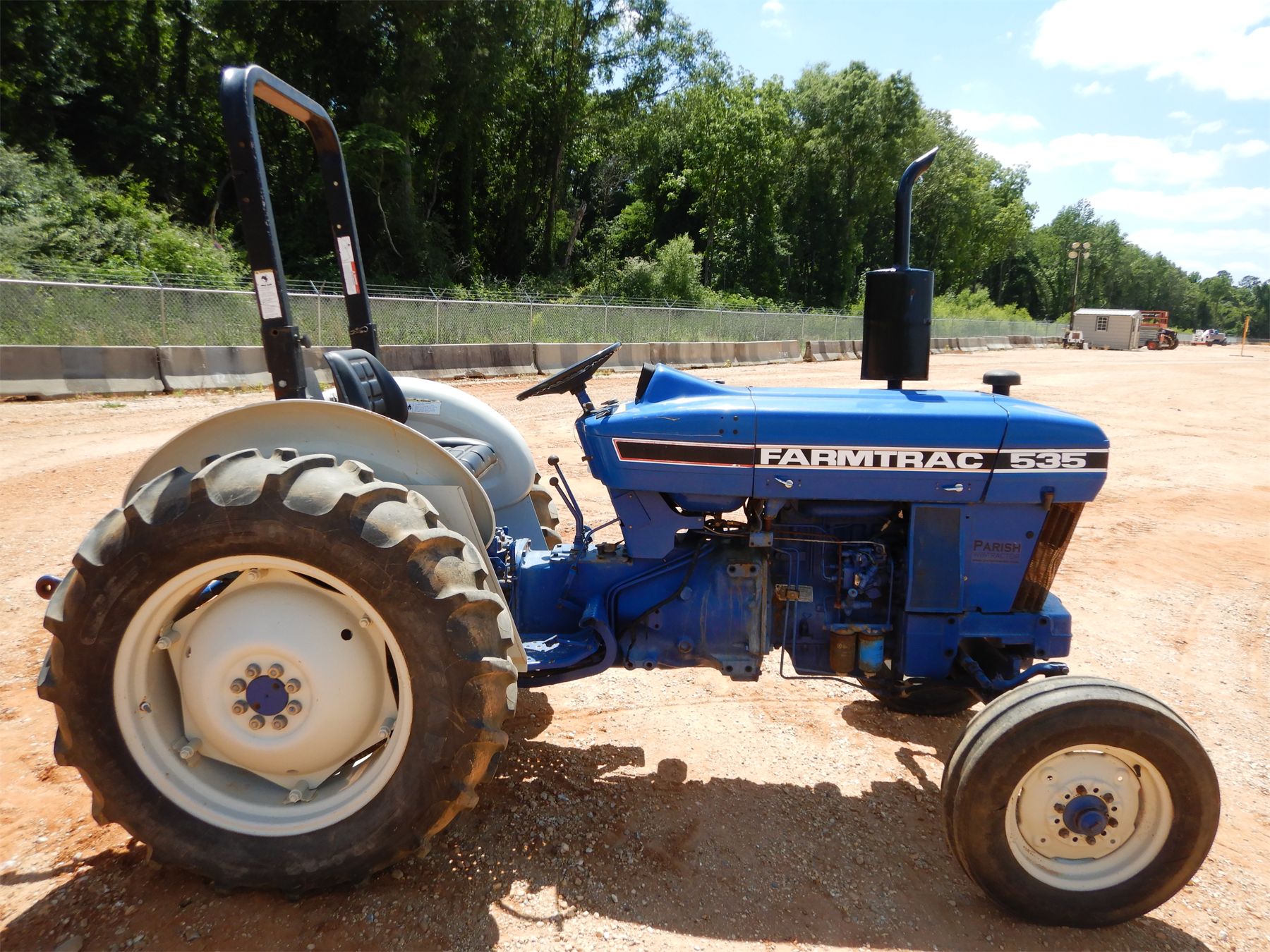

The Farmtrac 535 is a tractor model with a rated output of approximately 30 hp, positioning it in the lighter category of its class. It was manufactured from 2006 to 2008. The 535 is powered by a 3-cylinder diesel liquid-cooled engine, paired with a two-wheel drive system and an 8-speed gearbox. Its listed operating weight is 1914 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1914 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
30 hp
Recorded weight
1914 kg
Transmissions
8-speed
Production years
2006-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFarmtracReference
Utility tractorReference
Built in Faridabad, IndiaReference
Two-wheel driveReference
Engine
2.1L 3-cyl dieselReference
Engine26.1 kWReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Power26.1 kWReference
Starter volts12Reference
Transmission
8-speedReference
Transmissionconstant meshReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)22.4 kWReference
Pump flow34.1 lpmReference
Rear TypeIReference
Rear lift1397 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Weight1914 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Ag rear13.6-28Reference
Lawn/turf front24x13-12Reference
Lawn/turf rear44x18-20Reference
Industrial front11L-15Reference
Industrial rear19.5L-24Reference
Length332 cmReference
Width193 cmReference
Height (exhaust)213 cmReference
Farmtrac 535 attachments
front-end loaderReference
Electrical
Charging amps35Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
