Tractor · 1998Unverified

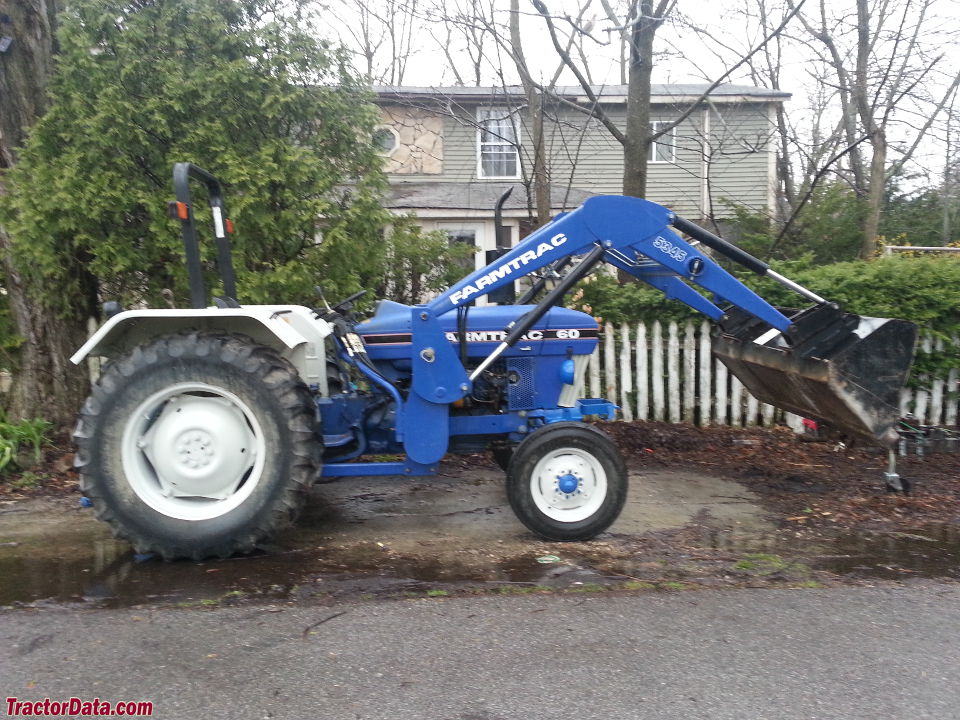

Farmtrac 60
Farmtrac 60 — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2049 kg
Hover a source tag to verify
Overview
ManufacturerFarmtracReference
Utility tractorReference
Two-wheel driveReference
SteeringmanualReference
Steeringhydrostatic power (optional)Reference
Mechanical dry disc brakesReference
Two-post ROPS.Reference
Engine
Escorts 3.1L 3-cyl dieselReference
Engine37.1 kWReference
EscortsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke112 x 107 mmReference
Power37.1 kWReference
Air cleanerdual dry elementReference
Compression16.3:1Reference
Rated RPM2000Reference
Idle RPM600-2400Reference
Torque185.8 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity13.0 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity6.0 LReference
Transmission
8-speed constant meshReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in high and low ranges. Tractor must be stopped, and clutch used, to shift gears or range.Reference
PTO & Hydraulics
PTO (claimed)33.3 kWReference
Hydraulic system23.8 LReference
Typegear pumpReference
Capacity23.8 LReference
Valves2Reference
Pump flow17.0 lpmReference
Pump flow34.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1400 kgReference
Rear PTOtransmissionReference
Rear PTOlive (two-stage clutch)Reference
Clutch11-inch dry discReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel49.2 LReference
Max capacity3129 kgReference
Dimensions
Wheelbase209 cmReference
Weight2049 kgReference
Front tire6.00x16Reference
Rear tire14.9x28Reference
Ag front6.00x16Reference
Ag rear14.9x28Reference
Length340 cmReference
Width146 cmReference
Height (exhaust)216 cmReference
Clearance (front axle)35 cmReference
Flange rear axleReference
Rear tread121 to 193 cmReference
Operating2049 kgReference
Max front axle1360 kgReference
Max rear axle2721 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA800Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
