Tractor · 2002Unverified

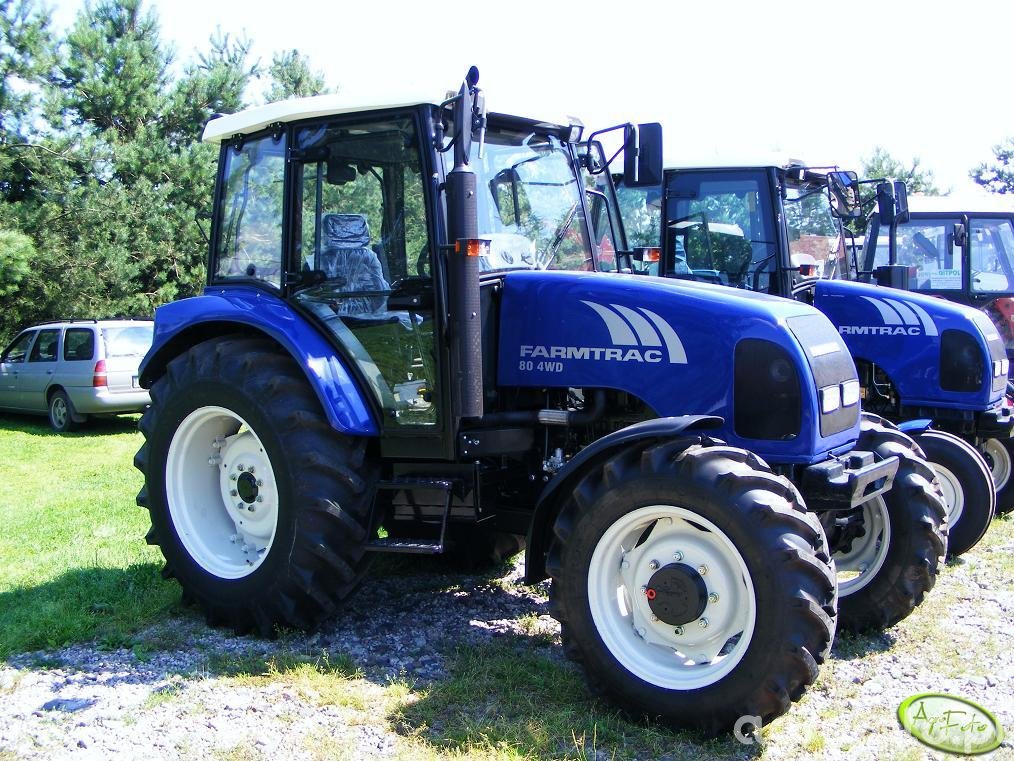

Farmtrac 80

Name: Farmtrac 80
Brand: Farmtrac

Farmtrac 80 — Utility tractor · 65 hp. Reference specifications; pending source verification.

The Farmtrac 80 is a tractor model with a rated power of 65 horsepower, classified as mid-range for its category. It was manufactured between 2002 and 2003. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a 12-speed gearbox. Its listed operating weight is 2574 kilograms.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Weight

2574 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

65 hp

Recorded weight

2574 kg

Transmissions

12-speed

Production years

2002-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFarmtracReference

Utility tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Open operator station.Reference

Variants

80DT4WDReference

Engine

Perkins 4.2L 4-cyl dieselReference

Fuel tank79.5 LReference

Engine54.0 kWReference

Perkins 1004.42Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke104 x 127 mmReference

Power54.0 kWReference

Fuel systemdirect injectionReference

Air cleanerdry elmentReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears (1-4) in three ranges (low, medium, and high) with shuttle shift.Reference

PTO & Hydraulics

PTO (claimed)48.3 kWReference

Pressure171.7 barReference

Valves1 or 2Reference

Pump flow41.6 lpmReference

Rear TypeIIReference

Rear lift (at ends)2404 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2115Reference

Dimensions

2WD Wheelbase236 cmReference

4WD Wheelbase231 cmReference

Weight2574 kgReference

Front tire7.50-16Reference

2WD Rear tire16.9-30Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference

4WD Standard tires (ag)Front: 11.2R24. Rear: 18.4x30Reference

Length378 cmReference

Width177 cmReference

Height (exhaust)243 cmReference

Front tread127 to 187 cmReference

Rear tread129 to 190 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Battery AH88Reference

Speeds

With 16.9-30 rear tires. Reverse speeds are about 15% slower than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
