Tractor · 2007Unverified

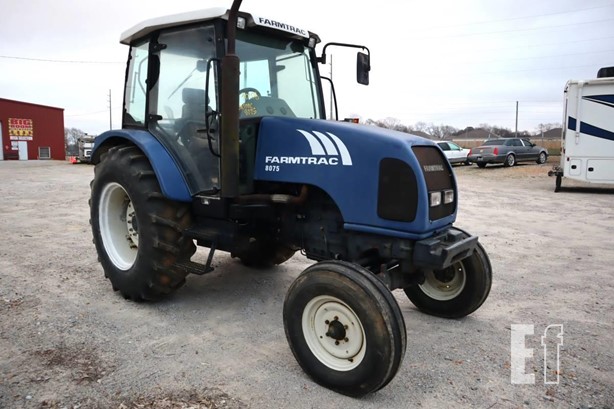

Farmtrac 8075
Farmtrac 8075 · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
6395 to 7056 pounds
Hover a source tag to verify
Overview
ManufacturerFarmtracReference
Built in PolandReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with heat and A/CReference
Variants
80752WDReference
8075DT4WDReference
Engine
Perkins 4.4L 4-cyl dieselReference
Engine54.0 kWReference
PerkinsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power54.0 kWReference
Air cleanerdual paper elementsReference
Compression19.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Power at rated engine speed50.1 kWReference
Transmission
12-speedReference
Transmissionshuttle, partial synchromeshReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)48.3 kWReference
PTO (tested)50.1 kWReference
Valves2Reference
Pump flow37.1 lpmReference
Total flow53.0 lpmReference
Steering flow11.4 lpmReference
Rear TypeIIReference
Rear lift (at ends)2296 kgReference
Rear lift (at 24"/610mm)1804 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed49.7 kWReference
Dimensions
Weight6395 to 7056 poundsReference
Front tire7.5x16Reference
Rear tire16.9x30Reference
Ag front7.5x16 (2WD)Reference
Ag front11.2x24 (4WD)Reference
Ag rear16.9x30Reference
Ag rear18.4x30 (2WD optional)Reference
Length381 cmReference
Length388 cmReference
Width187 cmReference
Height248 cmReference
Height250 cmReference
Weight2900 kgReference
Weight3200 kgReference
Electrical
Charging amps65Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDMarch 3 - July 9, 2008Link: Nebraska Tractor Test 1917 fileReference
PTO performanceReference
Fuel use17.4 l/hourReference
Fuel use17.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
