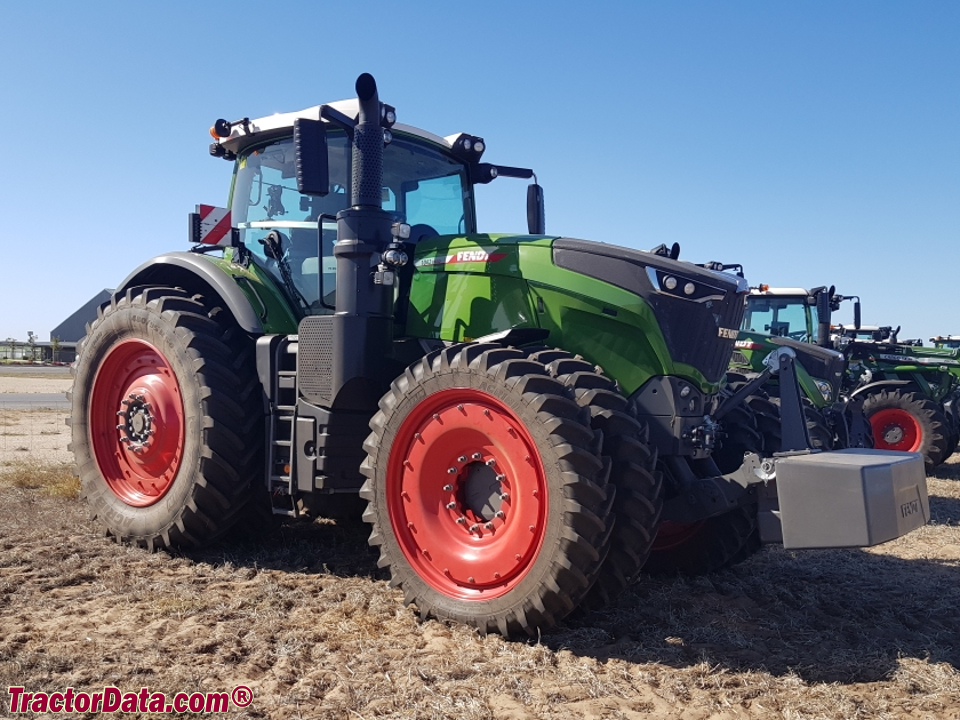

Fendt 1042 Vario
Fendt 1042 Vario — Row-Crop tractor · 420 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
420 hp
Max power
305.8 kW
Weight
14000 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning and mechanical suspension. Available pneumatic suspension system.Reference
Engine
MAN 12.4L 6-cyl dieselReference
Fuel tank799.8 LReference
Exhaust fluid (DEF)85.2 LReference
Engine (net)313.2 kWReference
Drawbar (tested)259.9 kWReference
MANReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.4 LReference
Bore/Stroke126 x 166 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Rated Power (net)313.2 kWReference
Rated RPM1700Reference
Torque2100.4 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Starter power7.0 kWReference
Oil change500 hReference
Max power305.8 kWReference
Power at rated engine speed305.4 kWReference
Max power259.9 kWReference
PTO & Hydraulics
PTO (tested)305.8 kWReference
Typeload sensingReference
Pressure200.0 barReference
Pump flow165.0 lpmReference
Pump flow219.9 lpmReference
Pump flow430.0 lpmReference
Rear TypeIVReference
Front lift5697 kgReference
Rear PTOindependentReference
Rear PTO Type1000/1000E/1300Reference
Power at rated PTO speed304.8 kWReference
Dimensions
Wheelbase329 cmReference
Weight14000 kgReference
Front tire650/65R38Reference
Rear tire750/75R46Reference
Standard tires (ag)Front: 650/65R38. Rear: 750/75R46Reference
Optional tires (ag)Front: 710/60R38. Rear: 900/65R46Reference
Length615 cmReference
Width275 cmReference
Height (cab)344 cmReference
Height (cab)347 cmReference
Ground clearance48 cmReference
Front tread210 cmReference
Rear tread199 cmReference
Electrical
Charging systemalternatorReference
Charging amps270Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH180Reference
Test results
Diesel Vario 4WDJuly 2017 - November 2017, Link: OCED Tractor Test 3105 fileReference
PTO performanceReference
Fuel use73.4 l/hourReference
Fuel use75.3 l/hourReference
Fuel use74.2 l/hourReference
Drawbar performanceReference
Fuel use76.1 l/hourReference
Pull at 9.10 KPHReference
Max pull15472 kgReference
Pull at 4.90 KPHReference
Transmission
TransmissionVarioReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
