Tractor · 2020Unverified

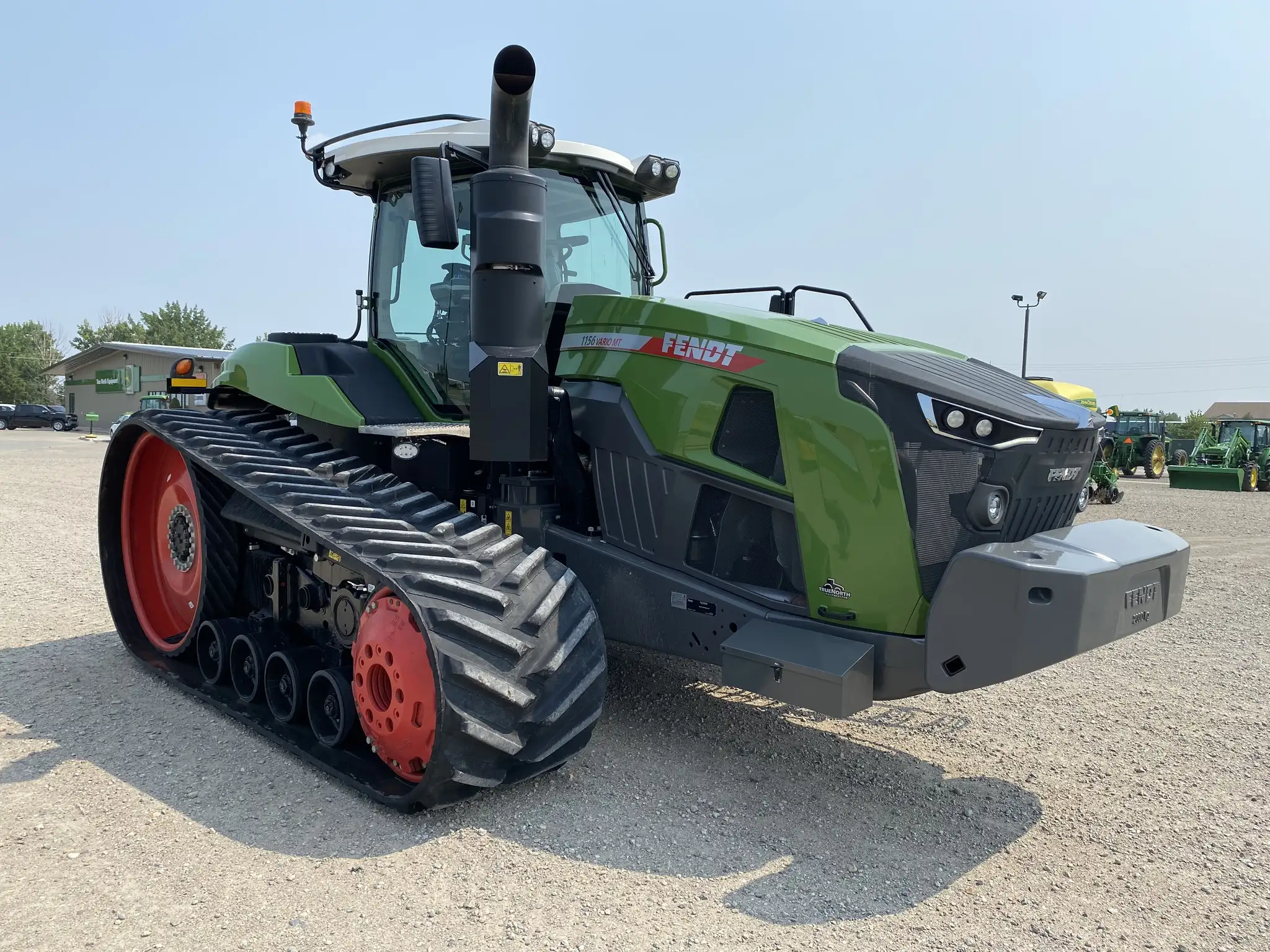

Fendt 1156 Vario MT

Name: Fendt 1156 Vario MT
Brand: Fendt

Fendt 1156 Vario MT — Agricultural Crawler tractor · 557 hp. Reference specifications; pending source verification.

The Fendt 1156 Vario MT is a high-power tractor, rated at 557 horsepower, positioning it within the more powerful machines of its class. Introduced in 2020, it features a 6-cylinder turbocharged diesel liquid-cooled engine driving through a tracked undercarriage with a continuously variable transmission. The tractor has a listed weight of 19,051 kg and is designed for use on large areas, typically exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

557 hp

Max power

564 hp

Weight

19051 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

557 hp

Recorded weight

19051 kg

Transmissions

VarioDrive CVT

Production years

2020-1100

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Agricultural Crawler tractorReference

DrivecrawlerReference

Cab standard with air-conditioning.Reference

Variants

MT856similar Challenger modelReference

Engine

MAN 15.3L 6-cyl dieselReference

Fuel tank1324.8 LReference

Exhaust fluid (DEF)135.1 LReference

Engine (gross)415.0 kWReference

MAN D3876Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement15.3 LReference

Bore/Stroke138 x 170 mmReference

EmissionsTier IVReference

Rated Power (gross)415.0 kWReference

Rated RPM1730Reference

Torque2699.8 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts24Reference

Oil change500 hReference

Fuel TypeDieselReference

Rated engine speed1,730 rpmReference

Transmission

continuously-variable transmissionReference

TransmissionVarioDrive CVTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive2 trackReference

PTO & Hydraulics

Typeclosed center pressure-flow compensatedReference

Pressure200.0 barReference

Rear valves4 to 8Reference

Pump flow219.9 lpmReference

Pump flow439.8 lpmReference

Rear PTOindependentReference

Rear PTO Type1000/1000EReference

Dimensions

Wheelbase299 cmReference

Weight19051 kgReference

TracksReference

Length675 cmReference

Width294 cmReference

Height375 cmReference

Max weight26762 kgReference

Ground clearance35 cmReference

Gauge223 to 325 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps325Reference

Batteries3Reference

Battery volts12Reference

Capacities

Capacity15,200 ccReference

Diesel exhaust fluid (DEF) tank135.0 LReference

Power

Max Power564 hpReference

Rated Power564 hpReference

PTO

PTO torque rise12 percentReference

Rear PTO RPM1,000 rpmReference

General

Cruise controltrueReference

Drawbar categoryCat 5Reference

Hydraulics

Pump Rated Output (total)439 l/minReference

Remote Valves8Reference

Number of rear selective control valves (SCVs)8Reference

Dimensions & weight

Overall Length6,758 mmReference

Overall weight19,050.9 kgReference

Operator station

Cab AvailabilityTrueReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
