Tractor · 2017Unverified

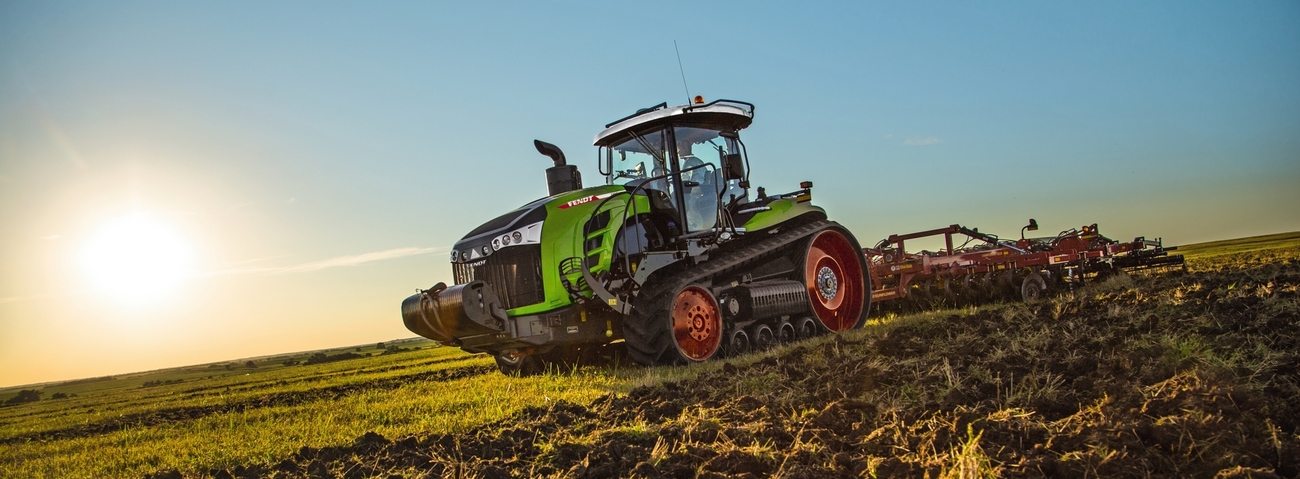

Fendt 1165 MT

Name: Fendt 1165 MT
Brand: Fendt

Fendt 1165 MT — Agricultural Crawler tractor · 590 hp. Reference specifications; pending source verification.

The Fendt 1165 MT is a tractor with a rated power of 590 hp, positioning it at the higher end of its class. It was introduced in 2017 and features a 12-cylinder turbocharged diesel liquid-cooled engine, coupled with a tracked undercarriage and a powershift transmission. The tractor has an operating weight of 19365 kg, making it suitable for large-scale operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

590 hp

Weight

19365 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

590 hp

Recorded weight

19365 kg

Transmissions

16-speed full power shift

Production years

2017-1100

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Agricultural Crawler tractorReference

DrivecrawlerReference

Cab standard with air-conditioning.Reference

Variants

MT875Esimilar Challenger modelReference

Engine

AGCO Power 16.8L 12-cyl dieselReference

Fuel tank1000.0 LReference

Exhaust fluid (DEF)106.0 LReference

Engine (gross)440.0 kWReference

Engine (max)475.0 kWReference

AGCO PowerReference

turbocharged dieselReference

12-cylinderReference

liquid-cooled V12Reference

Displacement16.8 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IVReference

Rated Power (gross)440.0 kWReference

Maximum Power (gross)475.0 kWReference

Rated RPM2100Reference

Operating RPM1500-2100Reference

Torque2840.4 NmReference

Torque RPM1500Reference

Starter typeelectricReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillar TA22Reference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

Typeclosed center pressure flow compensatedReference

Pressure200.0 barReference

Rear valves6Reference

Pump flow224.1 lpmReference

Pump flow321.0 lpmReference

SCV flow140.0 lpmReference

Rear TypeIV/IIIReference

Rear lift14000 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Engine RPM1000@1980Reference

Dimensions

Wheelbase299 cmReference

Weight19365 kgReference

27.5-inch tracksReference

Length675 cmReference

Width299 cmReference

Height (cab)345 cmReference

Max weight27000 kgReference

Ground clearance45 cmReference

Gauge228 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Fendt 1165 MT Tracks

Width69 cmReference

Width76 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
