Tractor · 2020Unverified

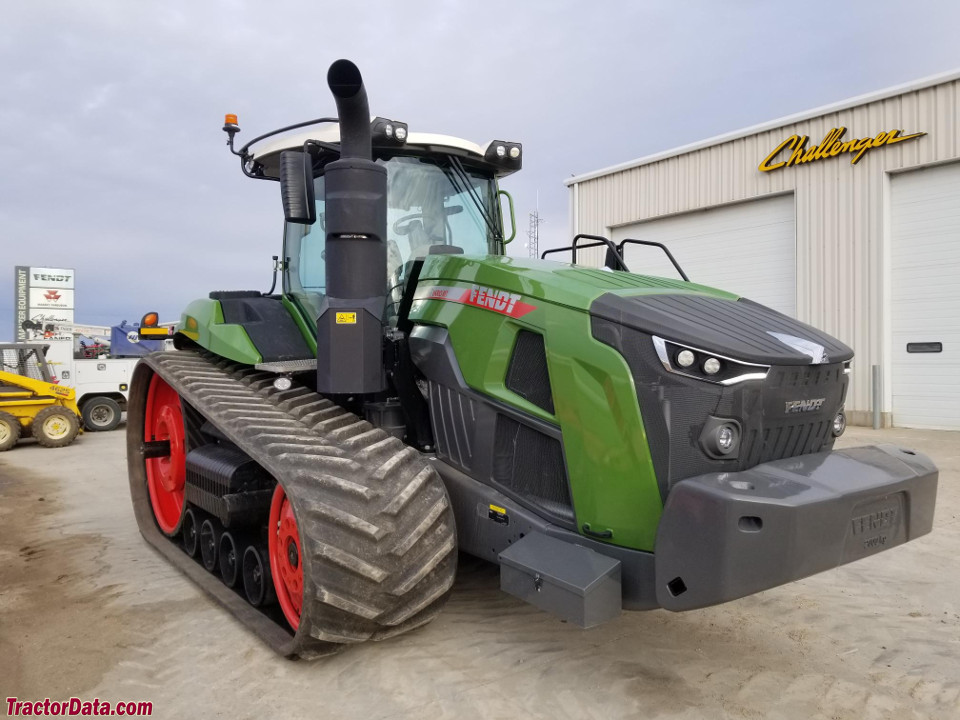

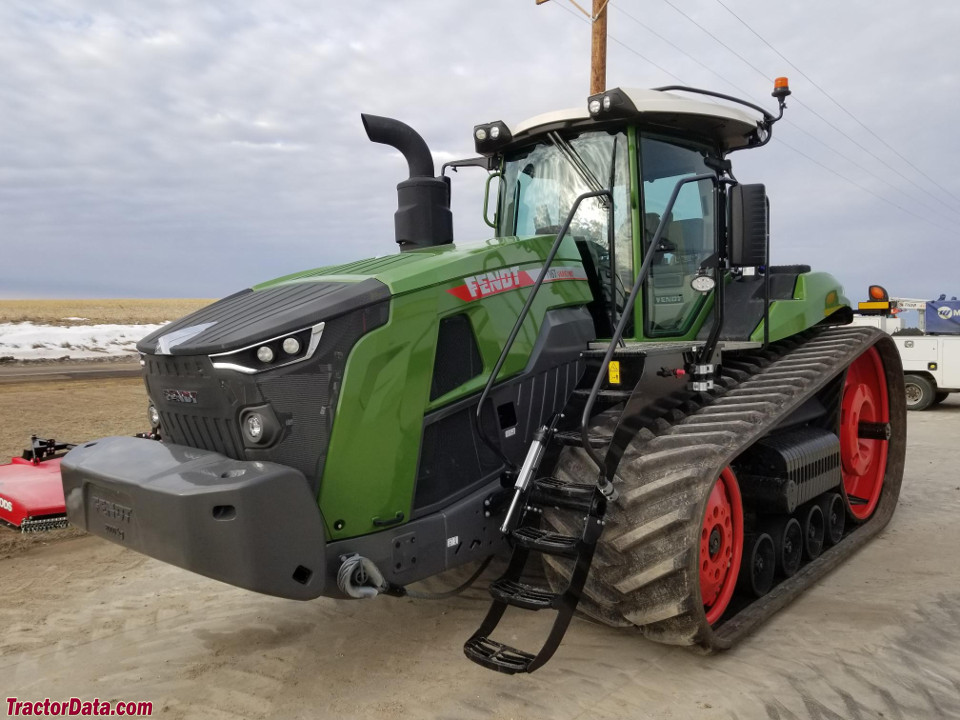

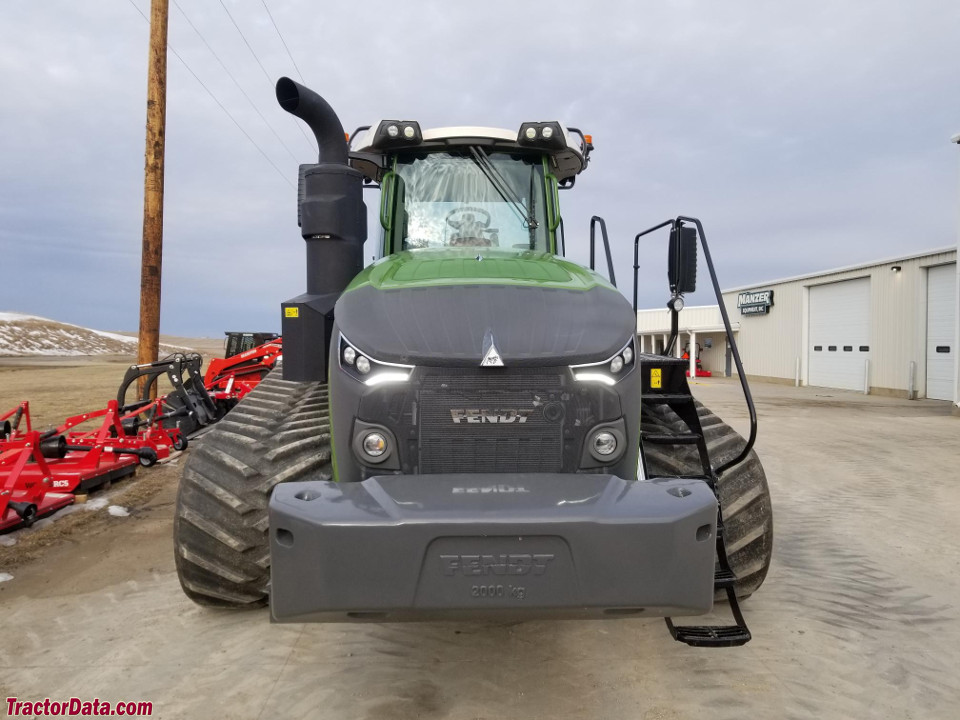

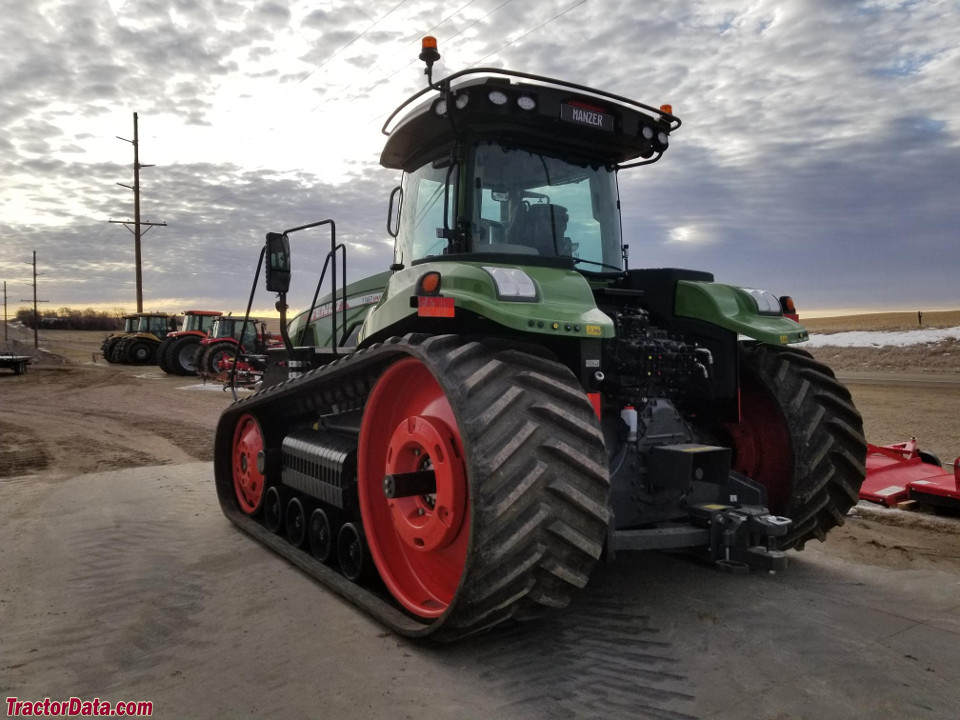

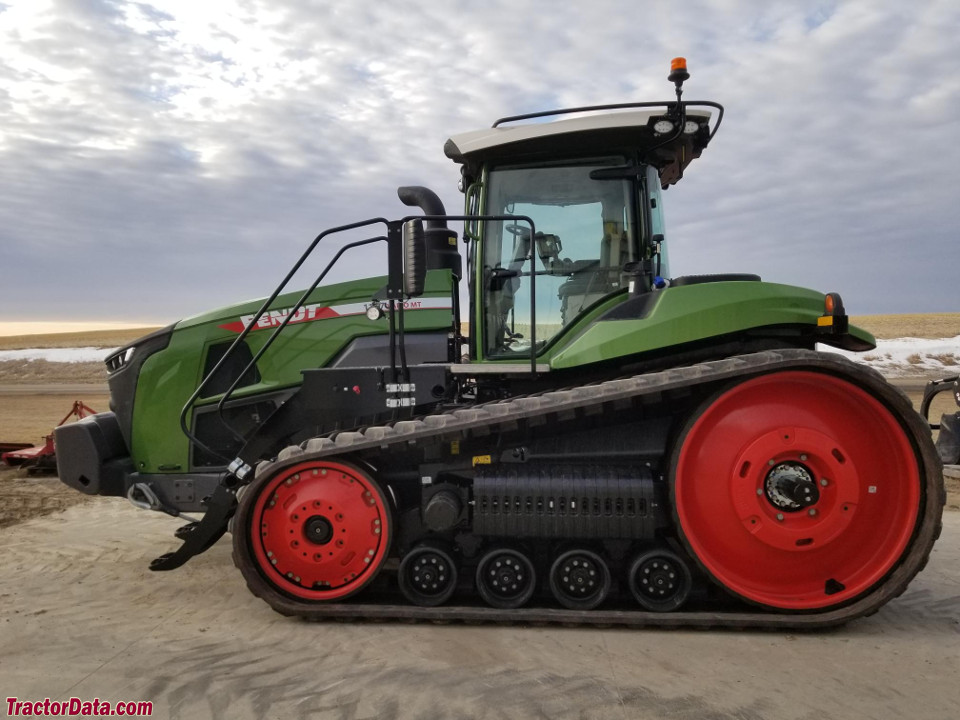

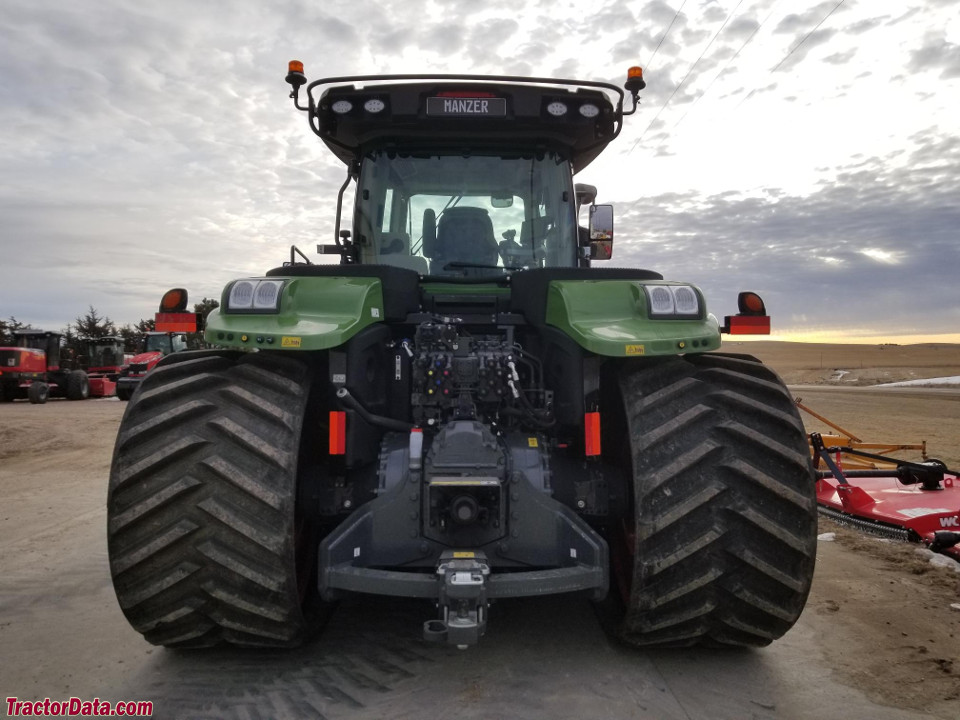

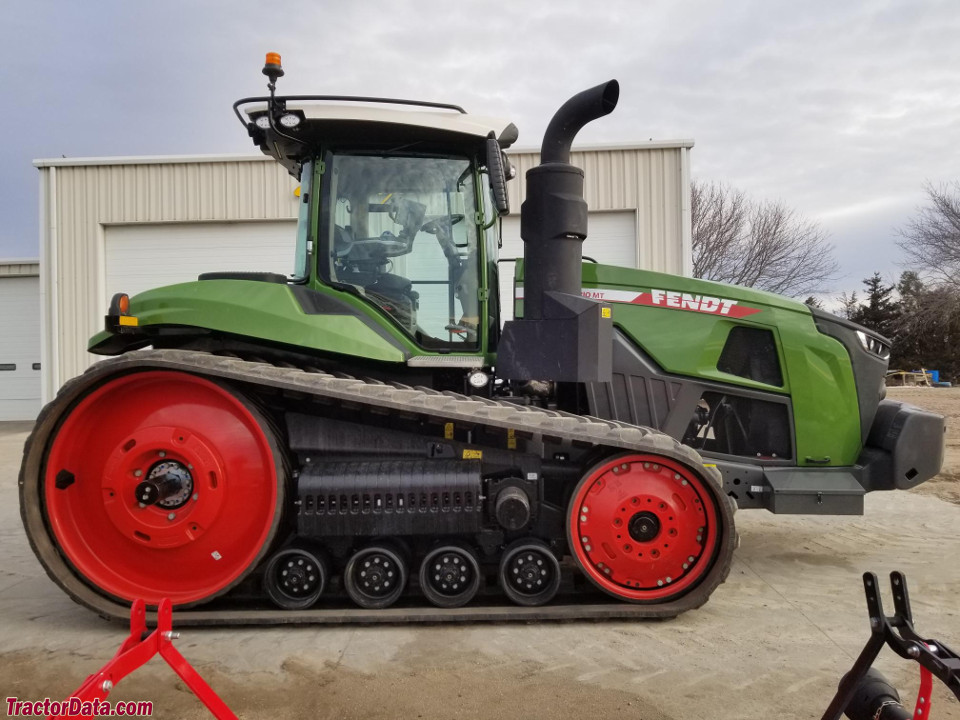

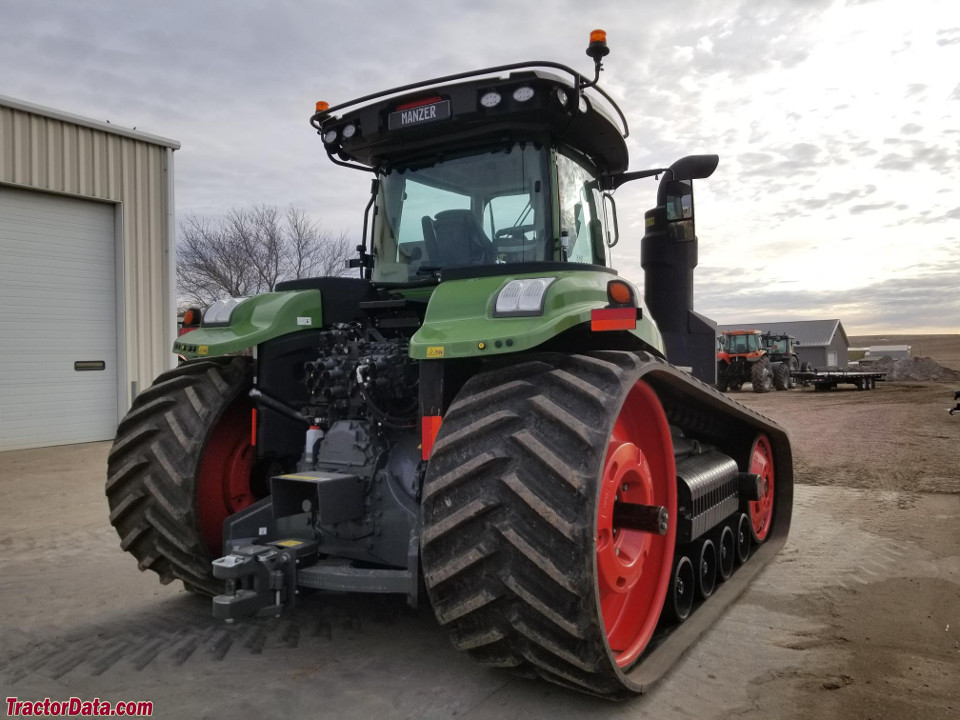

Fendt 1167 Vario MT
Fendt 1167 Vario MT — Agricultural Crawler tractor · 664 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
664 hp
Weight
19051 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Agricultural Crawler tractorReference
DrivecrawlerReference
Cab standard with air-conditioning.Reference
Variants
MT867similar Challenger modelReference
Engine
MAN 16.2L 6-cyl dieselReference
Fuel tank1324.8 LReference
Exhaust fluid (DEF)135.1 LReference
Engine (gross)495.0 kWReference
MAN D4276Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement16.2 LReference
Bore/Stroke142 x 170 mmReference
EmissionsTier IVReference
Rated Power (gross)495.0 kWReference
Rated RPM1730Reference
Torque3099.8 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts24Reference
Oil change500 hReference
Transmission
continuously-variable transmissionReference
TransmissionVarioDrive CVTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Rear valves4 to 8Reference
Pump flow219.9 lpmReference
Pump flow439.8 lpmReference
Rear PTOindependentReference
Rear PTO Type1000/1000EReference
Dimensions
Wheelbase299 cmReference
Weight19051 kgReference
TracksReference
Length675 cmReference
Width294 cmReference
Height375 cmReference
Max weight26762 kgReference
Ground clearance35 cmReference
Gauge223 to 325 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps325Reference
Batteries3Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
