Tractor · 2003Unverified

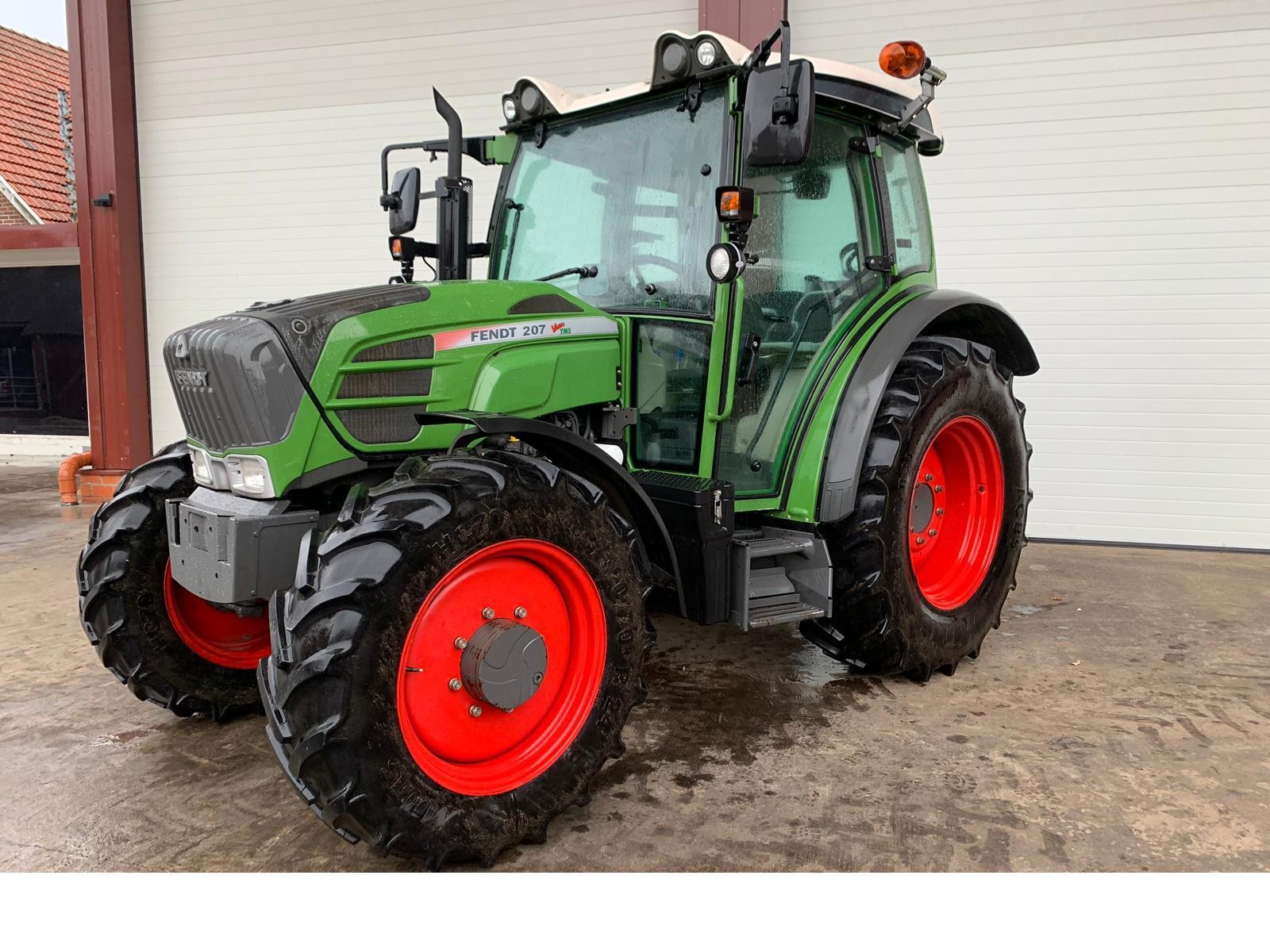

Fendt 207
Fendt 207 — Farmer 200 Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
2930 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with available heat and air-conditioning.Reference
Variants
207SutilityReference
207Vultra-narrowReference
207FnarrowReference
Engine
Deutz 3.2L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)53.0 kWReference
Engine (net)51.0 kWReference
DeutzReference
turbocharged dieselReference
3-cylinderReference
air-cooledReference
Displacement3.2 LReference
Bore/Stroke102 x 132 mmReference
Rated Power (net)51.0 kWReference
Rated Power (gross)53.0 kWReference
Rated RPM2300Reference
Torque264.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed synchromeshReference
21-speed shuttleReference
TypesynchromeshReference
Gears21 forward and 6 reverseReference
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).Reference
TypeshuttleReference
Gears21 forward and reverseReference
Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow46.9 lpmReference
Pump flow74.2 lpmReference
Rear Type2Reference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Rear PTO Type540/750/groundReference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase210 cmReference
Weight2930 kgReference
Front tire335/80R18Reference
Rear tire16.9R28Reference
Standard tires (ag)Front: 335/80R18. Rear: 16.9R28Reference
Optional tires (ag)Front: 311.2R20. Rear: 380/85R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 16.9R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 420/85R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 480/70R30Reference
Optional tires (ag)Front: 420/65R20. Rear: 480/70R30Reference
Optional tires (ag)Front: 420/65R20. Rear: 540/65R30Reference
Length356 cmReference
Width192 cmReference
Height247 cmReference
Max weight5299 kgReference
Front tread149 cmReference
Rear tread150 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
