Tractor · 2003Unverified

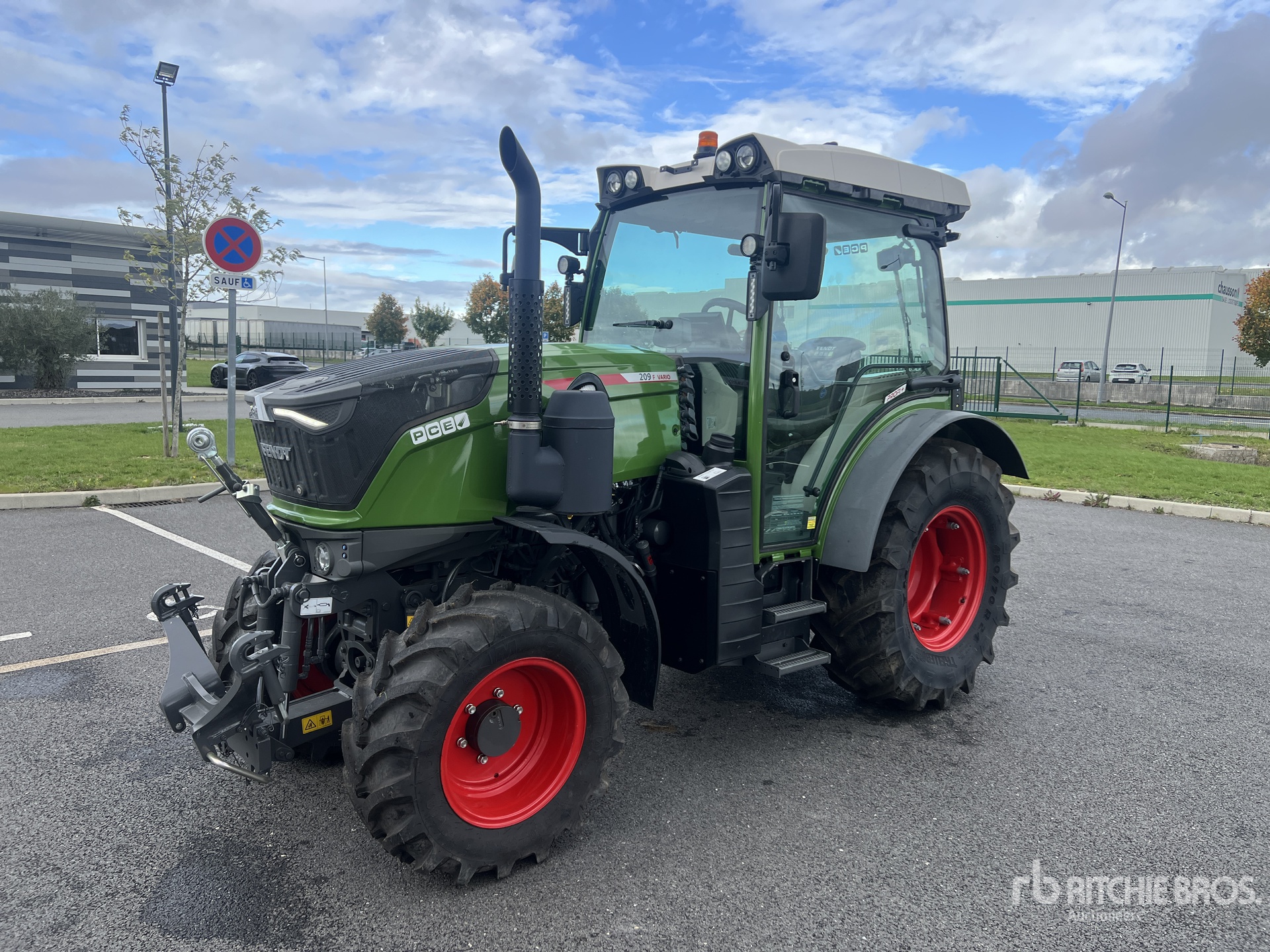

Fendt 209
Fendt 209 — Farmer 200 Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
3099 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with available heat and air-conditioning.Reference
Variants
209SutilityReference
209Vultra-narrowReference
209FnarrowReference
209Pwide specialtyReference
Engine
Deutz 4.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)69.0 kWReference
Engine (net)66.0 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 132 mmReference
Rated Power (net)66.0 kWReference
Rated Power (gross)69.0 kWReference
Rated RPM2300Reference
Torque339.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
21-speed synchromeshReference
21-speed shuttleReference
TypesynchromeshReference
Gears21 forward and 6 reverseReference
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).Reference
TypeshuttleReference
Gears21 forward and reverseReference
Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 or 3Reference
Pump flow46.9 lpmReference
Pump flow74.2 lpmReference
Rear Type2Reference
Front HitchoptionalReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Rear PTO Type540/750/groundReference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase223 cmReference
Weight3099 kgReference
Front tire335/80R18Reference
Rear tire480/70R30Reference
Standard tires (ag)Front: 335/80R18. Rear: 480/70R30Reference
Optional tires (ag)Front: 311.2R20. Rear: 380/85R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 16.9R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 420/85R30Reference
Optional tires (ag)Front: 405/70R20. Rear: 480/70R30Reference
Optional tires (ag)Front: 420/65R20. Rear: 480/70R30Reference
Optional tires (ag)Front: 420/65R20. Rear: 540/65R30Reference
Length369 cmReference
Width196 cmReference
Height249 cmReference
Max weight5299 kgReference
Front tread149 cmReference
Rear tread150 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
