Tractor · 2003Unverified

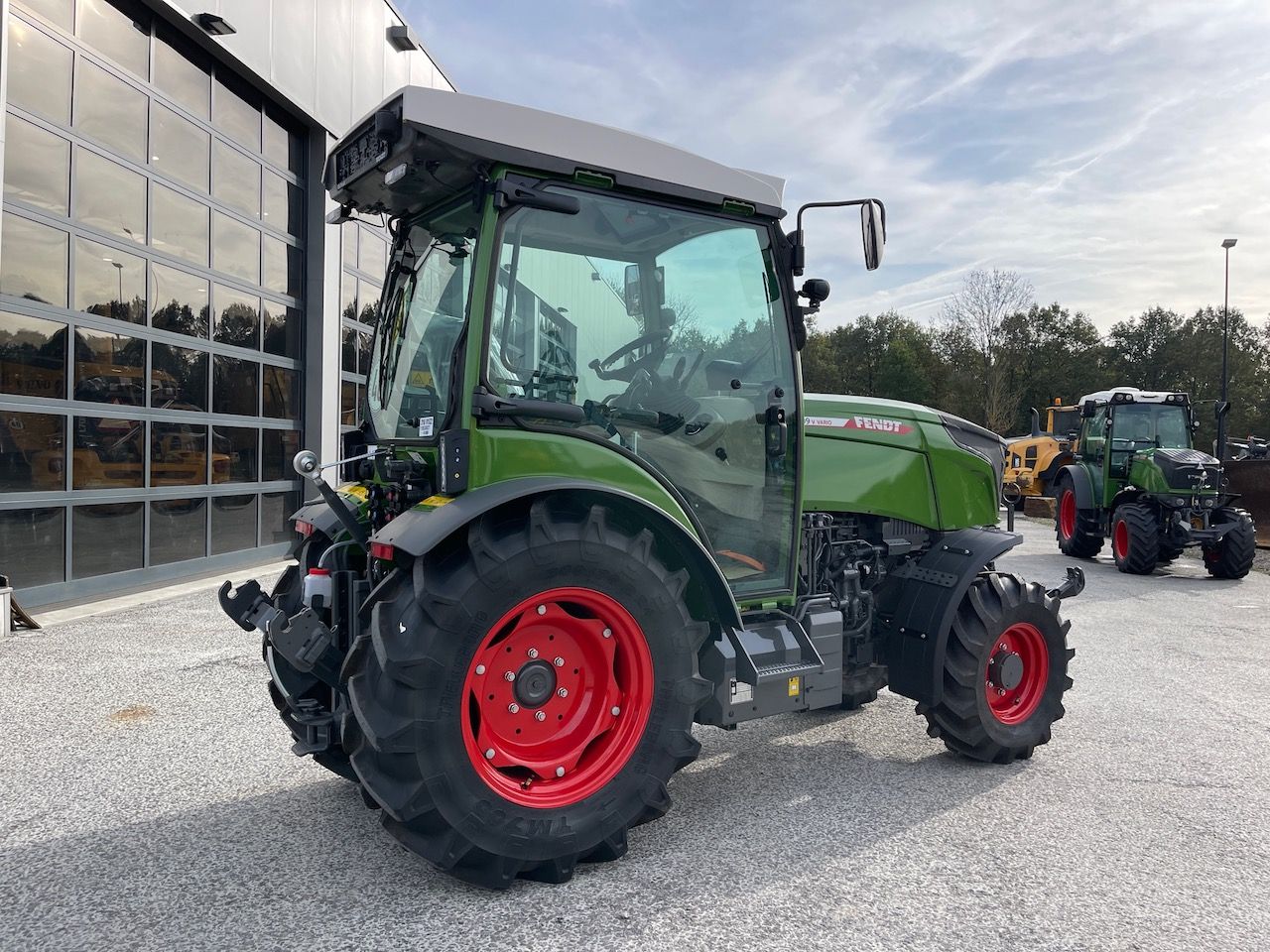

Fendt 209V
Fendt 209V — Farmer 200 Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
5291 to 6063 pounds
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with available heat and air-conditioning. Two-post mid-ROPS available.Reference
Variants
209SutilityReference
209Vultra-narrowReference
209FnarrowReference
209Pwide specialtyReference
Engine
Deutz 4.3L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine (gross)69.0 kWReference
Engine (net)66.0 kWReference
DeutzReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 132 mmReference
Rated Power (net)66.0 kWReference
Rated Power (gross)69.0 kWReference
Rated RPM2300Reference
Torque339.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchromeshReference
20-speed shuttleReference
TypesynchromeshReference
Gears20 forward and 6 reverseReference
TypeshuttleReference
Gears20 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Rear valves4Reference
Mid valves6Reference
Pump flow74.2 lpmReference
Pump flow46.9 lpmReference
Rear lift2713 kgReference
Front lift2429 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Rear PTO Type540/750/groundReference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
208V Wheelbase212 cmReference
208F Wheelbase218 cmReference
208P Wheelbase221 cmReference
Weight5291 to 6063 poundsReference
Front tire10.0/75-15.3Reference
208V Rear tire320/85R24Reference
208V Standard tires (ag)Front: 10.0/75-15.3. Rear: 320/85R24Reference
208F Standard tires (ag)Front: 280/70R18. Rear: 12.4R28Reference
208P Standard tires (ag)Front: 280/80R18. Rear: 380/85R28Reference
208V Length355 cmReference
208F Length354 cmReference
208P Length366 cmReference
208V Width115 cmReference
208F Width137 cmReference
208P Width166 cmReference
208V2399 kgReference
208F2679 kgReference
208P2750 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Capacities
208V Max capacity3999 kgReference
208F Max capacity3999 kgReference
208P Max capacity5299 kgReference
Fendt 209V Height
208V Cab235 cmReference
208F Cab242 cmReference
208P Cab242 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
