Tractor · 2010Unverified
Fendt 210 Vario
Fendt 210 Vario — Model year 2010-20172017-20192020-2025 · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Weight
3870 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. Air-conditioning available.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank124.9 LReference
Engine (gross)73.0 kWReference
Engine (net)66.0 kWReference
Engine (max)77.0 kWReference
AGCO PowerReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (net)66.0 kWReference
Rated Power (gross)73.0 kWReference
Maximum Power (net)73.0 kWReference
Maximum Power (gross)77.0 kWReference
Rated RPM2100Reference
Torque408.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
TransmissionVarioReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Rear valves4Reference
Mid valves2Reference
Pump flow48.1 lpmReference
Pump flow76.1 lpmReference
Controlposition and draft controlReference
Rear lift4203 kgReference
Front lift2490 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540/ground/1000Reference
Engine RPM540@1900Reference
Engine RPM540E@1560Reference
Engine RPM1000@1900Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase229 cmReference
Weight3870 kgReference
Front tire380/70R24Reference
Rear tire480/70R34Reference
Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference
Optional tires (ag)Front: 320/70R24. Rear: 420/85R30Reference
Optional tires (ag)Front: 320/70R24. Rear: 480/70R30Reference
Optional tires (ag)Front: 440/65R24. Rear: 540/65R34Reference
Optional tires (ag)Front: 270/80R32. Rear: 270/95R44Reference
Optional tires (ag)Front: 425/75R20. Rear: 600/65R30Reference
Length406 cmReference
Width216 cmReference
Height (cab)252 cmReference
Ground clearance44 cmReference
Front tread168 cmReference
Rear tread166 cmReference
3870 kgReference
Max Drawbar1999 kgReference

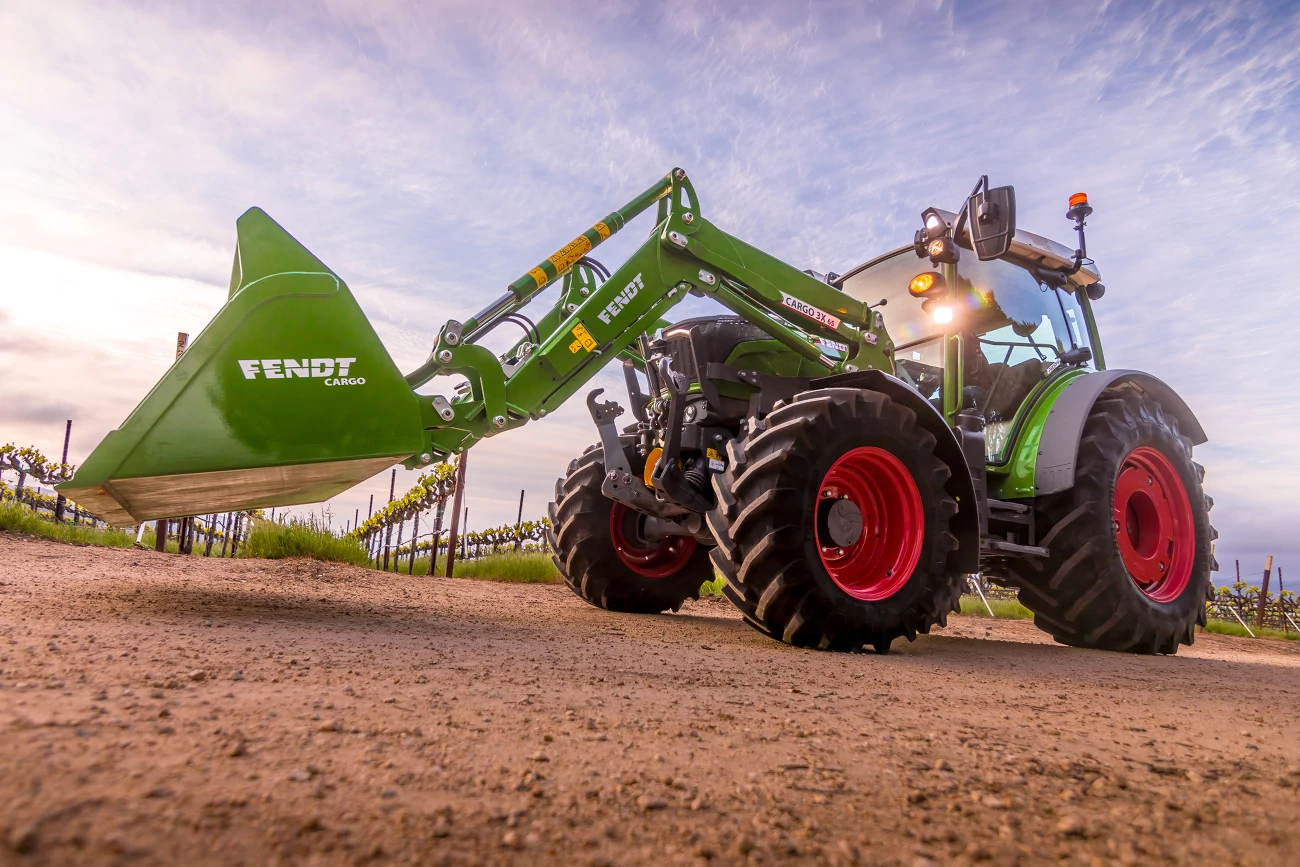

Fendt 210 Vario attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts14Reference
Battery volts12Reference
Battery AH90Reference
Capacities
Max capacity6500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
