Tractor · 2010Unverified

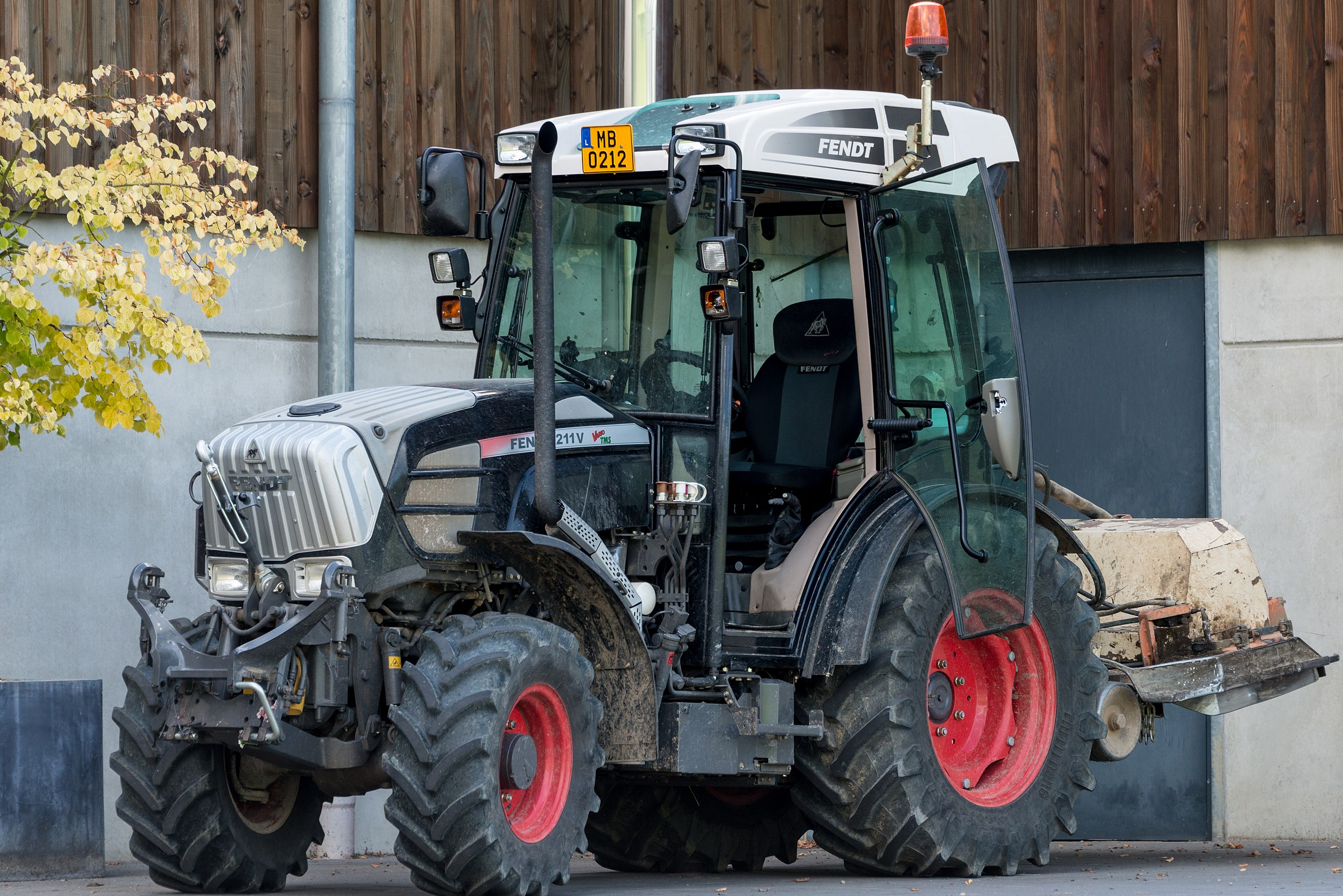

Fendt 211V
Fendt 211V — Model year 2010-20172017-20192020-2025 · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Weight
5688 to 6790 pounds
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. Air-conditioning available. Two-post ROPS available.Reference
Engine
AGCO Power 3.3L 3-cyl dieselReference
Fuel tank76.1 LReference
Engine (gross)74.0 kWReference
Engine (net)74.0 kWReference
Engine (max)85.0 kWReference
AGCO PowerReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (net)74.0 kWReference
Rated Power (gross)74.0 kWReference
Maximum Power (net)81.0 kWReference
Maximum Power (gross)85.0 kWReference
Rated RPM2100Reference
Torque458.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
TransmissionVarioReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Pressure200.0 barReference
Rear valves4Reference
Mid valves6Reference
Pump flow76.1 lpmReference
Pump flow106.0 lpmReference
211V Rear lift2775 kgReference
211F Rear lift2417 kgReference
211P Rear lift3133 kgReference
209V Front lift2380 kgReference
209F Front lift2380 kgReference
209P Front lift2540 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540/540E/groundReference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase215 cmReference
Weight5688 to 6790 poundsReference
Front tire7.5L15Reference
211V Rear tire280/85R24Reference
211V Standard tires (ag)Front: 7.5L15. Rear: 280/85R24Reference
211F Standard tires (ag)Front: 280/70R18. Rear: 12.4R28Reference
211P Standard tires (ag)Front: 280/80R18. Rear: 380/85R28Reference
211V Length357 cmReference
211F Length368 cmReference
211P Length370 cmReference
211V Width130 cmReference
211F Width137 cmReference
211P Width171 cmReference
211V Height (ROPS)241 cmReference
211P Height (ROPS)250 cmReference
211V ROPS2580 kgReference
211V Cab2780 kgReference
211F2859 kgReference
211P ROPS2859 kgReference
211P Cab3079 kgReference
Max Drawbar1500 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging volts14Reference
Battery volts12Reference
Battery AH50Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
