Tractor · 2006Unverified

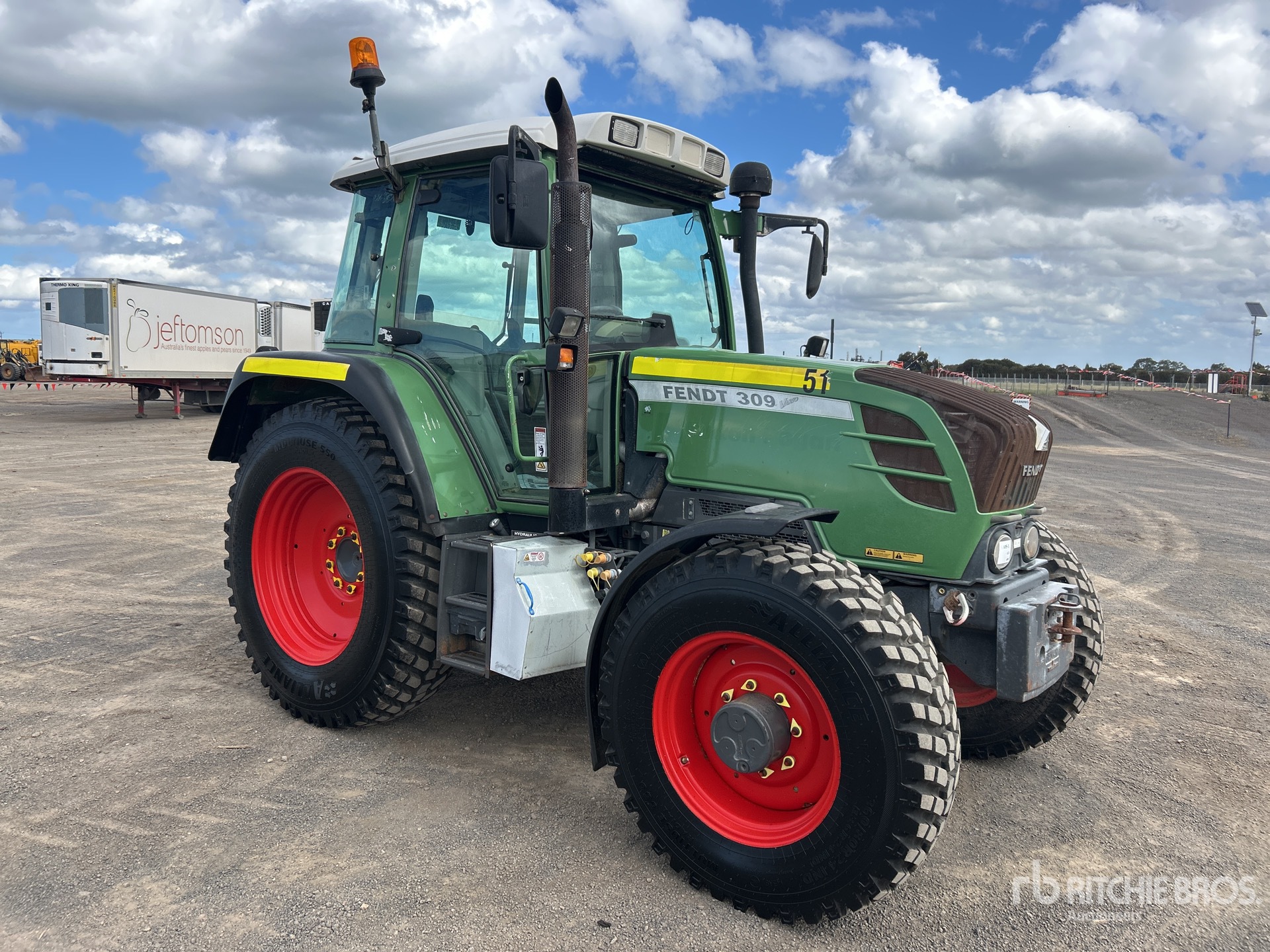

Fendt 309 Vario

Name: Fendt 309 Vario
Brand: Fendt

Fendt 309 Vario — Model year 2006-20122012-2014 · 79 hp. Reference specifications; pending source verification.

The Fendt 309 Vario is a tractor model with a rated output of 79 horsepower, positioning it towards the middle of its class in terms of power. Produced between 2006 and 2014, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives through four-wheel drive with a continuously variable transmission. The listed weight for this model is 8378 to 9105 pounds. It is suitable for tasks involving approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Max power

93.9 hp

Weight

8378 to 9105 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

79 hp

Transmissions

Vario

Production years

2006-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Two- or four-wheel driveReference

Power steeringReference

2WD BrakesdrumReference

4WD Brakeswet discReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

Deutz 4.0L 4-cyl dieselReference

Fuel tank210.1 LReference

Engine (net)59.0 kWReference

DeutzReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (net)59.0 kWReference

Maximum Power (net)70.0 kWReference

Fuel systemcommon railReference

Rated RPM2100Reference

Torque407.1 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts12Reference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed137.2 kgReference

Bore and stroke3.98x4.96 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

continuously variable transmissionReference

TransmissionVarioReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Pressure200.0 barReference

Valves2 to 4Reference

Pump flow78.0 lpmReference

Rear lift5381 kgReference

Front lift2996 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Front PTOindependentReference

Front PTO Type540Reference

Front PTO Type1000Reference

Dimensions

Wheelbase234 cmReference

Weight8378 to 9105 poundsReference

Front tire11.00-16Reference

2WD Rear tire480/70R34Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 480/70R34Reference

4WD Standard tires (ag)Front: 380/70R24. Rear: 480/70R34Reference

4WD Optional tires (ag)Front: 14.9R24. Rear: 600/65R34Reference

4WD Optional tires (ag)Front: 270/95R32. Rear: 270/95R48Reference

4WD Optional tires (ag)Front: 425/75R20. Rear: 600/65R30Reference

Length415 cmReference

Width216 cmReference

Height (cab)274 cmReference

Ground clearance43 cmReference

2WD Front tread157 cmReference

4WD Front tread168 cmReference

Rear tread166 cmReference

2WD Operating3800 kgReference

4WD Operating4130 kgReference

Max Drawbar1999 kgReference

Fendt 309 Vario attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps143Reference

Charging volts14Reference

Battery volts12Reference

Battery AH90Reference

Battery size90 AHReference

Attachment overview

Fendt 3S/60 loaderReference

Fendt 3S/63 loaderReference

Capacities

2WD Max capacity6000 kgReference

4WD Max capacity7500 kgReference

Capacity246.4 ciReference

Diesel exhaust fluid (DEF) tank20.1 LReference

General

Make & ModelFendt (a part of AGCO)Reference

Cruise controltrueReference

Hydraulics

Capacity Valves16 ValvesReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,900 psiReference

Rear Hitch maximum lift capacity6,077.7 kgReference

Power

Max Power93.9 hpReference

Rated Power79.1 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Dimensions & weight

Height Over Cab275.6 cmReference

Overall Length415 cmReference

Overall Width216.4 cmReference

Overall weight4,230.2 kgReference

Wheels & tyres

Rear wheel tread range166.1 cmReference

Front Wheel tread range168.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with heat. Air-conditioning optional.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
