Tractor · 2006Unverified

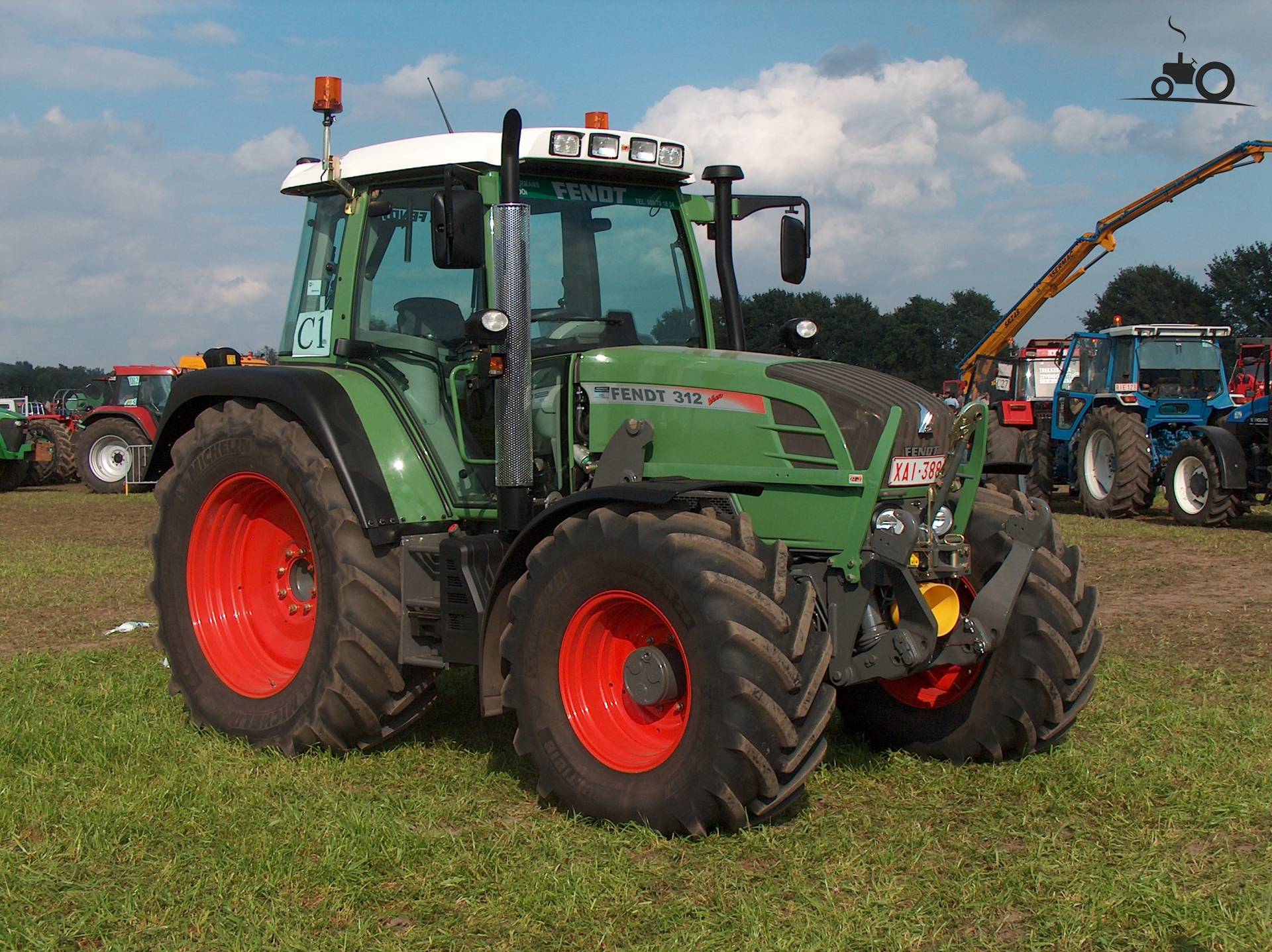

Fendt 312 Vario
Fendt 312 Vario — Model year 2006-20122012-20142014-20192020-2025 · 109 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
109 hp
Weight
4350 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat. Air-conditioning optional.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank210.1 LReference
Engine (net)81.0 kWReference
DeutzReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
Rated Power (net)81.0 kWReference
Maximum Power (net)92.0 kWReference
Fuel systemcommon railReference
Rated RPM2100Reference
Torque515.0 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Oil change500 hReference
Transmission
continuously variable transmissionReference
TransmissionVarioReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow78.0 lpmReference
Rear lift5381 kgReference
Front lift2996 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Front PTOindependentReference
Front PTO Type540Reference
Front PTO Type1000Reference
Dimensions
Wheelbase234 cmReference
Weight4350 kgReference
Front tire480/65R24Reference
Rear tire540/65R38Reference
Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference
4WD Optional tires (ag)Front: 14.9R24. Rear: 600/65R34Reference
4WD Optional tires (ag)Front: 270/95R32. Rear: 270/95R48Reference
4WD Optional tires (ag)Front: 425/75R20. Rear: 600/65R30Reference
Length415 cmReference
Width238 cmReference
Height (cab)274 cmReference
Ground clearance47 cmReference
Front tread182 cmReference
Rear tread180 to 0 cmReference
Operating4350 kgReference
Max Drawbar1999 kgReference
Fendt 312 Vario attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps143Reference
Charging volts14Reference
Battery volts12Reference
Battery AH90Reference
Attachment overview
Fendt 3S/60 loaderReference
Fendt 3S/63 loaderReference
Capacities
Max capacity7500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
