Tractor · 2012Unverified

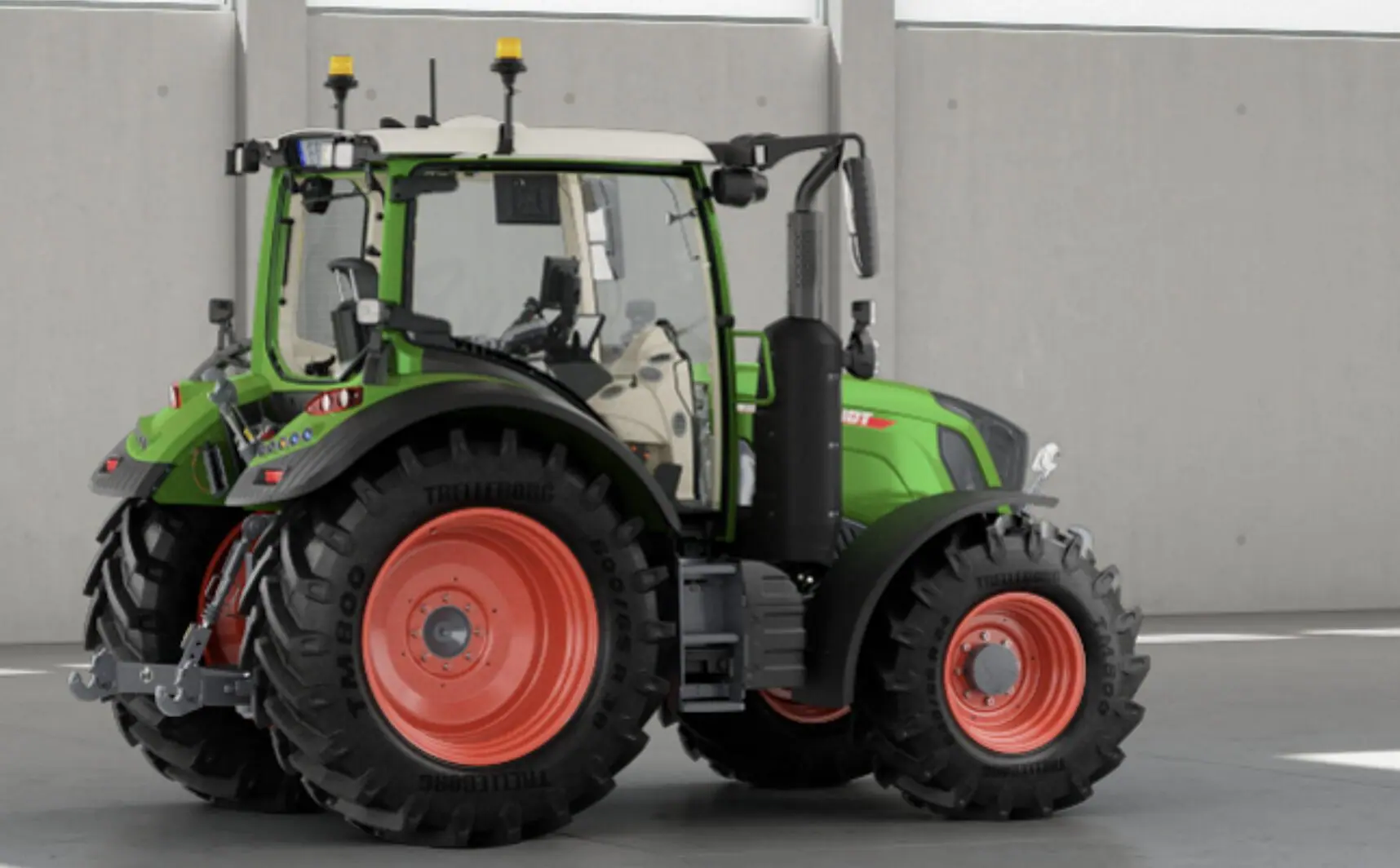

Fendt 313 Vario

Name: Fendt 313 Vario
Brand: Fendt

Fendt 313 Vario — Model year 2012-20142014-20192020-2025 · 118 hp. Reference specifications; pending source verification.

The Fendt 313 Vario is a tractor model rated at 118 hp, falling within the middle of its class for power output. Manufactured from 2012 to 2025, the model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives the four-wheel drive system through a continuously variable transmission. The listed weight of the tractor is 4450 kg, and it is designed for tasks covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

118 hp

Max power

133 hp

Weight

4450 kg

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

118 hp

Recorded weight

4450 kg

Transmissions

Vario

Production years

2012-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

Deutz 4.0L 4-cyl dieselReference

Fuel tank194.9 LReference

Exhaust fluid (DEF)20.1 LReference

Engine (net)88.0 kWReference

DeutzReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (net)88.0 kWReference

Maximum Power (net)100.7 kWReference

Fuel systemcommon railReference

Rated RPM2100Reference

Torque590.1 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts12Reference

Oil change500 hReference

Fuel TypeDieselReference

Rated engine speed2,100 rpmReference

Engine torque at rated speed571 NmReference

Transmission

continuously variable transmissionReference

TransmissionVarioReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Pressure200.0 barReference

Pump flow82.9 lpmReference

Rear lift6077 kgReference

Front lift3079 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Front PTOindependentReference

Front PTO Type540Reference

Front PTO Type1000Reference

Dimensions

Wheelbase234 cmReference

Weight4450 kgReference

Front tire480/65R24Reference

Rear tire540/65R38Reference

Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference

Optional tires (ag)Front: 480/65R24. Rear: 600/65R34Reference

Optional tires (ag)Front: 480/60R28. Rear: 600/60R38Reference

Optional tires (ag)Front: 420/70R24. Rear: 420/85R38Reference

Optional tires (ag)Front: 270/95R32. Rear: 270/95R48Reference

Length415 cmReference

Width238 cmReference

Height (cab)279 cmReference

Ground clearance51 cmReference

Front tread182 cmReference

Rear tread180 cmReference

Operating4450 kgReference

Max Drawbar1999 kgReference

Fendt 313 Vario attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging volts14Reference

Battery volts12Reference

Battery AH90Reference

Attachment overview

Fendt 3X/65 loaderReference

Fendt 3X/70 loaderReference

Fendt 4X/75 loaderReference

Capacities

Max capacity8500 kgReference

Capacity4,400 ccReference

Diesel exhaust fluid (DEF) tank22.7 LReference

Power

Max Power133 hpReference

Rated Power123 hpReference

PTO

PTO Power99 hpReference

PTO torque rise38.9 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

General

Cruise controltrueReference

SCV controlJoystickReference

Hydraulics

Pump Rated Output (total)110 l/minReference

Remote Valves4Reference

Number of rear selective control valves (SCVs)Option 1: 4\\nOption 2: 3Reference

Rear Hitch category (SAE designation)Category 2/3Reference

Rear Hitch maximum lift capacity5,960 kgReference

Dimensions & weight

Overall Length4,336 mmReference

Overall Width2,320 mmReference

Overall weight5,009.9 kgReference

Track width1,800 mmReference

Wheels & tyres

Rear Wheel Type540/65R38Reference

Front Wheel Type480/65R24Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
