Tractor · 1998Unverified

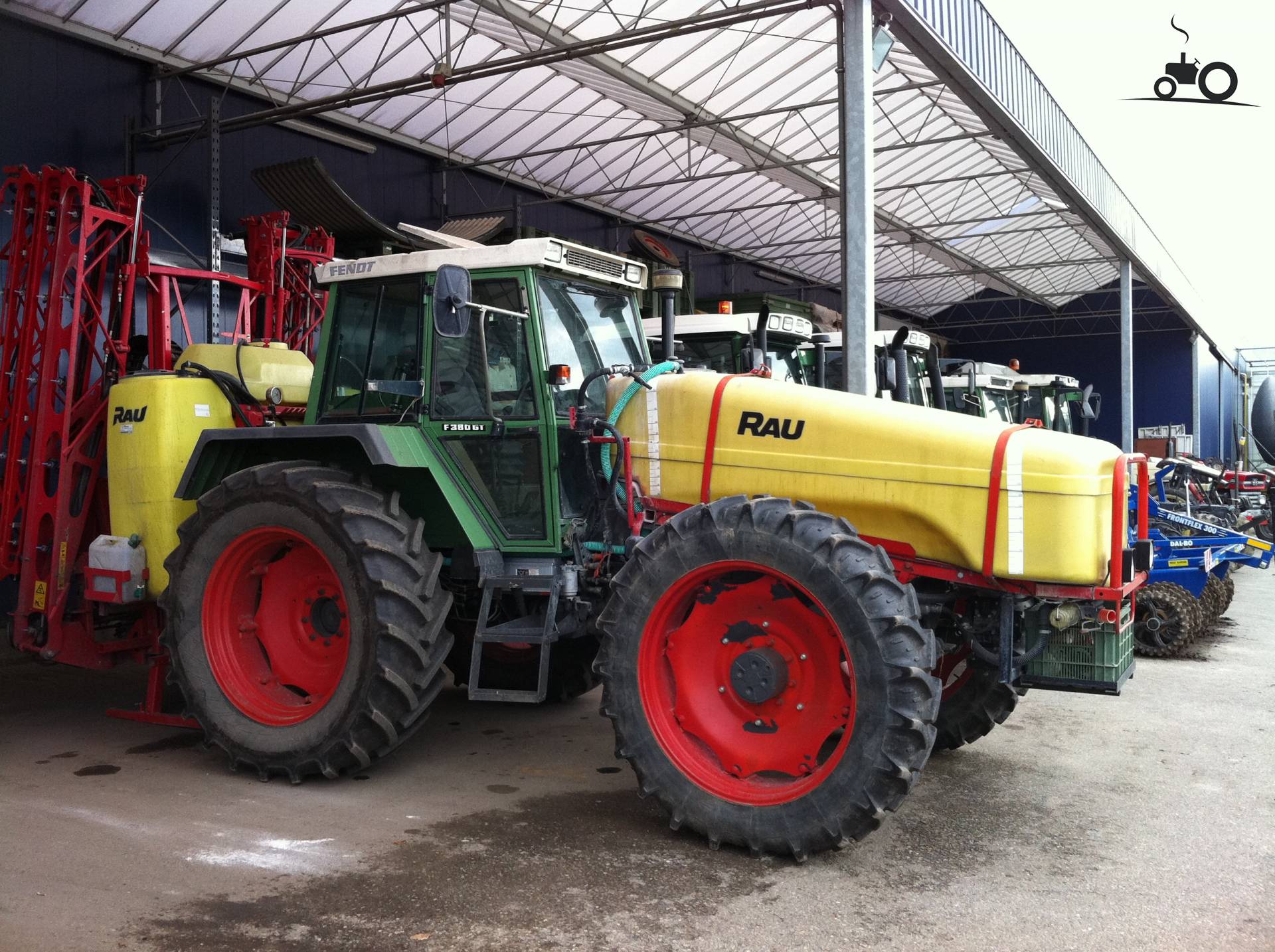

Fendt 380GHA

Name: Fendt 380GHA
Brand: Fendt

Fendt 380GHA — Allrad-GT Series. Reference specifications; pending source verification.

The Fendt 380GHA is a tractor designed for various operations. Produced from 1998 to 2004, this model features a 4-cylinder turbocharged diesel engine, paired with four-wheel drive and a 21-speed gearbox. It has a listed operating weight of 4295 kg. Specifications for this model are detailed in the table below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Weight

4295 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded weight

4295 kg

Transmissions

21-speed

Production years

1998-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Tool Carrier tractorReference

Four-wheel driveReference

Power steeringReference

Hydraulic disc brakesReference

Cab standard with heater.Reference

Variants

380GTAstandard chassisReference

380GHAhigh-crop chassisReference

Engine

KHD 4.1L 4-cyl dieselReference

KHDReference

turbocharged dieselReference

4-cylinderReference

Displacement4.1 LReference

Bore/Stroke102 x 125 mmReference

Starter typeelectricReference

Transmission

21-speedReference

Gears21 forward and 6 reverseReference

Three gears (1-3) plus reverse (R) in two ranges with three-speed electric shift. An additional three overdrive speeds are available on the gear shift.Reference

PTO & Hydraulics

Pump flow40.1 lpmReference

Total flow68.1 lpmReference

Steering flow28.0 lpmReference

Rear TypeIIReference

Rear lift4379 kgReference

Front HitchIIReference

Front lift2182 kgReference

Rear PTOindependentReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase259 cmReference

Weight4295 kgReference

Front tire9.5-44Reference

Rear tire11.2-48Reference

Standard tires (ag)Front: 9.5-44. Rear: 11.2-48Reference

Optional tires (ag)Front: 9.5-44. Rear: 12.4-46Reference

Optional tires (ag)Front: 12.4-36. Rear: 480/70R34Reference

Optional tires (ag)Front: 16.9-30. Rear: 16.9-34Reference

Optional tires (ag)Front: 16.9-30. Rear: 480/70R34Reference

Length424 cmReference

Width210 cmReference

Height284 cmReference

Shipping weight4295 kgReference

Max weight6999 kgReference

Ground clearance65 cmReference

Front tread180 to 199 cmReference

Rear tread180 to 199 cmReference

Fendt 380GHA attachments

front-end loaderReference

Electrical

Charging systemalternatorReference

Charging amps55Reference

Charging volts14Reference

Battery AH110Reference

Speeds

With 16.9R34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
