Tractor · 1998Unverified

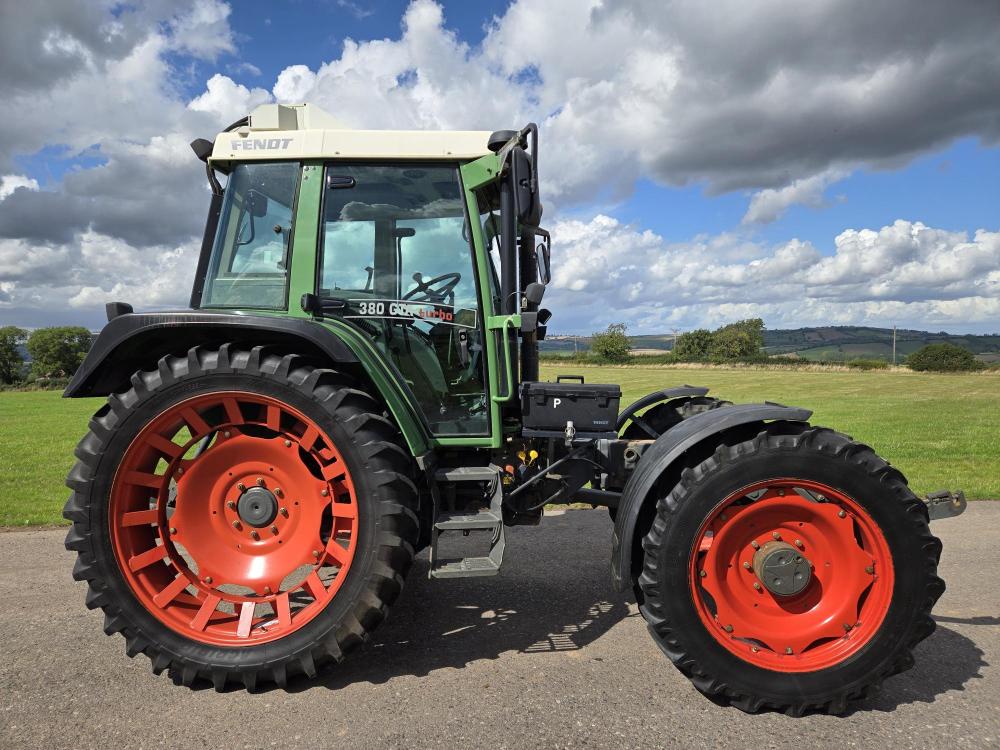

Fendt 380GTA
Fendt 380GTA — Allrad-GT Series · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
3979 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Tool Carrier tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with heater.Reference
Variants
380GTAstandard chassisReference
380GHAhigh-crop chassisReference
Engine
KHD 4.1L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine69.9 kWReference
KHDReference
turbocharged dieselReference
4-cylinderReference
air-cooledReference
Displacement4.1 LReference
Bore/Stroke102 x 125 mmReference
Power69.9 kWReference
Rated RPM2400Reference
Torque348.1 NmReference
Torque RPM1500Reference
Transmission
21-speedReference
Gears21 forward and 6 reverseReference
Three gears (1-3) plus reverse (R) in two ranges with three-speed electric shift. An additional three overdrive speeds are available on the gear shift.Reference
PTO & Hydraulics
Pump flow40.1 lpmReference
Total flow68.1 lpmReference
Steering flow28.0 lpmReference
Rear TypeIIReference
Rear lift4379 kgReference
Front HitchIIReference
Front lift2182 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase249 cmReference
Weight3979 kgReference
Front tire12.4R24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 12.4R24. Rear: 16.9R34Reference
Optional tires (ag)Front: 12.4R24. Rear: 13.6R38Reference
Length424 cmReference
Width195 cmReference
Height262 cmReference
Shipping weight3979 kgReference
Max weight6999 kgReference
Ground clearance45 cmReference
Front tread156 to 180 cmReference
Rear tread166 to 199 cmReference
Fendt 380GTA attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts14Reference
Battery AH110Reference
Attachment overview
Fendt 3 loaderReference
Fendt 3S loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
