Tractor · 2006Unverified

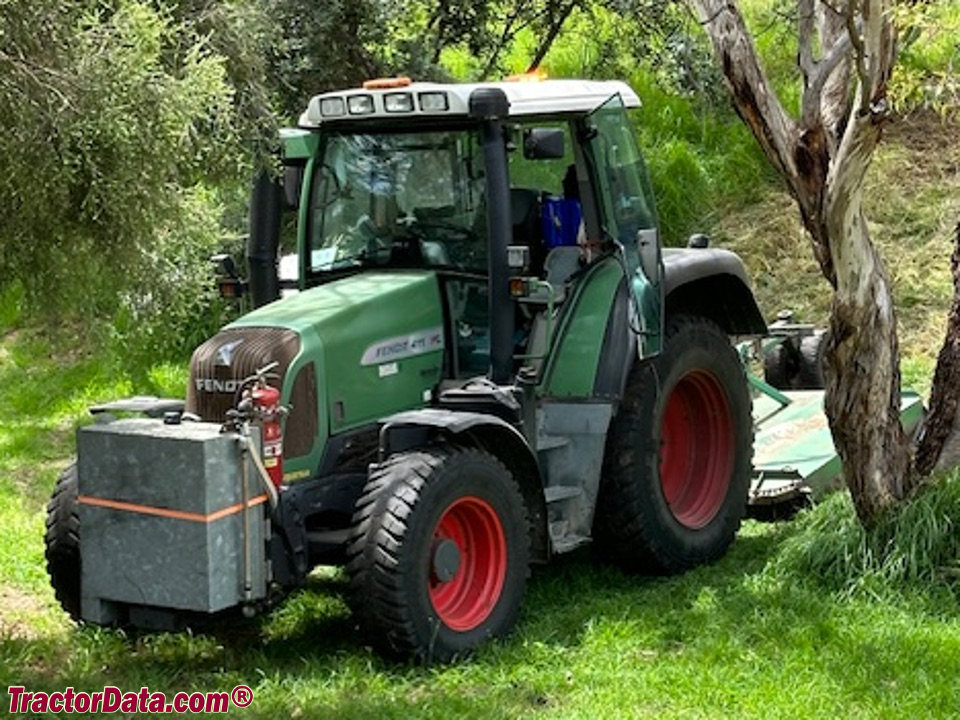

Fendt 411 Vario

Name: Fendt 411 Vario
Brand: Fendt

Fendt 411 Vario — 400 Vario Series · 113 hp. Reference specifications; pending source verification.

The Fendt 411 Vario is a tractor with a rating of 113 hp, positioning it at a mid-point within its class in terms of power output. It was produced between 2006 and 2012. This model is equipped with a 4-cylinder turbocharged intercooled diesel engine, which is cooled by a liquid system and drives a four-wheel drive system via a continuously variable transmission. The tractor has a listed weight of 5400 kg and is designed for use on areas ranging from approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

113 hp

Max power

118 hp

Weight

5400 kg

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

113 hp

Recorded weight

5400 kg

Transmissions

Vario

Production years

2006-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

Deutz 4.0L 4-cyl dieselReference

Fuel tank244.9 LReference

Engine (gross)84.0 kWReference

Engine (net)74.0 kWReference

Engine (max)88.0 kWReference

DeutzReference

turbocharged intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (net)74.0 kWReference

Rated Power (gross)84.0 kWReference

Maximum Power (net)85.0 kWReference

Maximum Power (gross)88.0 kWReference

Rated RPM2100Reference

Torque505.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed169 kgReference

Bore and stroke3.98x4.96 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously variable transmissionReference

TransmissionVarioReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionsContinuously Variable Transmission : Infinite F and Infinite RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Pump flow74.9 lpmReference

Pump flow110.1 lpmReference

Rear TypeIII/IIReference

Rear lift7449 kgReference

Front lift3099 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Front PTOindependentReference

Front PTO Type540Reference

Front PTO Type1000Reference

Dimensions

Wheelbase241 cmReference

Weight5400 kgReference

Front tire480/65R24Reference

Rear tire540/65R38Reference

Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference

Optional tires (ag)Front: 270/95R32. Rear: 270/95R48Reference

Optional tires (ag)Front: 540/65R24. Rear: 600/65R38Reference

Optional tires (ag)Front: 480/60R28. Rear: 650/60R38Reference

Length425 cmReference

Width233 cmReference

Height290 cmReference

Max weight9000 kgReference

Ground clearance46 cmReference

Front tread182 cmReference

Rear tread180 cmReference

Fendt 411 Vario attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Charging volts14Reference

Battery volts12Reference

Battery AH90Reference

Battery size90 AHReference

Attachment overview

Fendt 4X/75 loaderReference

Fendt 4X/60 loaderReference

General

Make & ModelFendt (a part of AGCO)Reference

Cruise controlavailableReference

SCV controlJoystickReference

Capacities

Capacity246.4 ciReference

Hydraulics

Capacity Valves16 ValvesReference

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch maximum lift capacity7,449.8 kgReference

Power

Max Power118 hpReference

Rated Power112.7 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Dimensions & weight

Overall Height290.1 cmReference

Overall Length425.2 cmReference

Overall Width233.9 cmReference

Overall weight5,400 kgReference

Wheels & tyres

Rear wheel tread range180.1 cmReference

Front Wheel tread range182.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with heat. Air-conditioning optional.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
