Tractor · 2012Unverified

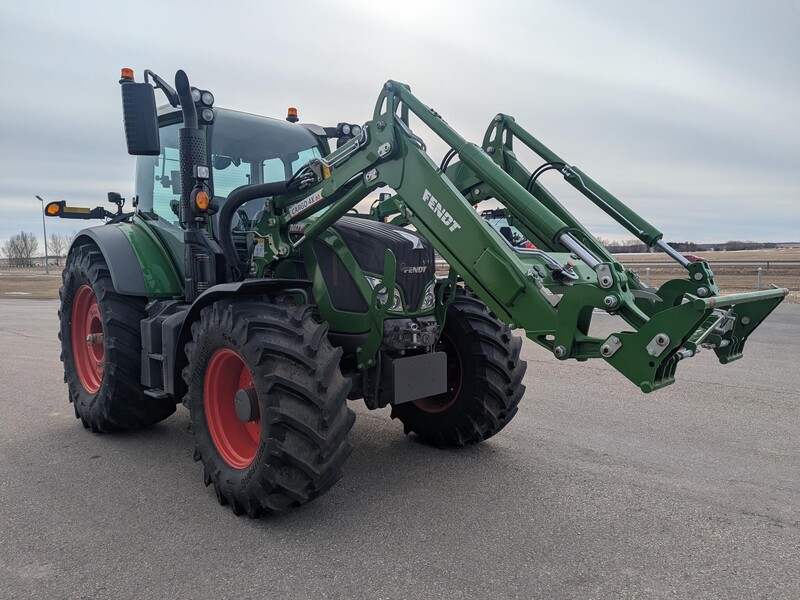

Fendt 512 Vario
Fendt 512 Vario — 500 Vario Series · 122 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
122 hp
Weight
6050 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
Deutz 4.0L 4-cyl dieselReference
Fuel tank297.9 LReference
Exhaust fluid (DEF)31.0 LReference
Engine (gross)91.0 kWReference
Engine (net)81.0 kWReference
Engine (max)96.0 kWReference
Deutz TCD 4.1 L4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke101 x 126 mmReference
EmissionsTier IVReference
Rated Power (net)81.0 kWReference
Rated Power (gross)91.0 kWReference
Maximum Power (net)92.0 kWReference
Maximum Power (gross)96.0 kWReference
Rated RPM2100Reference
Torque550.1 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmissionReference
TransmissionVario ML90Reference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Rear valves4 or 5Reference
Front valves1 or 2Reference
Pump flow74.9 lpmReference
Pump flow110.1 lpmReference
Pump flow157.8 lpmReference
Controlposition and draft controlReference
Rear lift7780 kgReference
Front lift3420 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase256 cmReference
Weight6050 kgReference
Front tire480/65R28Reference
Rear tire600/68R38Reference
Standard tires (ag)Front: 480/65R28. Rear: 600/68R38Reference
Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length445 cmReference
Width250 cmReference
Height (cab)293 cmReference
Ground clearance53 cmReference
Front tread187 cmReference
Rear tread185 cmReference
6050 kgReference
Max Drawbar1999 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity10500 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
