Tractor · 2012Unverified

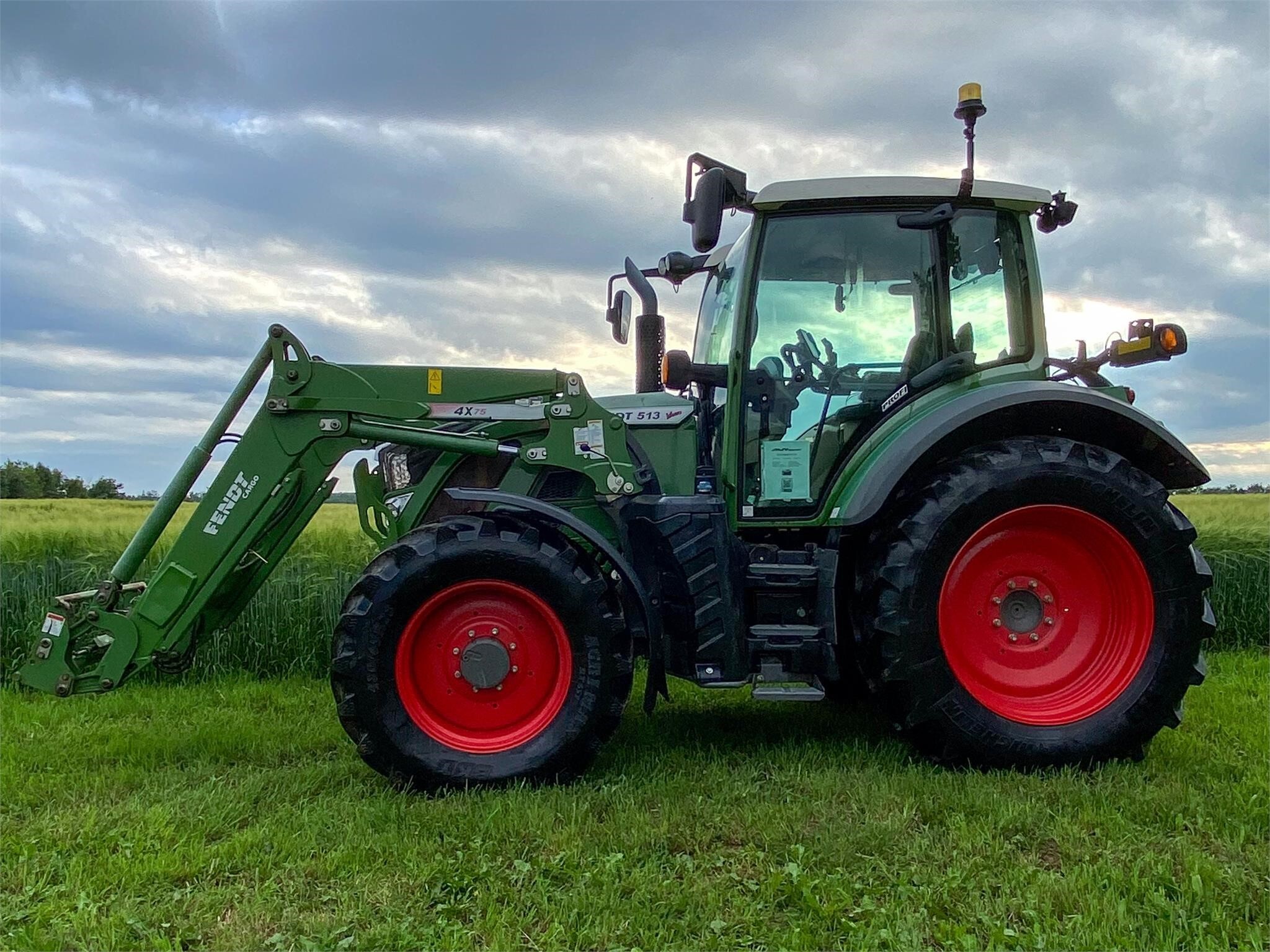

Fendt 513 Vario

Name: Fendt 513 Vario
Brand: Fendt

Fendt 513 Vario — 500 Vario Series · 133 hp. Reference specifications; pending source verification.

The Fendt 513 Vario is a tractor model with a rated output of 133 hp, classifying it as a high-powered machine in its category. Manufactured in 2012, this model features a 4-cylinder turbocharged diesel liquid-cooled engine and a four-wheel drive system with a continuously variable transmission. Its listed weight is 6050 kg, suitable for jobs ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

133 hp

Max power

141 hp

Weight

6050 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

133 hp

Recorded weight

6050 kg

Transmissions

Vario ML90

Production years

2012-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

Deutz 4.0L 4-cyl dieselReference

Fuel tank297.9 LReference

Exhaust fluid (DEF)31.0 LReference

Engine (gross)99.0 kWReference

Engine (net)88.0 kWReference

Engine (max)104.0 kWReference

Deutz TCD 4.1 L4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke101 x 126 mmReference

EmissionsTier IVReference

Rated Power (net)88.0 kWReference

Rated Power (gross)99.0 kWReference

Rated Power (gross)98.0 kWReference

Maximum Power (net)99.0 kWReference

Maximum Power (gross)103.0 kWReference

Maximum Power (gross)104.0 kWReference

Rated RPM2100Reference

Torque590.1 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

Rated engine speed2,100 rpmReference

Engine torque at rated speed604 NmReference

Transmission

continuously variable transmissionReference

TransmissionVario ML90Reference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Rear valves4 or 5Reference

Front valves1 or 2Reference

Pump flow74.9 lpmReference

Pump flow110.1 lpmReference

Pump flow157.8 lpmReference

Controlposition and draft controlReference

Rear lift7780 kgReference

Front lift3420 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540E/1000/1000EReference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase256 cmReference

Weight6050 kgReference

Front tire480/65R28Reference

Rear tire600/68R38Reference

Standard tires (ag)Front: 480/65R28. Rear: 600/68R38Reference

Optional tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length445 cmReference

Width250 cmReference

Height (cab)293 cmReference

Ground clearance53 cmReference

Front tread187 cmReference

Rear tread185 cmReference

6050 kgReference

Max Drawbar1999 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Max capacity10500 kgReference

Capacity4,038 ccReference

Diesel exhaust fluid (DEF) tank31.0 LReference

Power

Max Power141 hpReference

Rated Power133 hpReference

PTO

PTO Power114 hpReference

PTO torque rise40 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

General

Cruise controltrueReference

SCV controlJoystickReference

Hydraulics

Pump Rated Output (total)158 l/minReference

Remote Valves7Reference

Number of rear selective control valves (SCVs)Option 1: 4\\nOption 2: 5Reference

Rear Hitch category (SAE designation)Category 2/3Reference

Rear Hitch maximum lift capacity7,890 kgReference

Dimensions & weight

Overall Length4,453 mmReference

Overall Width2,501 mmReference

Overall weight6,050 kgReference

Track width1,860 mmReference

Wheels & tyres

Rear Wheel Type600/65R38Reference

Front Wheel Type480/65R28Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
