Tractor · 2006Unverified

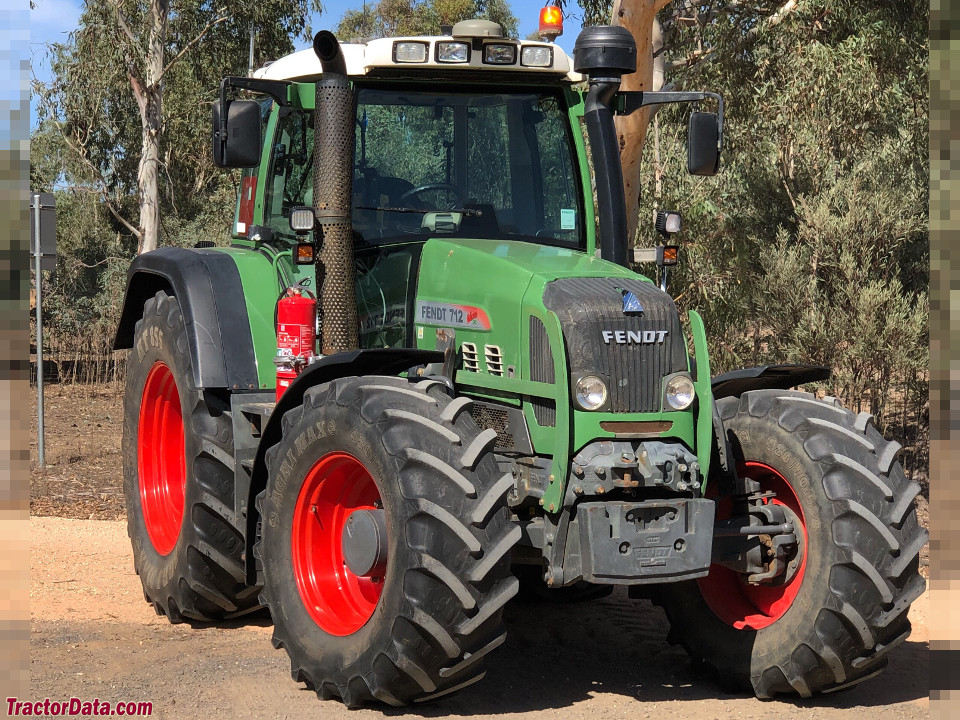

Fendt 712 Vario

Name: Fendt 712 Vario
Brand: Fendt

Fendt 712 Vario — 700 Vario Series · 132 hp. Reference specifications; pending source verification.

The Fendt 712 Vario is a tractor model, rated at 132 hp, which positions it among the higher-powered machines in its class. Production of the 712 Vario took place between 2006 and 2011. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, driving a four-wheel drive system via a continuously variable transmission. The listed weight of the tractor is 6604 kg, suitable for tasks covering approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

132 hp

Max power

136 hp

Weight

6604 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

132 hp

Recorded weight

6604 kg

Transmissions

Fendt Vario

Production years

2006-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Built in Marktoberdorf, GermanyReference

Four-wheel driveReference

Wet discs brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank339.9 LReference

Engine (gross)98.4 kWReference

Engine (net)85.8 kWReference

Engine (max)101.4 kWReference

Deutz TCD 2012 L06 4VReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsTier IIIaReference

Emission controlegrReference

Rated Power (net)85.8 kWReference

Rated Power (gross)98.4 kWReference

Maximum Power (net)96.9 kWReference

Maximum Power (gross)101.4 kWReference

Rated RPM2100Reference

Torque571.0 NmReference

Torque RPM1450Reference

Starter power3.1 kWReference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IIIa | EGRReference

Engine torque at rated speed191 kgReference

Bore and stroke3.976x4.961 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hReference

Transmission

continuously variable transmission (IVT)Reference

TransmissionFendt VarioReference

Typecontinuously variable transmission (IVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Total flow110.1 lpmReference

Total flow154.0 lpmReference

Rear TypeIII/IIReference

Rear lift5548 kgReference

Front lift2503 kgReference

Rear PTO Type540/540E/1000Reference

Front PTO Type540 (optional)Reference

Front PTO Type1000 (optional)Reference

Dimensions

Wheelbase270 cmReference

Weight6604 kgReference

Length466 cmReference

Width251 cmReference

Height295 cmReference

Max weight11498 kgReference

Ground clearance55 cmReference

Front tread194 cmReference

Rear tread192 cmReference

Fendt 712 Vario attachments

front-end loaderReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Battery volts12Reference

Battery AH170Reference

Battery size170 AHReference

Attachment overview

Fendt 3SX/70 loaderReference

Fendt 3SX/75 loaderReference

General

Make & ModelFendtReference

Cruise controltrueReference

SCV controlJoystickReference

Capacities

Capacity369.6 ciReference

Hydraulics

Capacity Valves24 valvesReference

Pump Rated Output (total)40.68 gpmReference

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch maximum lift capacity5,548.8 kgReference

Power

Max Power136 hpReference

Rated Power132 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Steering & brakes

BrakesWet discs brakesReference

Dimensions & weight

Overall Height295.9 cmReference

Overall Length466.9 cmReference

Overall Width252 cmReference

Overall weight6,604.3 kgReference

Wheels & tyres

Rear wheel tread range192 cmReference

Front Wheel tread range194.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning.Reference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
