Tractor · 2006Unverified

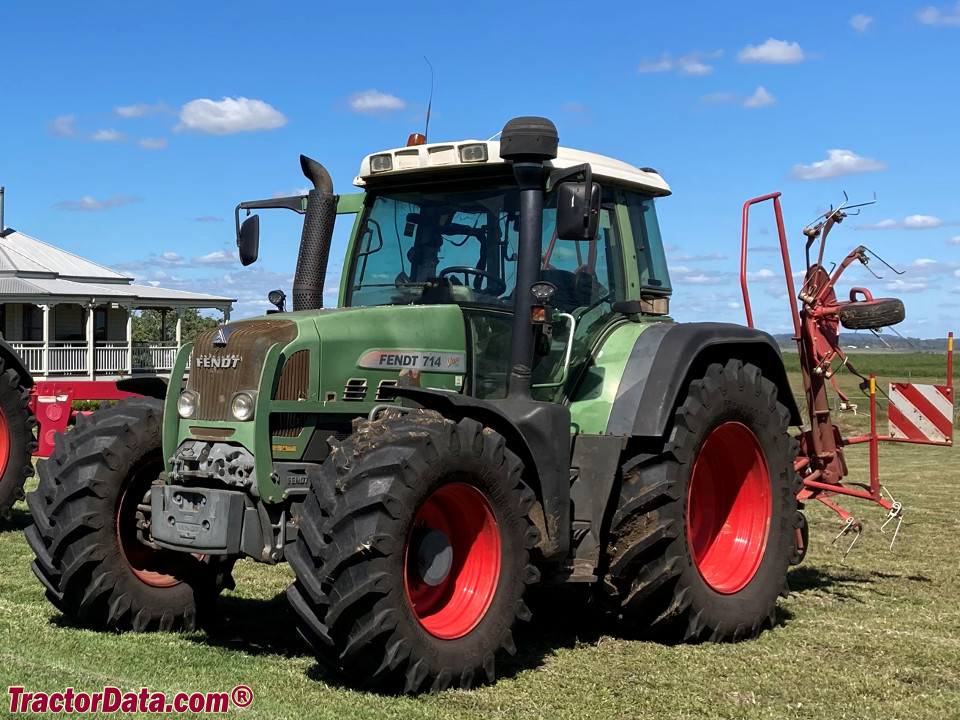

Fendt 714 Vario

Name: Fendt 714 Vario
Brand: Fendt

Fendt 714 Vario — Model year 2006-20112012-2022 · 147 hp. Reference specifications; pending source verification.

The Fendt 714 Vario is a tractor with a power output of approximately 147 hp, positioning it at the more powerful end of its class. It was manufactured from 2006 to 2022. The tractor features a 6-cylinder turbocharged intercooled diesel engine, which is liquid-cooled and paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 6604 kg, suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

147 hp

Max power

150 hp

Weight

6604 kg

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

147 hp

Recorded weight

6604 kg

Transmissions

Fendt Vario

Production years

2006-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Row-Crop tractorReference

Built in Marktoberdorf, GermanyReference

Four-wheel driveReference

Wet discs brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank339.9 LReference

Engine (gross)109.6 kWReference

Engine (net)96.9 kWReference

Engine (max)112.6 kWReference

Deutz TCD 2012 L06 4VReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsTier IIIaReference

Emission controlegrReference

Rated Power (net)96.9 kWReference

Rated Power (gross)109.6 kWReference

Maximum Power (net)108.1 kWReference

Maximum Power (gross)112.6 kWReference

Rated RPM2100Reference

Torque640.0 NmReference

Torque RPM1450Reference

Starter power3.1 kWReference

Oil change500 hReference

Fuel TypeDieselReference

Rated engine speed2,100 rpmReference

Transmission

continuously variable transmission (IVT)Reference

TransmissionFendt VarioReference

Typecontinuously variable transmission (IVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Total flow110.1 lpmReference

Total flow154.0 lpmReference

Rear TypeIII/IIReference

Rear lift5548 kgReference

Front lift2503 kgReference

Rear PTO Type540/540E/1000Reference

Front PTO Type540 (optional)Reference

Front PTO Type1000 (optional)Reference

Dimensions

Wheelbase270 cmReference

Weight6604 kgReference

Length466 cmReference

Width251 cmReference

Height299 cmReference

Max weight11498 kgReference

Ground clearance55 cmReference

Front tread194 cmReference

Rear tread192 cmReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Battery volts12Reference

Battery AH170Reference

Fendt 3SX/70 Loader

Height (to pin):405 cmReference

Dump reach:125 cmReference

Dump angle:52°Reference

Rollback angle:43°Reference

Breakout force (lift):3109 kgReference

Lift to full height (at pin):2334 kgReference

Fendt 3SX/75 Loader

Height (to pin):405 cmReference

Dump reach:125 cmReference

Dump angle:52°Reference

Rollback angle:43°Reference

Breakout force (lift):3629 kgReference

Lift to full height (at pin):2732 kgReference

Capacities

Capacity6,056 ccReference

Diesel exhaust fluid (DEF) tank38.0 LReference

Power

Max Power150 hpReference

Rated Power144 hpReference

PTO

PTO Power110 hpReference

PTO torque rise43.0 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000E rpmReference

Front PTO PowerAvailableReference

General

Cruise controltrueReference

Hydraulics

Pump Rated Output (total)193 l/minReference

Remote Valves7Reference

Rear Hitch category (SAE designation)Cat 3Reference

Rear Hitch maximum lift capacity10,360 kgReference

Dimensions & weight

Overall Length5,240 mmReference

Overall Width2,550 mmReference

Overall weight7,734.7 kgReference

Track width1,920 mmReference

Wheels & tyres

Rear Wheel Type580/70R38Reference

Front Wheel Type480/70R28Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
