Tractor · 2006Unverified

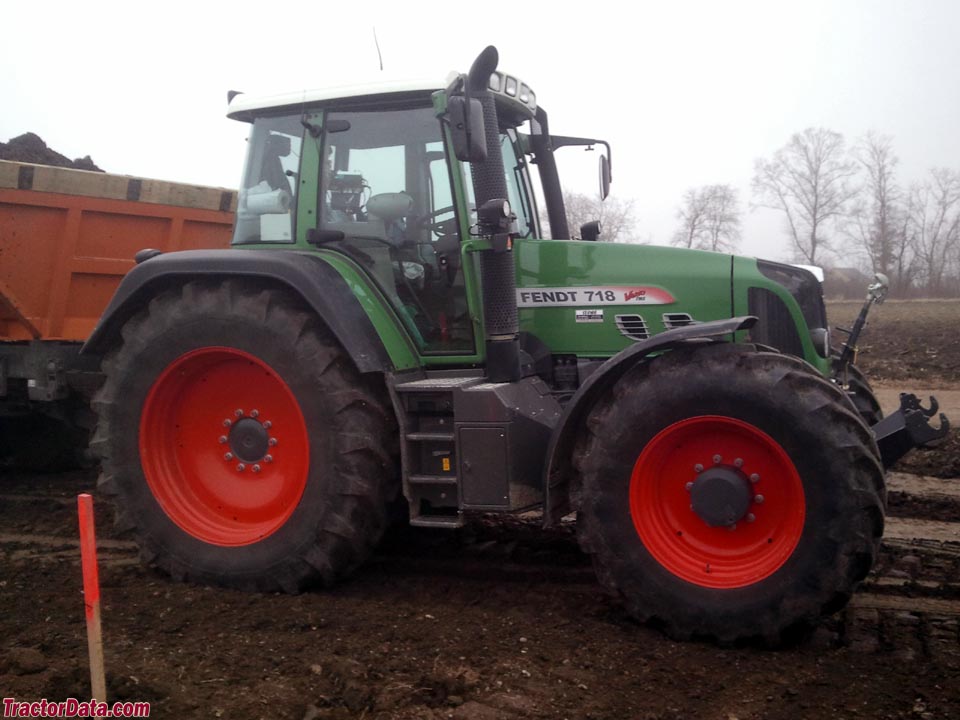

Fendt 718 Vario
Fendt 718 Vario — Model year 2006-20112012-2022 · 181 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
181 hp
Weight
6985 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Row-Crop tractorReference
Built in Marktoberdorf, GermanyReference
Four-wheel driveReference
Wet discs brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank339.9 LReference
Engine (gross)135.0 kWReference
Engine (net)123.0 kWReference
Engine (max)138.7 kWReference
Deutz TCD 2012 L06 4VReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
EmissionsTier IIIaReference
Emission controlegrReference
Rated Power (net)123.0 kWReference
Rated Power (gross)135.0 kWReference
Maximum Power (net)134.2 kWReference
Maximum Power (gross)138.7 kWReference
Rated RPM2100Reference
Torque780.1 NmReference
Torque RPM1450Reference
Starter power3.1 kWReference
Oil change500 hReference
Transmission
continuously variable transmission (IVT)Reference
TransmissionFendt VarioReference
Typecontinuously variable transmission (IVT)Reference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Total flow110.1 lpmReference
Total flow154.0 lpmReference
Rear TypeIII/IIReference
Rear lift9258 kgReference
Front lift2503 kgReference
Rear PTO Type540/540E/1000Reference
Front PTO Type540 (optional)Reference
Front PTO Type1000 (optional)Reference
Dimensions
Wheelbase272 cmReference
Weight6985 kgReference
Length475 cmReference
Width257 cmReference
Height299 cmReference
Max weight11498 kgReference
Ground clearance55 cmReference
Front tread194 cmReference
Rear tread192 cmReference
Fendt 718 Vario attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Battery volts12Reference
Battery AH170Reference
Attachment overview
Fendt 3SX/70 loaderReference
Fendt 3SX/75 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
