Tractor · 2012Unverified

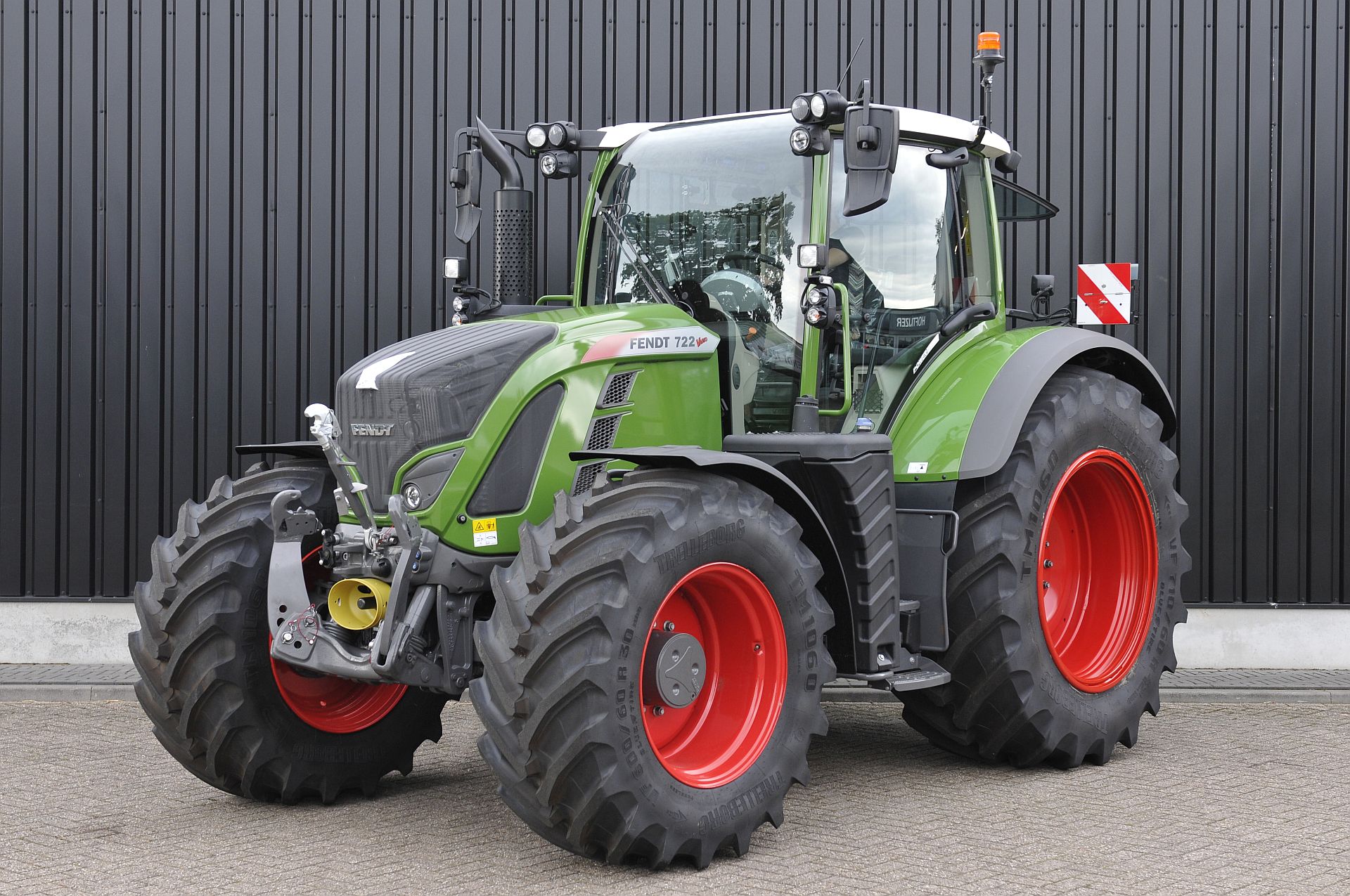

Fendt 722 Vario

Name: Fendt 722 Vario
Brand: Fendt

Fendt 722 Vario — Model year 2012-20222023-2025 · 222 hp. Reference specifications; pending source verification.

The Fendt 722 Vario is a tractor with an output of approximately 222 horsepower, positioning it at the higher power end of its class. It was manufactured from 2012 to 2025. Power is provided by a 6-cylinder turbocharged intercooled electric liquid-cooled engine, paired with a four-wheel drive system and continuously variable transmission. Its listed operating weight is 7980 kg, and it is suitable for operations ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

222 hp

Max power

228 hp

Weight

7980 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

222 hp

Recorded weight

7980 kg

Transmissions

continuously-variable transmission (CVT)

Production years

2012-2025

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Row-Crop tractorReference

Four-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Wet disc brakesReference

VisioPlus cab standard with air-conditioning and pneumatic suspension. Variotronic; VarioGuide optionalReference

Engine

Deutz 6.1L 6-cylReference

Fuel tank400.1 LReference

Exhaust fluid (DEF)37.9 LReference

Engine (gross)165.5 kWReference

Engine (net)152.9 kWReference

Engine (max)170.8 kWReference

DeutzReference

turbocharged intercooledReference

6-cylinderReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

Rated Power (net)152.9 kWReference

Rated Power (gross)165.5 kWReference

Maximum Power (net)164.1 kWReference

Maximum Power (gross)170.8 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Starter power4.0 kWReference

Oil change500 hReference

Fuel TypeDieselReference

Rated engine speedOption 1: 1,700 rpm\\nOption 2: 2,100 rpmReference

Transmission

continuously-variable transmission (CVT)Reference

TransmissionML 180Reference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Rear valves2 to 5Reference

Front valves0 to 2Reference

Pump flow109.0 lpmReference

Pump flow152.2 lpmReference

Pump flow193.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000/1000EReference

Front PTO Type1000Reference

Dimensions

Wheelbase278 cmReference

Weight7980 kgReference

Front tire540/65R30Reference

Rear tire650/65R42Reference

Standard tires (ag)Front: 540/65R30. Rear: 650/65R42Reference

Optional tires (ag)Front: 600/65R30. Rear: 710/70R38Reference

Optional tires (ag)Front: 600/65R28. Rear: 650/75R38Reference

Optional tires (ag)Front: 600/60R30. Rear: 710/60R42Reference

Optional tires (ag)Front: 320/85R38. Rear: 320/90R54Reference

Length524 cmReference

Width255 cmReference

Height305 cmReference

Shipping weight7980 kgReference

Max weight13999 kgReference

Ground clearance50 cmReference

Front tread195 cmReference

Rear tread192 cmReference

Fendt 722 Vario attachments

front-end loaderReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Charging volts14Reference

Battery volts12Reference

Battery AH180Reference

Attachment overview

Fendt 4X/85 loaderReference

Fendt 5X/85 loaderReference

Fendt 5X/90 loaderReference

Capacities

Capacity6,056 ccReference

Diesel exhaust fluid (DEF) tank38.0 LReference

Power

Max Power228 hpReference

Rated Power222 hpReference

PTO

PTO Power185 hpReference

PTO torque rise39.0 percentReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

General

Cruise controltrueReference

Hydraulics

Pump Rated Output (total)193 l/minReference

Remote Valves10Reference

Number of rear selective control valves (SCVs)5Reference

Rear Hitch category (SAE designation)Cat 3Reference

Rear Hitch maximum lift capacity11,050 kgReference

Dimensions & weight

Overall Length5,516 mmReference

Overall Width2,550 mmReference

Overall weight7,790 kgReference

Track width1,920 mmReference

Wheels & tyres

Rear Wheel Type650/65R42Reference

Front Wheel Type540/65R30Reference

Operator station

Cab AvailabilitytrueReference

Seat SuspensiontrueReference

Steering & brakes

Steering typePower SteeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
