Tractor · 2006Unverified

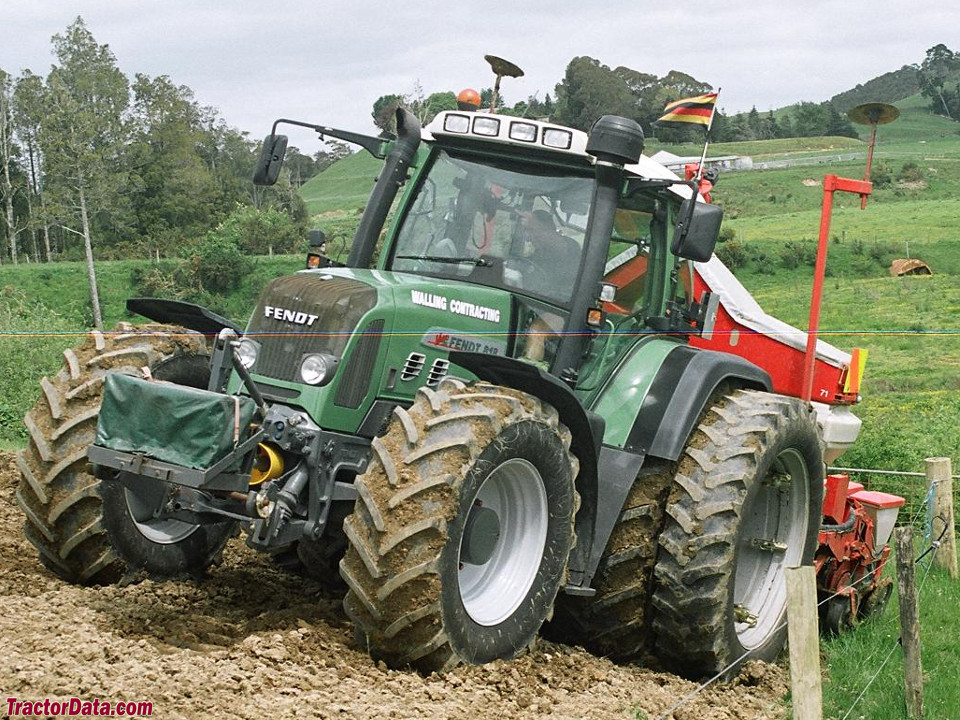

Fendt 818 Vario

Name: Fendt 818 Vario
Brand: Fendt

Fendt 818 Vario · 186 hp. Reference specifications; pending source verification.

The Fendt 818 Vario is a tractor rated at 186 hp, positioning it among the higher-powered machines in its class. It was first manufactured in 2006, and is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. The tractor features four-wheel drive with a continuously variable transmission. Its listed weight is 7021 kg, and it is designed for tasks involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

186 hp

Max power

192 hp

Weight

7021 kg

Catalogue coverage

Variants represented

Richest spec table

93 rows

Recorded power

186 hp

Recorded weight

7021 kg

Transmissions

Fendt Vario

Production years

2006-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Built in Marktoberdorf, GermanyReference

Four-wheel driveReference

Wet discs brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank339.9 LReference

Engine (gross)138.7 kWReference

Engine (net)126.8 kWReference

Engine (max)143.2 kWReference

Deutz TCD 2012 L06 4VReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsTier IIIaReference

Emission controlegrReference

Rated Power (net)126.8 kWReference

Rated Power (gross)138.7 kWReference

Maximum Power (net)138.0 kWReference

Maximum Power (gross)143.2 kWReference

Rated RPM2100Reference

Torque802.8 NmReference

Torque RPM1450Reference

Starter power3.0 kWReference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IIIa | egrReference

Engine torque at rated speed268.5 kgReference

Bore and stroke3.976x4.961 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

continuously variable transmission (IVT)Reference

TransmissionFendt VarioReference

Typecontinuously variable transmission (IVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)119.3 kWReference

Typeload sensingReference

Pressure200.0 barReference

Valves3 or 4Reference

Total flow110.1 lpmReference

Rear lift6053 kgReference

Front lift2503 kgReference

Rear PTO Type540/540E/1000Reference

Front PTO Type1000 (optional)Reference

Dimensions

Wheelbase271 cmReference

Weight7021 kgReference

Length474 cmReference

Width274 cmReference

Height302 cmReference

Max weight12499 kgReference

Ground clearance55 cmReference

Front tread193 cmReference

Rear tread191 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Battery CCA1020Reference

Battery volts12Reference

Battery AH170Reference

Battery size170 AHReference

Total cold cranking amps1,020 CCAReference

General

Make & ModelFendtReference

Cruise controlAvailableReference

SCV controlJoystickReference

Country of manufacturerMarktoberdoft, GermanyReference

Capacities

Capacity369.6 ciReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)29.1 gpmReference

Hydraulics Typeload sensingReference

Maximum operating pressure2,900 psiReference

Remote Valves3 or 4 ValvesReference

Rear Hitch maximum lift capacity6,053.2 kgReference

Power

Max Power192 hpReference

Rated Power186 hpReference

PTO

PTO Power160 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Dimensions & weight

Overall Height302.3 cmReference

Overall Length475 cmReference

Overall Width274.3 cmReference

Overall weight7,021.6 kgReference

Wheels & tyres

Rear wheel tread range191.8 cmReference

Front Wheel tread range193 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab available with air-conditionerReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
