Tractor · 2010Unverified

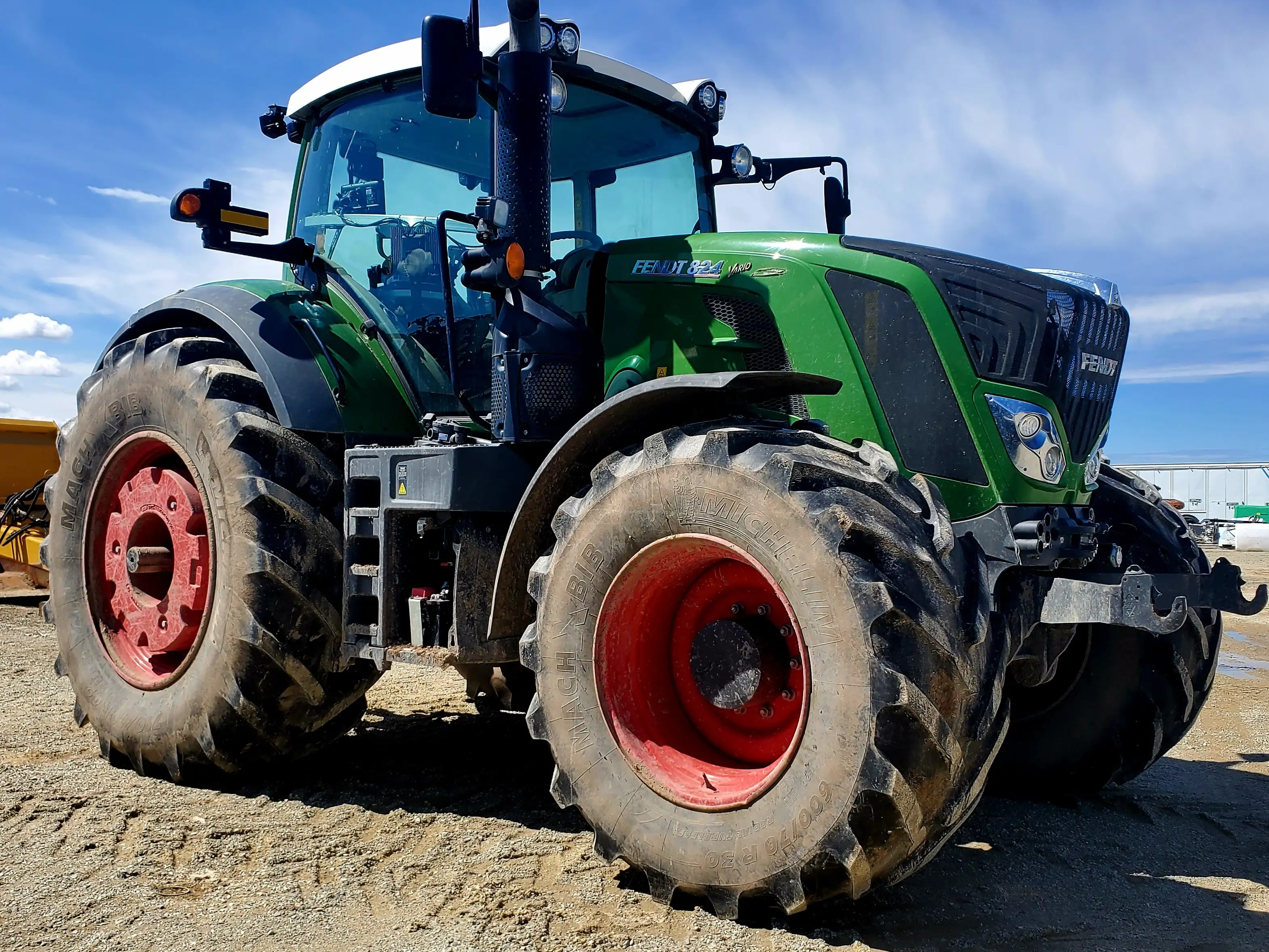

Fendt 824 Vario
Fendt 824 Vario · 237 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
237 hp
Weight
9298 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Built in Marktoberdoft, GermanyReference
Four-wheel driveReference
X5 Cab standard with air-conditioning. Optional CD/MP3 player.Reference
Engine
Deutz 6.1L 6-cyl dieselReference
Fuel tank504.9 LReference
Exhaust fluid (DEF)32.2 LReference
Engine (gross)176.7 kWReference
Engine (net)164.1 kWReference
Engine (max)184.9 kWReference
DeutzReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.1 LReference
Bore/Stroke101 x 126 mmReference
EmissionsStage 3bReference
EmissionsTier IV interimReference
Emission controldefReference
Rated Power (net)164.1 kWReference
Rated Power (gross)176.7 kWReference
Maximum Power (net)179.0 kWReference
Maximum Power (gross)184.9 kWReference
Rated RPM2100Reference
Torque1040.2 NmReference
Torque RPM1450Reference
Starter power4.0 kWReference
Oil change500 hReference
Transmission
continuously variable transmission (IVT)Reference
TransmissionFendt VarioReference
Typecontinuously variable transmission (IVT)Reference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Total flow109.0 lpmReference
Total flow152.2 lpmReference
Total flow193.0 lpmReference
Rear lift11330 kgReference
Front lift4536 kgReference
Rear PTO Type540E/1000Reference
Rear PTO Type1000/1000E (optional)Reference
Front PTO Type1000 (optional)Reference
Dimensions
Wheelbase290 cmReference
Weight9298 kgReference
Front tire540/65R30Reference
Rear tire650/65R42Reference
Standard tires (ag)Front: 540/65R30. Rear: 650/65R42Reference
Optional tires (ag)Front: 540/65R34. Rear: 650/85R38Reference
Optional tires (ag)Front: 540/65R34. Rear: 650/75R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 710/70R42Reference
Optional tires (ag)Front: 600/70R30. Rear: 800/70R38Reference
Optional tires (ag)Front: 540/65R34. Rear: 900/60R38Reference
Length527 cmReference
Width255 cmReference
Height326 cmReference
Ground clearance51 cmReference
Front tread199 cmReference
Rear tread197 cmReference
9298 kgReference
Electrical
Charging systemalternatorReference
Charging amps300Reference
Battery volts12Reference
Battery AH170Reference
Capacities
Max capacity13998 kgReference
Max capacity15998 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
