Tractor · 2010Unverified

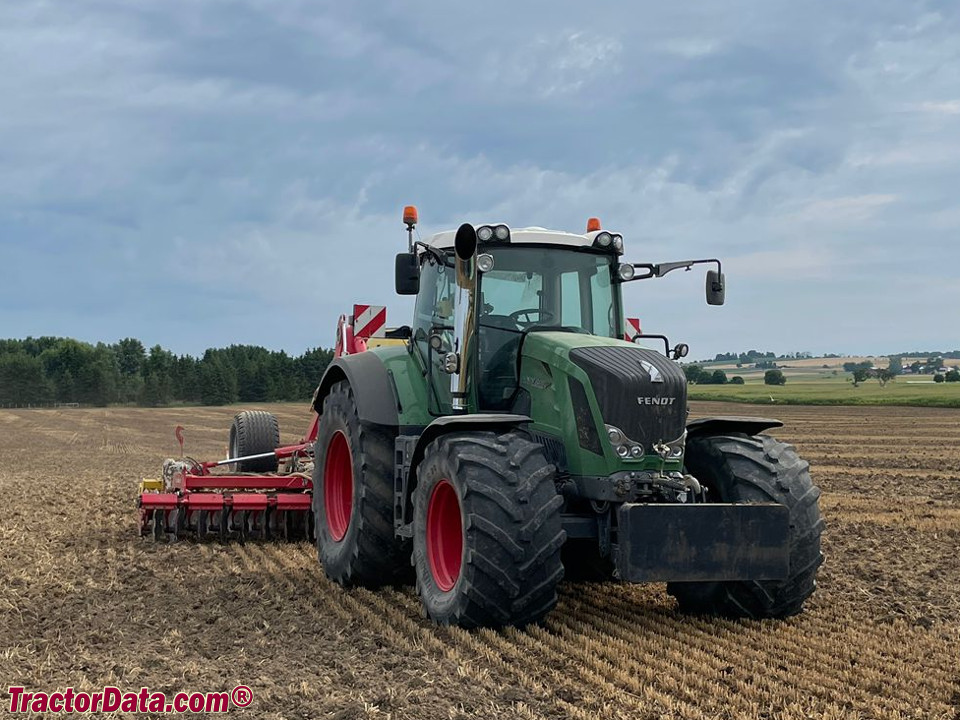

Fendt 828 Vario

Name: Fendt 828 Vario
Brand: Fendt

Fendt 828 Vario · 276 hp. Reference specifications; pending source verification.

The Fendt 828 Vario is a tractor with a rated power output of 276 hp, categorising it at the more powerful end of its class. Introduced in 2010, this model is powered by a 6-cylinder turbocharged, intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its listed operating weight is 9448 kg, making it suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

276 hp

Max power

287 hp

Weight

9448 kg

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

276 hp

Recorded weight

9448 kg

Transmissions

Fendt Vario

Production years

2010-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendtReference

Built in Marktoberdoft, GermanyReference

Four-wheel driveReference

X5 Cab standard with air-conditioning. Optional CD/MP3 player.Reference

Engine

Deutz 6.1L 6-cyl dieselReference

Fuel tank504.9 LReference

Exhaust fluid (DEF)32.2 LReference

Engine (gross)205.8 kWReference

Engine (net)193.9 kWReference

Engine (max)214.0 kWReference

DeutzReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.1 LReference

Bore/Stroke101 x 126 mmReference

EmissionsStage 3bReference

EmissionsTier IV interimReference

Emission controldefReference

Rated Power (net)193.9 kWReference

Rated Power (gross)205.8 kWReference

Maximum Power (net)208.8 kWReference

Maximum Power (gross)214.0 kWReference

Rated RPM2100Reference

Torque1210.2 NmReference

Torque RPM1450Reference

Starter power4.0 kWReference

Oil change500 hReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceStage 3b | Tier IV interim | defReference

Engine torque at rated speed404.8 kgReference

Bore and stroke3.976x4.961 inchesReference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

continuously variable transmission (IVT)Reference

TransmissionFendt VarioReference

Typecontinuously variable transmission (IVT)Reference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Total flow109.0 lpmReference

Total flow152.2 lpmReference

Total flow193.0 lpmReference

Rear lift11330 kgReference

Front lift4536 kgReference

Rear PTO Type540E/1000Reference

Rear PTO Type1000/1000E (optional)Reference

Front PTO Type1000 (optional)Reference

Dimensions

Wheelbase290 cmReference

Weight9448 kgReference

Front tire540/65R34Reference

Rear tire650/85R38Reference

Standard tires (ag)Front: 540/65R34. Rear: 650/85R38Reference

Optional tires (ag)Front: 540/65R30. Rear: 650/65R42Reference

Optional tires (ag)Front: 540/65R34. Rear: 650/75R42Reference

Optional tires (ag)Front: 600/70R30. Rear: 710/70R42Reference

Optional tires (ag)Front: 600/70R30. Rear: 800/70R38Reference

Optional tires (ag)Front: 540/65R34. Rear: 900/60R38Reference

Length527 cmReference

Width255 cmReference

Height326 cmReference

Ground clearance56 cmReference

Front tread199 cmReference

Rear tread197 cmReference

9448 kgReference

Electrical

Charging systemalternatorReference

Charging amps300Reference

Battery volts12Reference

Battery AH170Reference

Battery size170 AHReference

Capacities

Max capacity13998 kgReference

Max capacity15998 kgReference

Capacity369.6 ciReference

Diesel exhaust fluid (DEF) tank32.2 LReference

General

Make & ModelFendtReference

Cruise controlAvailableReference

SCV controlJoystickReference

Country of manufacturerMarktoberdoft, GermanyReference

Hydraulics

Capacity Valves24 ValvesReference

Pump Rated Output (total)51 gpmReference

Rear Hitch maximum lift capacity11,330.7 kgReference

Power

Max Power287 hpReference

Rated Power276 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Dimensions & weight

Overall Height326.9 cmReference

Overall Length527.3 cmReference

Overall Width255 cmReference

Overall weight9,448.3 kgReference

Wheels & tyres

Rear wheel tread range197.1 cmReference

Front Wheel tread range199.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialX5-cab with integral automatic air-conditioningReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
