Tractor · 2002Unverified

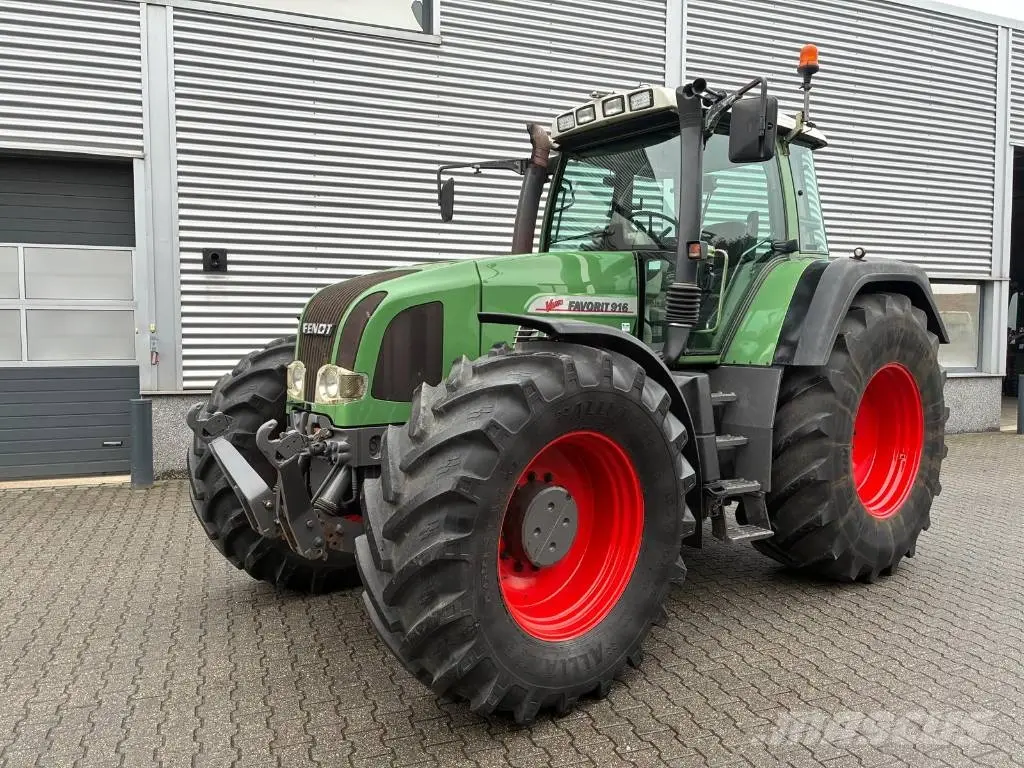

Fendt 916 Vario

Name: Fendt 916 Vario
Brand: Fendt

Fendt 916 Vario — 900 Vario Series · 180 hp. Reference specifications; pending source verification.

The Fendt 916 Vario is a tractor model rated at 180 hp, positioning it among the more powerful machines in its class. It was manufactured from 2002 to 2006, featuring a 6-cylinder turbocharged intercooled diesel liquid-cooled engine. This engine drives a four-wheel drive system, with a listed weight of 8749 kg. The tractor is intended for use on land areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

180 hp

Weight

8749 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

180 hp

Recorded weight

8749 kg

Transmissions

Vario

Production years

2002-2006

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Row-Crop tractorReference

Built in Marktoberdorf, GermanyReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

MAN 6.9L 6-cyl dieselReference

Fuel tank529.9 LReference

Engine (net)134.2 kWReference

MAN D0836Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.9 LReference

Bore/Stroke108 x 125 mmReference

Rated Power (net)134.2 kWReference

Maximum Power (net)147.6 kWReference

Rated RPM2150Reference

Torque825.1 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

continuously-variable transmissionReference

TransmissionVarioReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeload sensingReference

Pressure200.0 barReference

Pump flow112.0 lpmReference

Rear lift9737 kgReference

Front lift5098 kgReference

Rear PTOindependentReference

Rear PTO Type750/1000Reference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase283 cmReference

Weight8749 kgReference

Front tire480/70R34Reference

Rear tire580/70R42Reference

Standard tires (ag)Front: 480/70R34. Rear: 580/70R42Reference

Length494 cmReference

Width255 cmReference

Height309 cmReference

Ground clearance60 cmReference

Front tread199 cmReference

Rear tread197 cmReference

8749 kgReference

Max Drawbar1999 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Max capacity14000 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
