Tractor · 2002Unverified

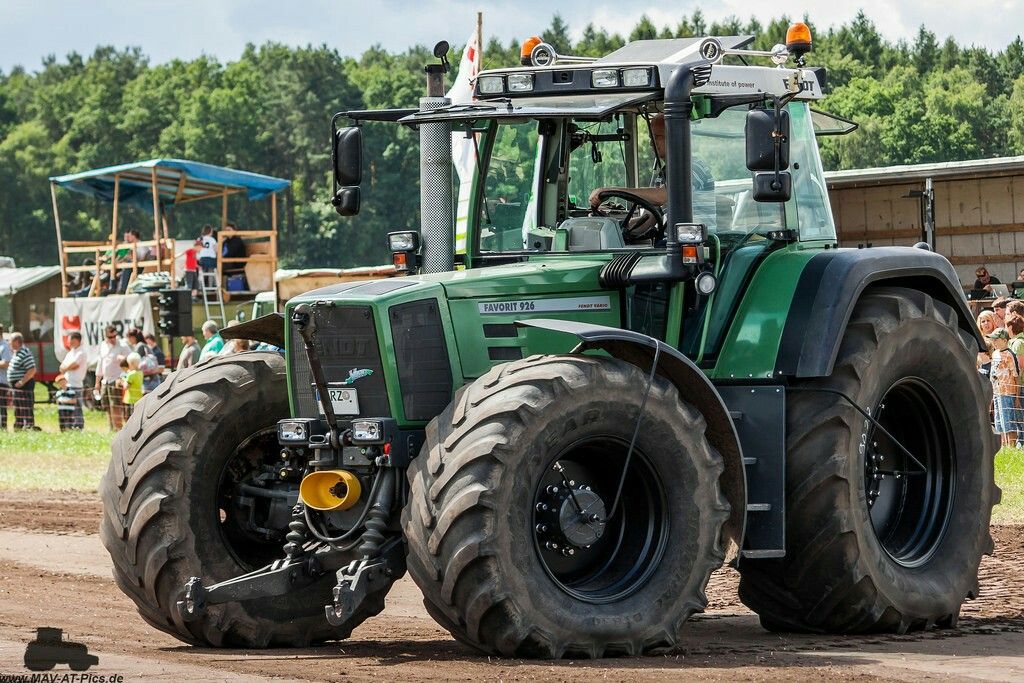

Fendt 926 Vario
Fendt 926 Vario — 900 Vario Series · 270 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
270 hp
Weight
8800 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Row-Crop tractorReference
Built in Marktoberdorf, GermanyReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank529.9 LReference
Engine (net)201.3 kWReference
MAN D0836Reference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Rated Power (net)201.3 kWReference
Maximum Power (net)213.3 kWReference
Rated RPM2250Reference
Torque1179.7 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
continuously-variable transmissionReference
TransmissionVarioReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeload sensingReference
Pressure200.0 barReference
Pump flow117.0 lpmReference
Rear lift11063 kgReference
Front lift5098 kgReference
Rear PTOindependentReference
Rear PTO Type750/1000Reference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase283 cmReference
Weight8800 kgReference
Front tire600/65R34Reference
Rear tire650/85R38Reference
Standard tires (ag)Front: 600/65R34. Rear: 650/85R38Reference
Length494 cmReference
Width263 cmReference
Height310 cmReference
Ground clearance60 cmReference
Front tread199 cmReference
Rear tread197 cmReference
8800 kgReference
Max Drawbar1999 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Max capacity14000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
