Tractor · 2006Unverified

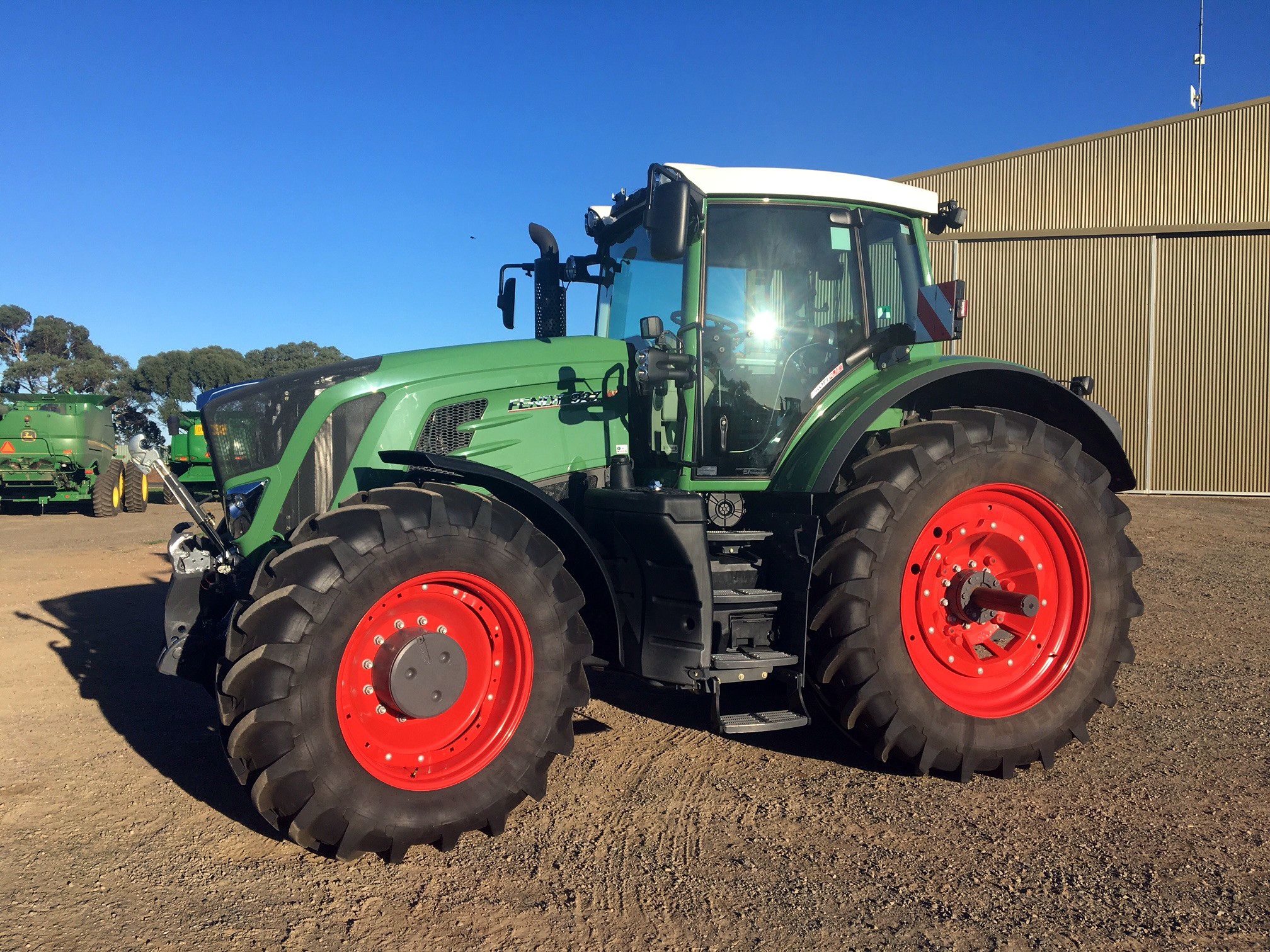

Fendt 927 Vario
Fendt 927 Vario — Model year 2006-20102010-20132013-2020 · 264 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
264 hp
Weight
10078 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Row-Crop tractorReference
Built in Marktoberdorf, GermanyReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heat and air-conditioning.Reference
Engine
Deutz 7.1L 6-cyl dieselReference
Engine (gross)196.9 kWReference
Engine (net)179.0 kWReference
Engine (max)205.1 kWReference
Deutz 2013 L06 4VReference
intercooled turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement7.1 LReference
Bore/Stroke108 x 130 mmReference
Rated Power (net)179.0 kWReference
Rated Power (gross)196.9 kWReference
Maximum Power (net)201.3 kWReference
Maximum Power (gross)205.1 kWReference
Rated RPM2200Reference
Torque1100.1 NmReference
Torque RPM1450Reference
Transmission
continously variable transmission (CVT)Reference
TransmissionFendt VarioReference
Typecontinously variable transmission (CVT)Reference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
Hydraulic system87.1 LReference
Typeload sensingReference
Capacity87.1 LReference
Pressure200.0 barReference
Valves4Reference
Total flow160.1 lpmReference
Total flow216.1 lpmReference
Rear TypeIVReference
Rear lift (at ends)8981 kgReference
Front lift (at ends)4082 kgReference
Rear PTOindependentReference
Rear PTO Type540E/1000Reference
Rear PTO Type1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Capacities
Fuel660.1 LReference
Max capacity14968 kgReference
Max capacity17962 kgReference
Dimensions
Wheelbase305 cmReference
Weight10078 kgReference
Front tire600/65R34Reference
Rear tire650/85R38Reference
Ag front600/65R34Reference
Ag rear650/85R38Reference
Length565 cmReference
Width275 cmReference
Height332 cmReference
Ground clearance48 cmReference
10078 kgReference
Electrical
Charging systemalternatorReference
Charging amps300Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
