Tractor · 2020Unverified

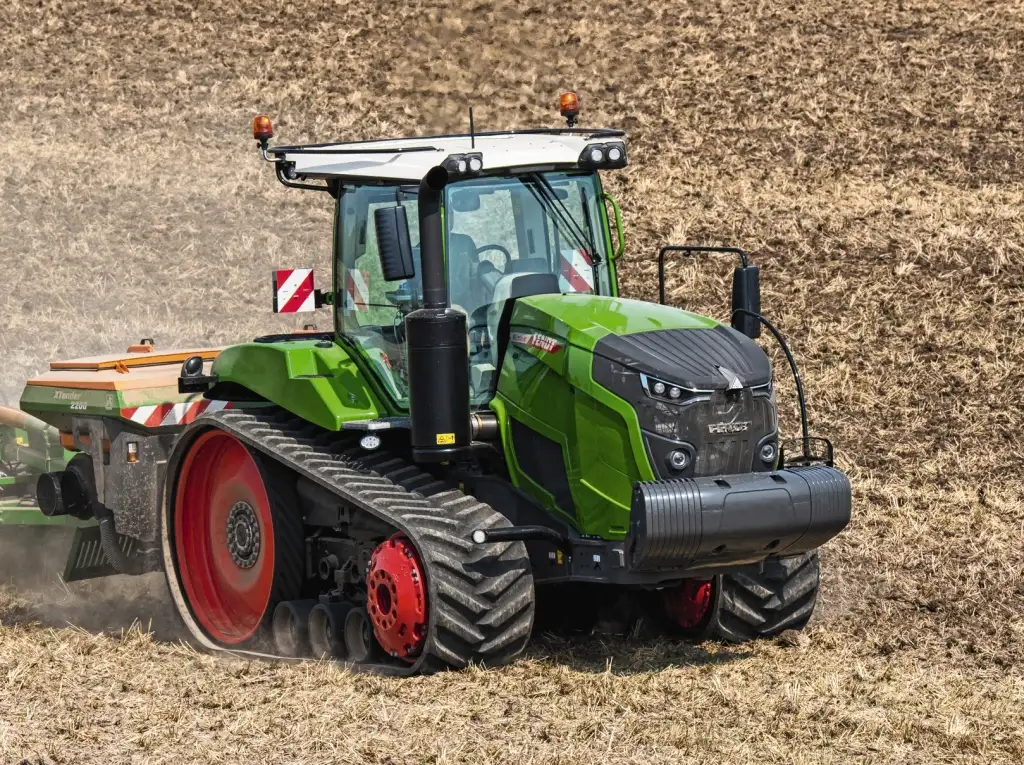

Fendt 938 Vario MT

Name: Fendt 938 Vario MT
Brand: Fendt

Fendt 938 Vario MT — 900 Vario Series · 374 hp. Reference specifications; pending source verification.

The Fendt 938 Vario MT is a tractor model with a rated output of 374 hp, positioning it among the higher-powered machines in its class. Manufactured in 2020, this model features a 7-cylinder turbocharged diesel liquid-cooled engine, coupled with a tracked undercarriage. The listed weight of the tractor falls within the range of 33443 to 33667 pounds. It is designed for use on areas of approximately 1,500 or more acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

374 hp

Weight

33443 to 33667 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

374 hp

Transmissions

Vario ML400T

Production years

2020-2020

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerFendt (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in Jackson, Minnesota, USAReference

DrivecrawlerReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 9.8L 7-cyl dieselReference

Engine (gross)278.9 kWReference

AGCO PowerReference

turbocharged dieselReference

7-cylinderReference

liquid-cooledReference

Displacement9.8 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IVReference

Rated Power (gross)278.9 kWReference

Rated RPM1450Reference

Torque1697.7 NmReference

Torque RPM1450Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-variable transmissionReference

TransmissionVario ML400TReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Capacities

Fuel681.3 LReference

Fuel813.8 LReference

Fuel972.7 LReference

Exhaust fluid (DEF)71.2 LReference

Max capacity18597 kgReference

PTO & Hydraulics

Hydraulic system124.9 LReference

Typeclosed centerReference

Capacity124.9 LReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow219.5 lpmReference

Pump flow439.1 lpmReference

SCV flow140.0 lpmReference

SCV flow170.3 lpmReference

Rear TypeIVN/IIIReference

Controlposition and draft controlReference

Rear lift (at ends)8618 kgReference

Rear lift (at 24"/610mm)7484 kgReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Rear PTO Type1000/1000E (1.75)Reference

Engine RPM1000@1650Reference

Engine RPM1000E@1225Reference

Dimensions

Wheelbase256 cmReference

Weight33443 to 33667 poundsReference

14-inch tracksReference

Length612 cmReference

Width250 cmReference

Width335 cmReference

Height (cab)349 cmReference

Height (exhaust)340 cmReference

Clearance (drawbar)50 cmReference

Front axle203 by 2562 mmReference

Front axle203 by 3375 mmReference

Gauge182 to 223 cmReference

Gauge182 to 304 cmReference

15169 kgReference

15271 kgReference

Max Drawbar3628 kgReference

Max Drawbar6804 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps300Reference

Batteries2Reference

Battery volts12Reference

Battery AH185Reference

Fendt 938 Vario MT Tracks

Width35 cmReference

Width40 cmReference

Width45 cmReference

Width50 cmReference

Width63 cmReference

Width76 cmReference

Width86 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
