Tractor · 2010Unverified

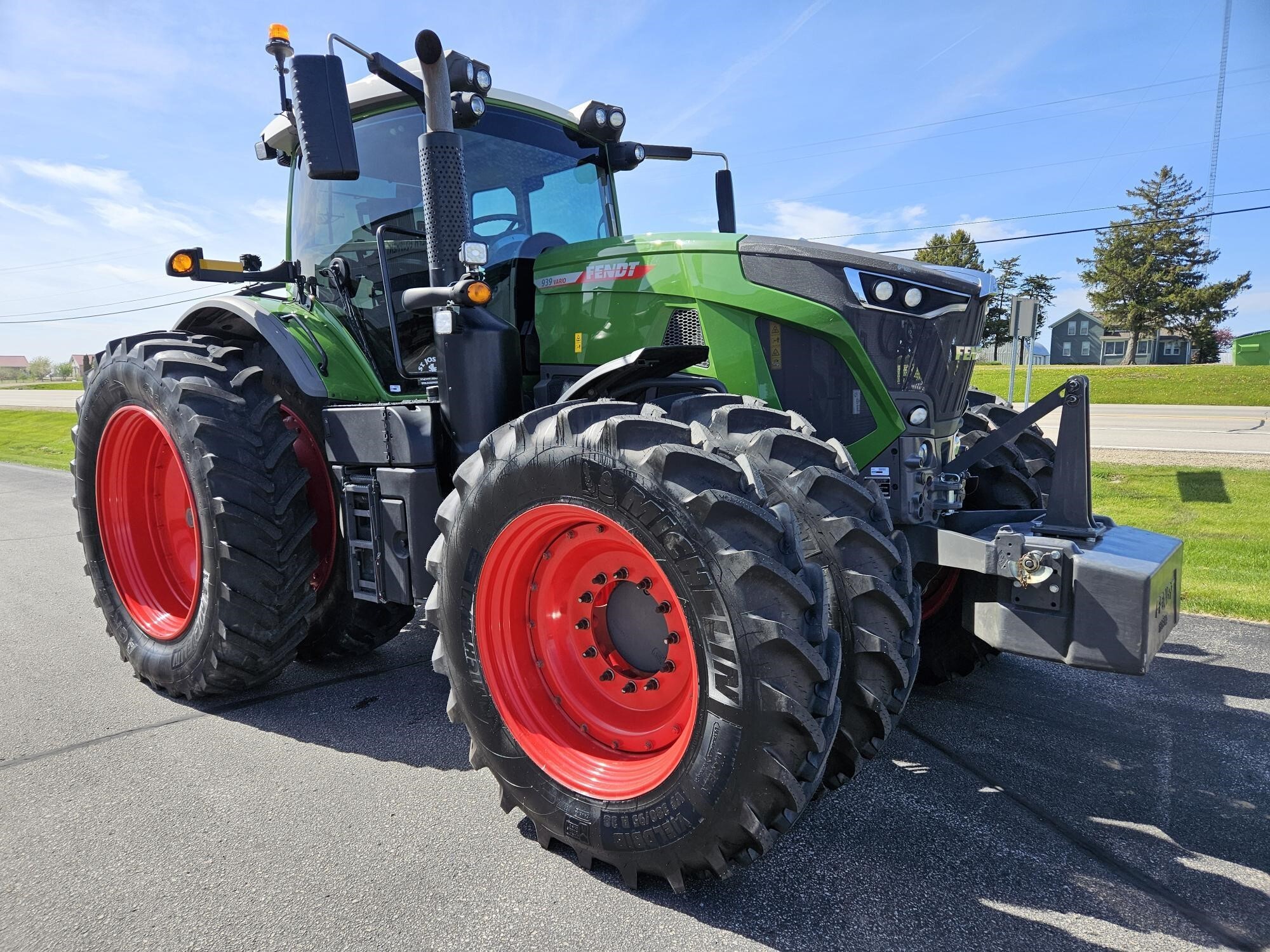

Fendt 939 Vario
Fendt 939 Vario — Model year 2010-20132013-20202020-2025 · 376 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
376 hp
Weight
10830 kg
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 7.8L 6-cyl dieselReference
Fuel tank599.9 LReference
Exhaust fluid (DEF)60.2 LReference
Engine (gross)280.4 kWReference
Engine (net)268.5 kWReference
Engine (max)295.3 kWReference
Deutz TCD 7.8Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.8 LReference
Bore/Stroke110 x 136 mmReference
EmissionsTier IV InterimReference
Rated Power (net)268.5 kWReference
Rated Power (gross)280.4 kWReference
Maximum Power (net)290.8 kWReference
Maximum Power (gross)295.3 kWReference
Rated RPM2200Reference
Torque1547.2 NmReference
Torque RPM1450Reference
Starter typeelectricReference
Transmission
continuously-variable transmissionReference
TransmissionVario ML260Reference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Valves4 to 8Reference
Pump flow160.1 lpmReference
Pump flow216.1 lpmReference
Rear lift12032 kgReference
Front lift5659 kgReference
Rear PTOindependentReference
Rear PTO Type540E/1000Reference
Rear PTO Type1000/1000EReference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase305 cmReference
Weight10830 kgReference
Front tire600/70R34Reference
Rear tire710/75R42Reference
Standard tires (ag)Front: 600/70R34. Rear: 710/75R42Reference
Optional tires (ag)Front: 600/65R34. Rear: 800/70R38Reference
Optional tires (ag)Front: 710/60R34. Rear: 900/60R42Reference
Length565 cmReference
Width275 cmReference
Height (cab)337 cmReference
Ground clearance48 cmReference
10830 kgReference
Max Drawbar1999 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps300Reference
Battery volts12Reference
Capacities
Max capacity18000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
