Tractor · 2020Unverified

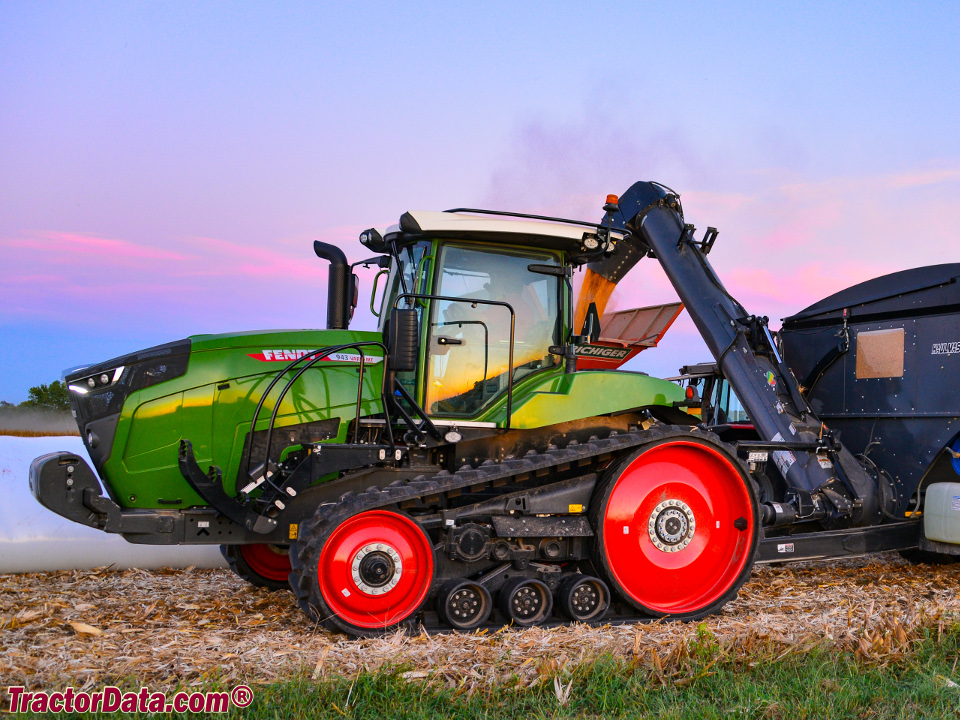

Fendt 943 Vario MT
Fendt 943 Vario MT — 900 Vario Series · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Weight
33443 to 33667 pounds
Hover a source tag to verify
Overview
ManufacturerFendt (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
DrivecrawlerReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 9.8L 7-cyl dieselReference
Engine (gross)317.0 kWReference
AGCO PowerReference
turbocharged dieselReference
7-cylinderReference
liquid-cooledReference
Displacement9.8 LReference
Bore/Stroke111 x 145 mmReference
EmissionsTier IVReference
Rated Power (gross)317.0 kWReference
Rated RPM1450Reference
Torque1920.1 NmReference
Torque RPM1450Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-variable transmissionReference
TransmissionVario ML400TReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
Capacities
Fuel681.3 LReference
Fuel813.8 LReference
Fuel972.7 LReference
Exhaust fluid (DEF)71.2 LReference
Max capacity18597 kgReference
PTO & Hydraulics
Hydraulic system124.9 LReference
Typeclosed centerReference
Capacity124.9 LReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow219.5 lpmReference
Pump flow439.1 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear TypeIVN/IIIReference
Controlposition and draft controlReference
Rear lift (at ends)8618 kgReference
Rear lift (at 24"/610mm)7484 kgReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Rear PTO Type1000/1000E (1.75)Reference
Engine RPM1000@1650Reference
Engine RPM1000E@1225Reference
Dimensions
Wheelbase256 cmReference
Weight33443 to 33667 poundsReference
14-inch tracksReference
Length612 cmReference
Width250 cmReference
Width335 cmReference
Height (cab)349 cmReference
Height (exhaust)340 cmReference
Clearance (drawbar)50 cmReference
Front axle203 by 2562 mmReference
Front axle203 by 3375 mmReference
Gauge182 to 223 cmReference
Gauge182 to 304 cmReference
15169 kgReference
15271 kgReference
Max Drawbar3628 kgReference
Max Drawbar6804 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps300Reference
Batteries2Reference
Battery volts12Reference
Battery AH185Reference
Fendt 943 Vario MT Tracks
Width35 cmReference
Width40 cmReference
Width45 cmReference
Width50 cmReference
Width63 cmReference
Width76 cmReference
Width86 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
