Tractor · 1952Unverified

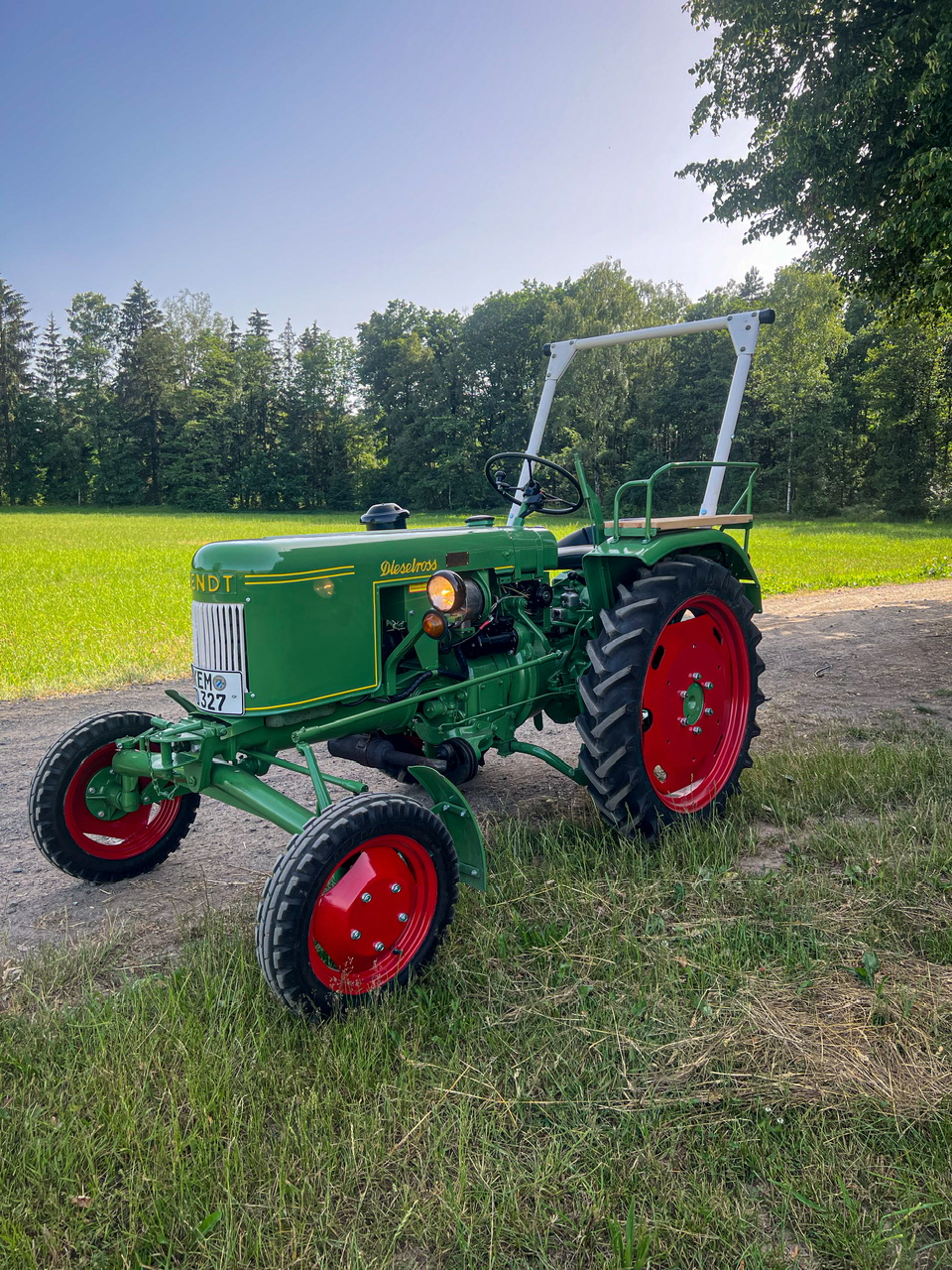

Fendt Dieselross F12
Fendt Dieselross F12 · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
1149 kg
Hover a source tag to verify
Overview
ManufacturerFendtReference
Two-wheel driveReference
Open operator station.Reference
Engine
MWM 0.9L 1-cyl dieselReference
MWM 1.0L 1-cyl dieselReference
Fuel tank15.1 LReference
Engine8.9 kWReference
MWM KD12EReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke95 x 120 mmReference
Power8.9 kWReference
Compression18.2:1Reference
Rated RPM2000Reference
MWM AKD12EReference
Displacement1.0 LReference
Bore/Stroke98 x 120 mmReference
Compression19.5:1Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Dimensions
Weight1149 kgReference
Front tire4.00-15Reference
Rear tire7-30Reference
Ag front4.00-15Reference
Ag rear7-30Reference
Length262 cmReference
Width147 cmReference
Height150 cmReference
Ground clearance38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
