Tractor · 1958Unverified

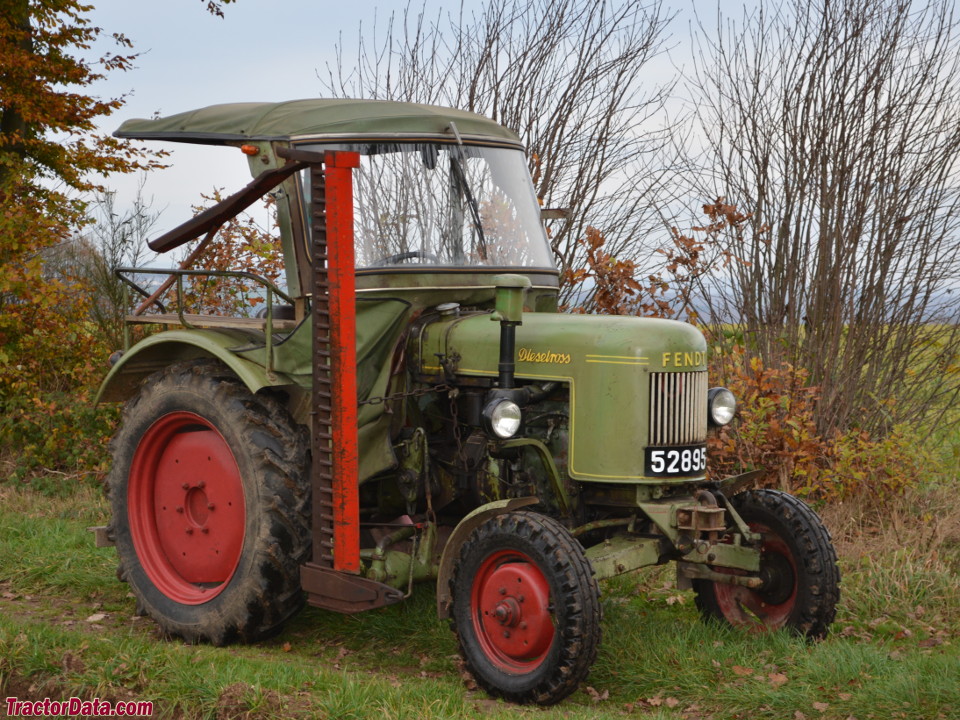

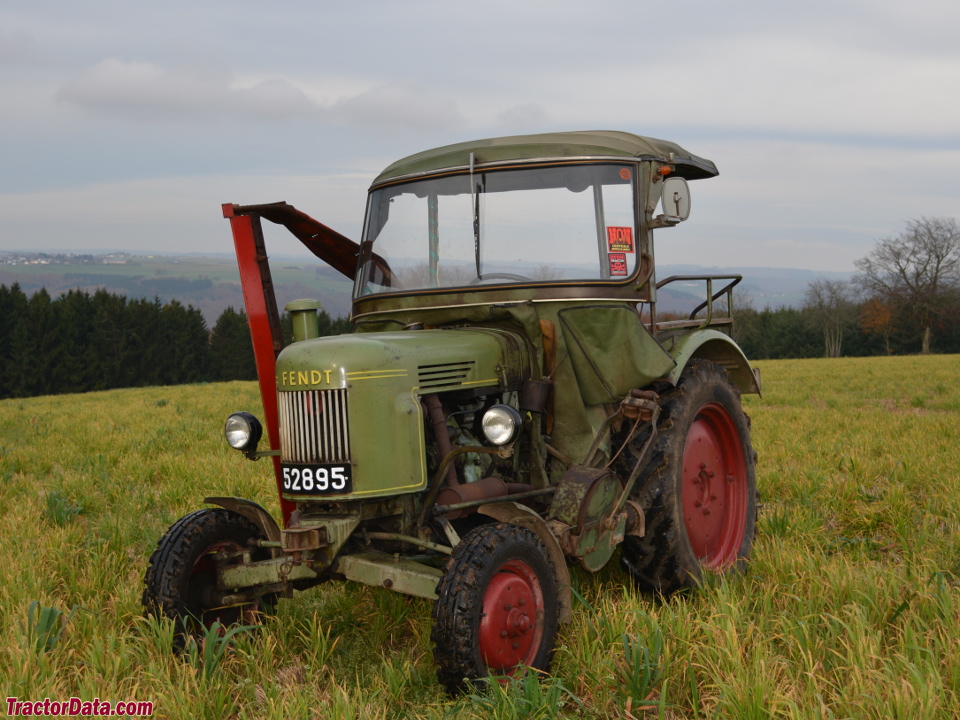

Fendt Dieselross F237
Fendt Dieselross F237 — Standard-tread tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Hover a source tag to verify
Overview
ManufacturerFendtReference
Standard-tread tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Variants
FW237liquid-cooledReference
FL237air-cooledReference
Engine
MWM 1.7L 2-cyl dieselReference
Engine17.9 kWReference
MWM MWM KD12ZReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke95 x 120 mmReference
Power17.9 kWReference
Compression18.2:1Reference
Rated RPM1980Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
